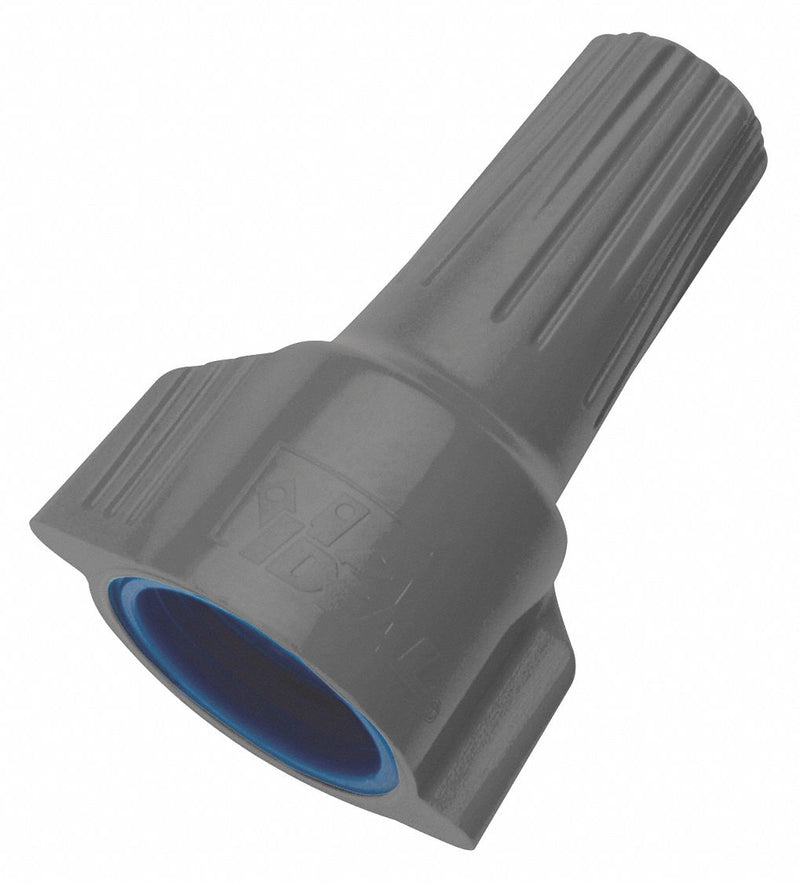

Ideal 30-1163P Twist-On Wire Connectors, Blue/Gray, Wire Sizes 8 AWG – 8 AWG, 600 V, 15, PK

Ideal 30-1163P Twist-On Wire Connectors, Blue/Gray, Wire Sizes 8 AWG – 8 AWG, 600 V, 15, PK

UPC: 783250756360 | Harmonization / Schedule B : 8536.90.8585

Country of Origin: United States | Shipping Weight: 0.36 lbs

$40.95 - $40.95
$40.95
$40.95 - $40.95
$40.95

Twist-On Wire Connectors, Color Blue/Gray, For Conductor Material Copper, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Combination (3) 14 AWG, Maximum Wire Combination (5) 10 AWG, Contact Finish Zinc, Contact Material Steel, UL 94 Flammability Rating V-2, Maximum Conductors 6, Standards CE, CSA Certified, UL Listed, Wire Connector Style Wing, Fill Material Silicone, Insulation Material Thermoplastic Polyester, Maximum Single Wire Size 8 AWG

Maximum Wire Size 6 AWG
Minimum Wire Size 16 AWG
Height 1.59 in
Width 1.06 in
Overall Width 1.06 in
Strip Length 5/8 in
For Minimum Wire Size - Solid 16 AWG
Maximum Single Wire Size 8 AWG
Minimum Single Wire Size 8 AWG
Overall Height 1.59 in
Type Twist-On
Color Blue, Gray
Insulation Material Thermoplastic Polyester
Maximum Voltage 600 V
Minimum Wire Combination (3) 14 AWG
Maximum Wire Combination (5) 10 AWG
Maximum Operating Temperature 221 Degrees F
UL 94 Flammability Rating V-2
Standards CE, CSA Certified, UL Listed
Application Wide Range
Series 63
Special Features Easy to Apply, Pre-Filled Twist-on Wire Connectors, Eliminates the Need for Heat-Shrink or Excessive Taping, Swept Wing Design is Built for Comfort and Efficiency
Maximum Conductors 6
For Conductor Material Copper
Fill Material Silicone
Material Steel
Termination Style Twist-On
Connector Type 63
Contact Material Steel
Direct Burial Rated No
Contact Finish Zinc
Wire Connector Style Wing
Country of Origin United States
