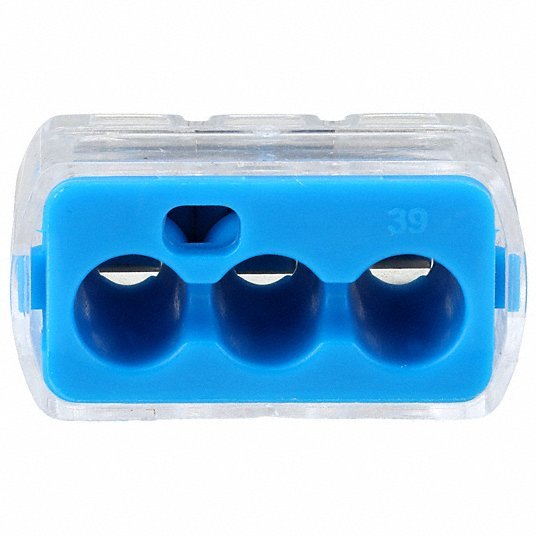

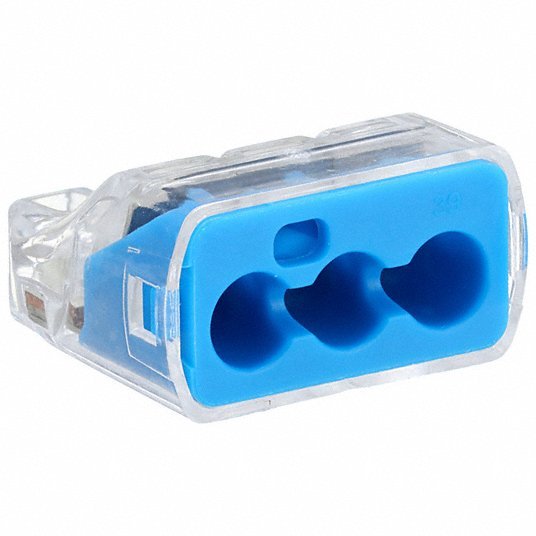

Ideal 30-1039 Push-In Wire Connector In-Sure™ Series, 3 Port, 14 AWG – 10 AWG Solid Wire Size Range, 30 A PK50

UPC: 783250693641 | Harmonization / Schedule B : 8536.90.4000

Country of Origin: United States | Shipping Weight: 0.45 lbs

$28.09 - $28.09
$28.09
$28.09 - $28.09
$28.09
Push-In Wire Connector, Color Blue, For Conductor Material Copper, Tin-Plated Copper, For Minimum Wire Size - Stranded 12 AWG, For Maximum Wire Size - Stranded 10 AWG, Housing Material Polycarbonate, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Overall Height 0.45 in, Overall Length 0.78 in, Overall Width 0.86 in, Connector Type Push-In, UL 94 Flammability Rating V-2, Number of Ports 3, RoHS Compliant Yes, Standards CSA, UL

Type Push-In
Color Blue
Insulation Material Polycarbonate
Material Copper
Finish Tin Plated
Maximum Voltage 600 V
Current 30 A
Maximum Operating Temperature 221 Degrees F
Number of Ports 3
Maximum Conductors 3
Wire Type Copper - solid and stranded, Stranded tin-bonded copper
For Conductor Material Copper, Tin-Plated Copper
Compatible with Product Type Twist-On Wire Connector
UL 94 Flammability Rating V-2
RoHS Compliant Yes
Standards CSA, UL
Description / Special Features Polycarbonate Housing with Ergonomic Grip
Special Features Approved For Bonding And Grounding Applications, Clear Shell Gives Visual Verification Of Connection, Compact Size Makes Installation Easy, Ergonomic Design For Easy Grip And Comfortable Installation, Low Insertion Force For Fast And Easy Connections
