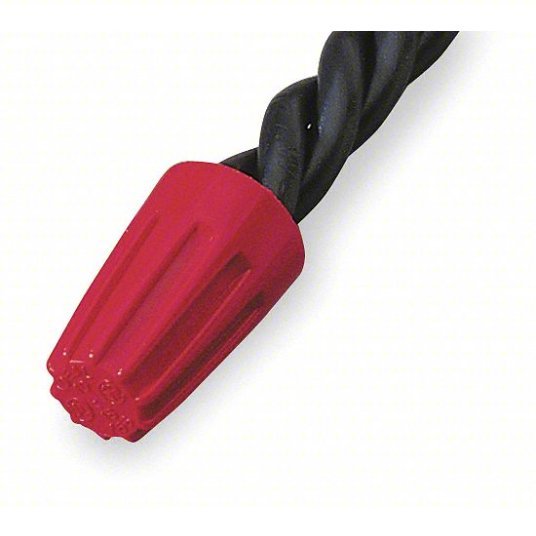

Ideal 30-076 Twist On Wire Connector Red, 18 AWG – 6 AWG Twist-On Wire Size Ranges, 100 PK

UPC: 783250300761 | Harmonization / Schedule B : 8546.90.0000

Country of Origin: | Shipping Weight:

$31.54 - $31.54
$31.54
$31.54 - $31.54
$31.54
Twist On Wire Connector, Color Red, For Conductor Material Copper, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Combination (2) 14 AWG, Maximum Wire Combination (4) 12 AWG, Contact Material Steel, UL 94 Flammability Rating V-2, Maximum Conductors 6, Standards CSA Certified, UL Listed, Wire Connector Style Standard, Insulation Material Thermoplastic Polyester, Maximum Single Wire Size 6 AWG, Minimum Single Wire Size 18 AWG, Overall Height 1.06 in
Color Red
Series 76B
Max. Voltage 600V AC
Wire Connector Style Standard
Min. Wire Combination (2) 14 AWG
Max. Wire Combination (2) 10 AWG with (2) 12 AWG
Application General Purpose
Item Twist On Wire Connector
Standards CSA Certified, UL Listed
Connector Type 76B
Max. Temp. 221 Degrees F
Maximum Operating Temperature 221 Degrees F
Insulation Material Thermoplastic Polyester
Minimum Wire Combination (2) 14 AWG
UL 94 Flammability Rating V-2
Special Features Excellent for Fine Stranded Wire Applications, Fixed, Square-Wire Spring for a Grip That will Last, Positive Grip Shell That is Perfect to Twist-on With Fingers, Refined Range to Handle All Common Applications
Maximum Conductors 6
For Conductor Material Copper
High Temperature Application No
RoHS Compliant Yes
Contact Material Steel
Maximum Wire Combination (4) 12 AWG
Maximum Voltage 600 V
Maximum Wire Gauge 6 AWG
Minimum Wire Gauge 18 AWG
Twist-On Style Non-Wing
Termination Method Twist-On
Maximum Rated Voltage 600V
