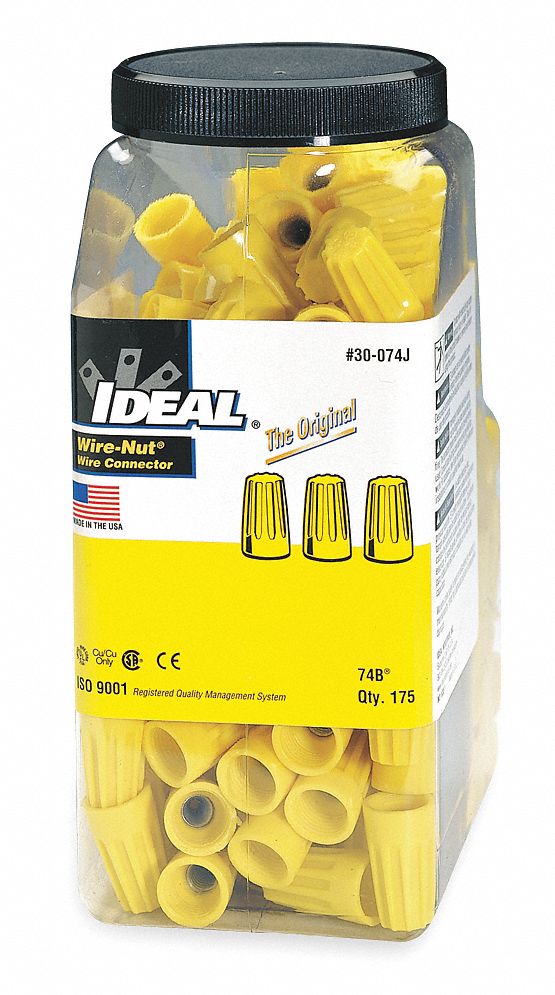

Ideal 30-074J Twist-On Wire Connectors, Yellow, Wire Sizes 14 AWG – 8 AWG, 600 V, 175, PK

Ideal 30-074J Twist-On Wire Connectors, Yellow, Wire Sizes 14 AWG – 8 AWG, 600 V, 175, PK

UPC: 783250216772 | Harmonization / Schedule B : 8546.90.0000

Country of Origin: United States | Shipping Weight: 0.95 lbs

$35.57 - $35.57
$35.57
$35.57 - $35.57
$35.57

Twist-On Wire Connectors, Color Yellow, For Conductor Material Copper, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Combination (2) 18 AWG, Maximum Wire Combination (4) 14 AWG with (1) 18 AWG, Contact Finish Zinc, Contact Material Steel, UL 94 Flammability Rating V-2, Maximum Conductors 6, Standards CSA Certified, UL Listed, Wire Connector Style Standard, Insulation Material Polypropylene, Maximum Single Wire Size 8 AWG

Maximum Wire Size 12 AWG
Minimum Wire Size 18 AWG
Height 0.95 in
Width 0.55 in
Strip Length 7/16 in
Overall Width 0.55 in
For Minimum Wire Size - Solid 18 AWG
Minimum Single Wire Size 14 AWG
Maximum Single Wire Size 8 AWG
Overall Height 0.95 in
Type Twist-On
Color Yellow
Insulation Material Thermoplastic Polyester
Maximum Voltage 600 V
Minimum Wire Combination (2) 18 AWG
Maximum Wire Combination (4) 14 AWG with (1) 18 AWG
Maximum Operating Temperature 221 Degrees F
UL 94 Flammability Rating V-2
RoHS Compliant Yes
Wire Connector Style Standard
Series 74B
Standards CSA Certified, UL Listed
Application General Purpose
Special Features Excellent for Fine Stranded Wire Applications, Fixed, Square-Wire Spring for a Grip That will Last, Positive Grip Shell That is Perfect to Twist-on With Fingers, Refined Range to Handle All Common Applications
For Conductor Material Copper
Maximum Conductors 6
Material Steel
Cable Manager Type Cable Holder
Twist-On Style Non-Wing
Termination Style Twist-On
Contact Material Steel
Contact Finish Zinc
Connector Type 74B
Country of Origin United States
