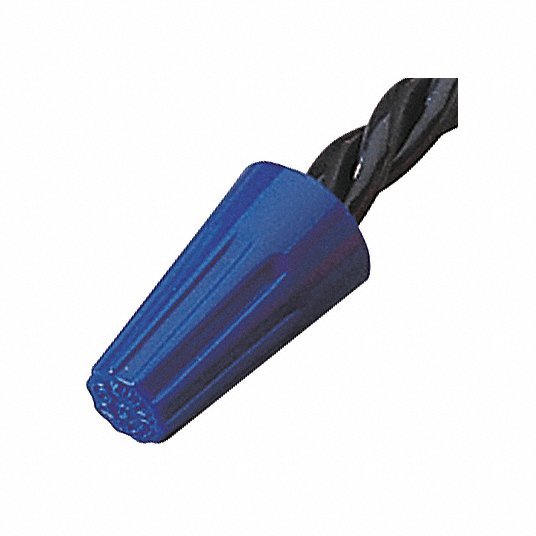

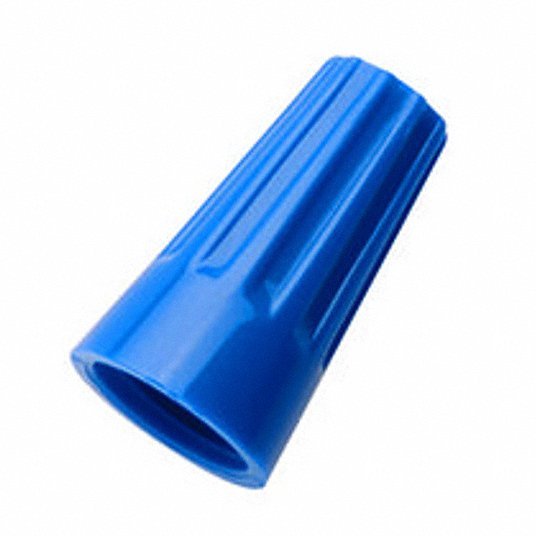

Ideal 30-072 Twist On Wire Connector, 22 AWG to 14 AWG, 300 V, Standard Style, Blue, 100 PK
UPC: 783250300723 | Harmonization (Schedule B): 8546.90.0000
SKU KV6YH35
Original price
$15.65
-
Original price
$15.65
Original price
$15.65
$15.65
-
$15.65
Current price
$15.65
Twist On Wire Connector, Color Blue, For Conductor Material Copper, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 300 V, Minimum Wire Combination (2) 22 AWG, Maximum Wire Combination (3) 16 AWG, Contact Material Steel, UL 94 Flammability Rating V-2, Maximum Conductors 5, Standards CE, CSA Certified, UL Listed, Wire Connector Style Standard, Insulation Material Thermoplastic, Maximum Single Wire Size 14 AWG, Minimum Single Wire Size 22 AWG, Overall Height 0.7 in
| Color | Blue |
| Series | 72B |
| Max. Voltage | 300V AC |
| Wire Connector Style | Standard |
| Min. Wire Combination | (2) 22 AWG |
| Max. Wire Combination | (3) 16 AWG |
| Application | General Purpose |
| Item | Twist On Wire Connector |
| Standards | CE, CSA Certified, UL Listed |
| Connector Type | 72B |
| Max. Temp. | 221 Degrees F |
| Maximum Wire Combination | (3) 16 AWG |
| Maximum Operating Temperature | 221 Degrees F |
| UL 94 Flammability Rating | V-2 |
| Minimum Wire Combination | (2) 22 AWG |
| Maximum Conductors | 5 |
| High Temperature Application | No |
| Maximum Voltage | 300 V |
| Contact Material | Steel |
| Special Features | Fixed, Square-Wire Spring for a Grip That will Last, Positive Grip Shell That is Perfect to Twist-on With Fingers |
| For Conductor Material | Copper |
| Insulation Material | Thermoplastic |
| Product Name | Wire Connector |
| Product Color | Blue |
| Product Type | Cable Tying |
| Cable Manager Type | Cable Binder |
| Twist-On Style | Non-Wing |
| Maximum Rated Voltage | 300V |
| Termination Method | Twist-On |
| Minimum Wire Gauge | 22 AWG |
| Maximum Wire Gauge | 14 AWG |
| Package Quantity | 100 |
