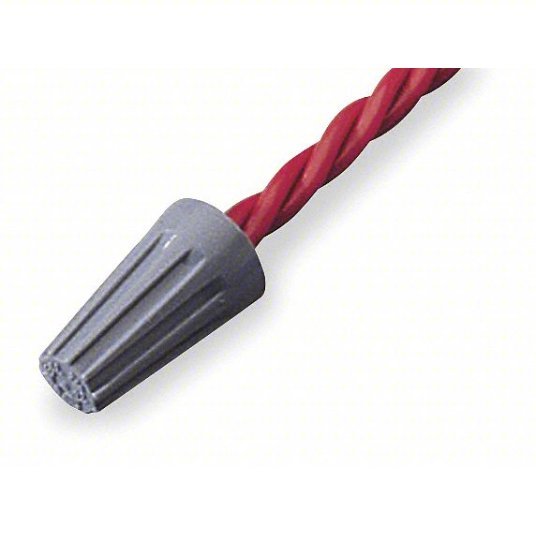

Ideal 30 - 071 Twist On Wire Connector Gray, 22 AWG – 16 AWG Twist - On Wire Size Ranges,100 PK - KVM Tools Inc.KV6YH34

Ideal 30-071 Twist On Wire Connector Gray, 22 AWG – 16 AWG Twist-On Wire Size Ranges,100 PK

UPC: 783250300716 | Harmonization / Schedule B : 8546.90.0000

Country of Origin: | Shipping Weight:

$15.19 - $15.19
$15.19
$15.19 - $15.19
$15.19
Twist On Wire Connector, Color Gray, For Conductor Material Copper, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 300 V, Minimum Wire Combination (2) 22 AWG, Maximum Wire Combination (2) 16 AWG, Contact Material Steel, UL 94 Flammability Rating V-2, Maximum Conductors 5, Standards CE, CSA Certified, UL Listed, Wire Connector Style Standard, Insulation Material Thermoplastic, Maximum Single Wire Size 16 AWG, Minimum Single Wire Size 22 AWG, Overall Height 0.58 in.

Color Gray
Series 71B
Max. Voltage 300V AC
Wire Connector Style Standard
Min. Wire Combination (2) 22 AWG Stranded
Max. Wire Combination (2) 16 AWG
Application General Purpose
UPC 783250300716
Standards CE, CSA Certified, UL Listed
Connector Type 71B
Max. Temp. 221 Degrees F
Maximum Voltage 300 V
Insulation Material Thermoplastic
For Conductor Material Copper
Maximum Operating Temperature 221 Degrees F
Contact Material Steel
Minimum Wire Combination (2) 22 AWG
Maximum Wire Combination (2) 16 AWG
Special Features Fixed, Square-Wire Spring for a Grip That will Last, Positive Grip Shell That is Perfect to Twist-on With Fingers
UL 94 Flammability Rating V-2
Maximum Conductors 5
Product Color Gray
Cable Manager Type Protector
Product Type Cable Protection
Additional Information Flame-retardant shell, Reusable
Product Name 30-071 Cable Protector
Certifications & Standards UL, CSA
Termination Method Twist-On
Maximum Rated Voltage 300V
Twist-On Style Non-Wing
Maximum Wire Gauge 16 AWG
Minimum Wire Gauge 22 AWG
