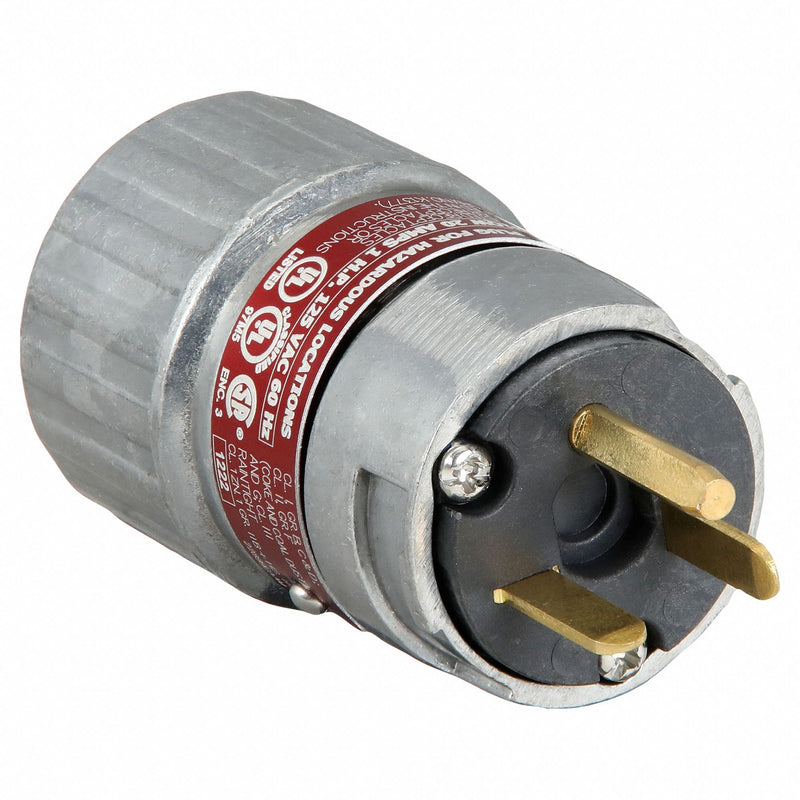

Plug, Connection Orientation Angled, Current Rating 20 A, Grounding Grounded, Horsepower Rating 1 hp, Housing Color Gray, IP Rating Not Rated, NEMA Plug Configuration 5-20P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized No, Resistance Properties Corrosion Resistant, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Hazardous Location Specification Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2
| Body Length |
6.625 in |
| Maximum Wire Size |
10 AWG |
| Overall Length |
6.625 in |
| Wire Size |
#10 AWG, #12 AWG, or #14 AWG |
| Width |
2.375 in |
| Length |
6.625 in |
| Size |
6.625 in x 2.375 in x 1.875 in |
| Each - Width |
2.375 in |
| Height |
1.875 in |
| Dimensions |
6.625 in x 2.375 in x 1.875 in |
| For Maximum Cable Diameter |
0.635 in |
| For Minimum Cable Diameter |
0.54 in |
| Wire Rope Length |
6.625 in |
| Voltage |
120 V AC |
| NEMA Rating |
3, 4, 4X |
| Amps |
20 A |
| Standards |
UL E91049 |
| Number of Wires |
3 |
| Number of Poles |
2 |
| NEMA Type |
5-20P |
| Material |
Copper-Free Aluminum |
| Hz |
60 |
| Horsepower Rating |
1 hp |
| Wire Connection Type |
Screw Terminals |
| Number of Blades |
3 |
| Wiring Style |
Standard |
| Polarized |
No |
| Grounding |
Grounded |
| Connection Orientation |
Angled |
| For Location |
Indoor, Outdoor |
| Voltage Rating |
125V AC |
| NEMA Enclosure Rating |
3, 4, 4X |
| Hazardous Location Specification |
Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2 |
| Current Rating |
20 A |
| Compatible with Series |
UGP |
| Housing Color |
Gray |
| Housing Material |
Aluminum |
| IP Rating |
Not Rated |
| Housing Material Finish |
Baked Powder Epoxy Coated |
| Phase |
Single |
| NEMA Plug Configuration |
5-20P |
| Resistance Properties |
Corrosion Resistant |
| For Environment |
Corrosive, Damp, Hazardous Location, Wet |
| Special Features |
ACCEPTOR plugs conform to NEMA configurations and can be used with standard receptacles in non-hazardous areas to maximize equipment utilization. The system's "turn to engage" feature locks in plug and can be used to prevent accidental disengagement of cr |
| Receptacle Type |
Delayed Action |
| Hazardous Rating(s) |
Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups F, G;Class III, Divisions 1 & 2 |
| Application |
Petroleum refineries, chemical plants, wet/damp areas, corrosive environments, petroleum plants, grain elevators/feed mills, flour and feed mills, and indoor or outdoor locations |
| Series |
U-Line(TM), Ark-Gard |
| Type |
Straight Blade |
| Color |
Gray |
| Amperage Rating |
20 A |
| Power Indicating Light |
No |
| Shrouded |
Yes |
| Country of Origin |
United States |
