Hubbell SEC50GA Liquid Tight Cord Connector Nylon, 1/2 in MNPT, 0.17 in to 0.45 in, Gray - KVM Tools Inc.KV2DPE5

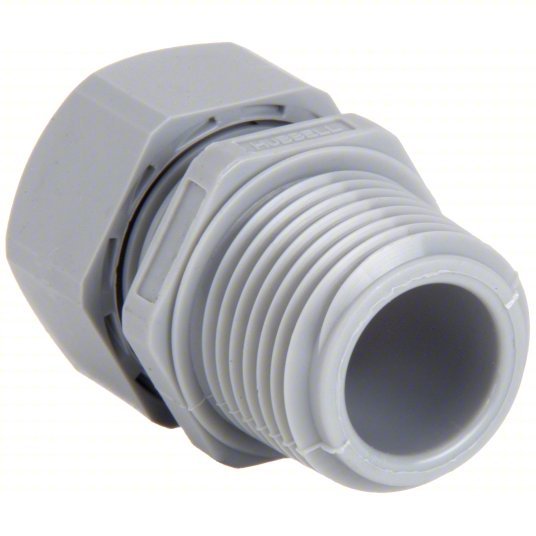

Hubbell SEC50GA Liquid Tight Cord Connector Nylon, 1/2 in MNPT, 0.17 in to 0.45 in, Gray

UPC: 783585018102 | Harmonization / Schedule B : 8547.20.0000

Country of Origin: | Shipping Weight:

$5.19 - $5.19
$5.19
$5.19 - $5.19
$5.19
Liquid Tight Cord Connector, Cord Dia. Range 0.17 in to 0.45 in, Box Connection 1/2 in MNPT, Material - Cord Connector Nylon, External Strain Relief Material No External Strain Relief, Gland Color Code No Code, Body Color - Cord Connector Gray, Number of Cords 1, Style - Connector Straight, Strain Relief Type No External Strain Relief, External Strain Relief Length No External Strain Relief, Length - Box to End of Connector 1 11/16 in, Insulated Yes, Standards CSA C22.2 No. 18, UL 514B, VDE
Style - Connector Straight
Male/Female Male
Material Nylon
Color Gray
Box Connection 1/2 in MNPT
For Use With Kellems Wire Management
Material - Cord Connector Nylon
Material - External Strain Relief No External Strain Relief
Gland Color Code No Code
Liquid Tight / Dust Tight Liquid Tight
Number of Cords 1
Standards CSA C22.2 No. 18, UL 514B, VDE
Connector Type Straight
Body Color - Cord Connector Gray
Insulated Yes
Hazardous Location Rating Not Rated
Strain Relief Type No External Strain Relief
Maximum Operating Temperature 225 Degrees F
Thread Gender Male
Connection Orientation Straight
For Minimum Cable OD 0.17 in
Liquid Tight Yes
Compatible Conduit Type Liquid Tight Cord Connector
Grommet Color Code No Code
Body Material Nylon
Collar Material Nylon
Minimum Operating Temperature -22 Degrees F
Series Low Profile NPT
IP Rating IP66
Environmental Rating Not Flammable
Body Color Gray
Thread Type NPT Thread
For Maximum Cable OD 0.45 in
Thread-Type NPT Thread
Cord Connector Body Style Straight Male
Operating temperature -30°C to 100°C
Material/Style Nylon Low Profile
Product Type Cord Connectors
Certifications UL 514B, CSA C22.2 No. 18
Sealing Grommet Material Neoprene
Protection Class IP68
Flammability UL 94 V-0
OEM Brand Name Hubbell Wiring Device-Kellems
Nema Rating IP66
Type Connector
Application Straight Male Connector
Performance Environmental - Flammability - UL 94V-2 Environmental - Operating Temperatures - -22°F to 225°F (-30°C to 107°C) Environmental - Protection Class - IP66 Suitability
Material - Mounting Hardware Locknut or Tapped Opening
Item Type Low Profile Cord Connectors
Conductor Range 0.17-0.45 in (4.3-11.4 mm)
Environmental Conditions Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Industry Standard(s) UL Listed
Temperature Rating Minimum -22 Deg F to 225 Deg F (-30 Deg C to 107 Deg C)
Number Of Conductors Single
