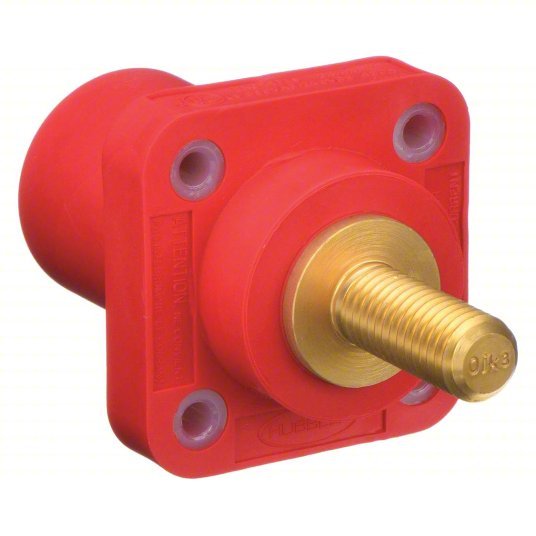

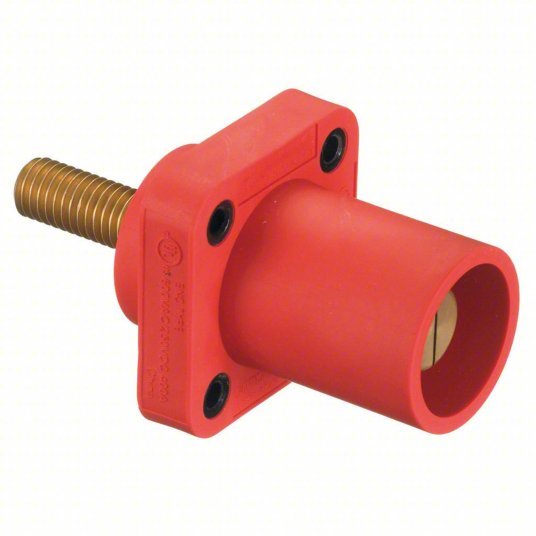

Hubbell HBLMRSR Receptacle For Female Connectors, 400A, Straight, Red, Square, Through Hole Mounting

UPC: 783585113043 | Harmonization / Schedule B : 8536.69.4051

Country of Origin: China | Shipping Weight: 0.55 lbs

$75.41 - $75.41
$75.41
$75.41 - $75.41
$75.41
Receptacle, Connection Orientation Straight, Current Rating 400 A, Gender Male, Housing Color Red, Housing Material Thermoplastic Elastomer, Maximum Wire Size 4/0 AWG, Minimum Wire Size 4 AWG, Phase Single, Voltage Rating 250V DC, 600V AC, Contact Material Brass, End Type Taper Nose, Flange Shape Square, NEMA Enclosure Rating 12, 3R, 4X, Standards ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed, Terminal Connection Type Double Set Screw
Series 16
Amps AC 400 A
Amps AC/DC 400AC/DC
NEMA Rating 12K, 3R, 4X
Terminal Connection Threaded Stud
Single Pole Device Style Taper Nose
Cable Range N/A
Color Red
Voltage Rating 250V DC, 600V AC
Material Thermoplastic Elastomer
Male/Female Male
Mounting Panel
Conductor Material Brass
Standards ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Connection Orientation Straight
Gender Male
Current Rating 400 A
NEMA Enclosure Rating 12, 3R, 4X
Receptacle Gender For Female Connectors
Includes Mounting Hardware Yes
End Type Taper Nose
Mounting Style Through Hole Mounting
Terminal Connection Type Double Set Screw
Contact Material Brass
UL 94 Flammability Rating HB
For Location Indoor
Housing Material Thermoplastic Elastomer
Phase Single
Flange Shape Square
Compatible with Series 16
Housing Color Red
Current / Amperage Rating 400 A
Connectivity Screw Terminals
Performance Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17 Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #4 to 4/0 AWG
Wattage 240000
Style Stud Type, Through Hole Mounting, Male
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Amperage Rating 400 A
Voltage Rating Description 600V AC/DC
Application High Ampacity Connections
Number Of Poles 1-Pole
Industry Standard(s) National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Material - Mounting Hardware Screw Mounting
Item Type Flanged Single
