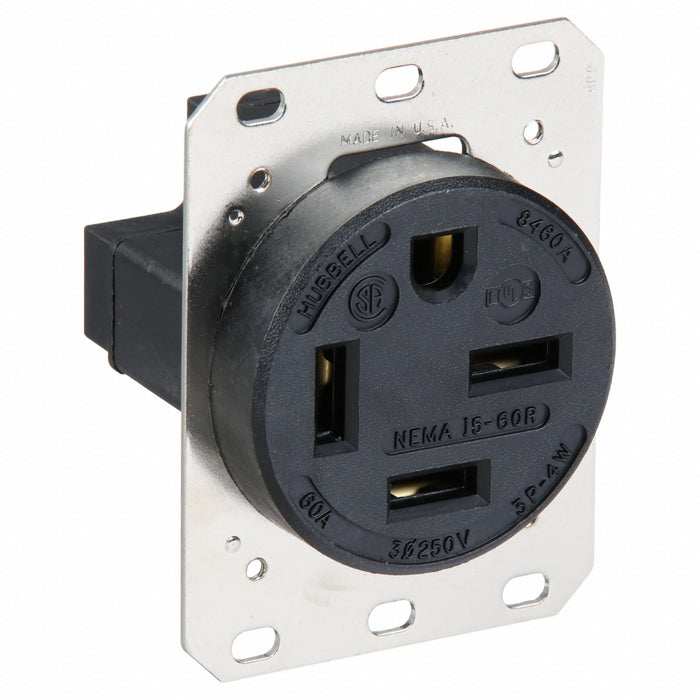

Hubbell HBL8460A Receptacle

Hubbell HBL8460A Straight Blade Receptacle, 15-60R, 60A, 250V AC, Single, 3-Pole, 4-Wire

UPC: 783585015187 | Harmonization / Schedule B : 8536.69.8000

Country of Origin: United States | Shipping Weight: 0.50 lbs

$242.26 - $242.26
$242.26
$242.26 - $242.26
$242.26

Hubbell HBL8460A heavy-duty 60A single straight blade receptacle, NEMA 15-60R, 250V AC, three-phase, 3-pole, 4-wire grounded. Flush mount with screw terminals (back and side wiring). Black thermoplastic polyester body, brass contacts, plated steel mounting strap. Federal Specification W-C-596 spec grade. Withstands 2,000V dielectric.

NEMA Receptacle Configuration 15-60R
Current Rating 60 A
Voltage Rating 250V AC
Phase Three
Number of Poles 3
Number of Wires 4
Wire Connection Type Screw Terminals
Grounding Grounded
Housing Color Black
Mount Type Flush
IP Rating IP20
Standards CSA Certified, NEMA WD-6, UL E2186
HP 10 hp
Material Thermoplastic Polyester
Contact Material Brass
Receptacle Grade Heavy Duty Spec Grade
Terminal Accommodation #12 AWG through #4 AWG copper wire only
Country of Origin United States
