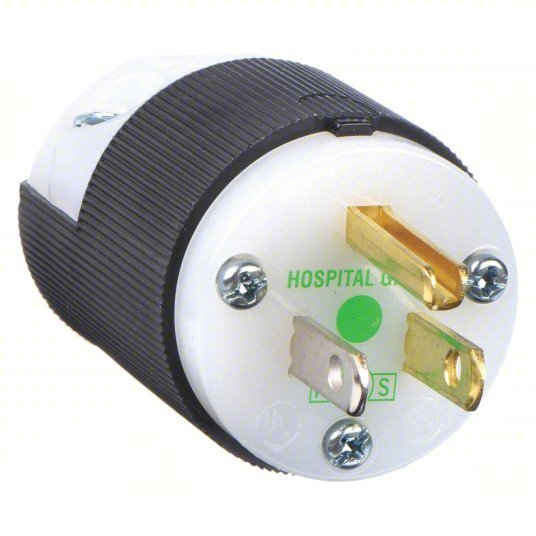

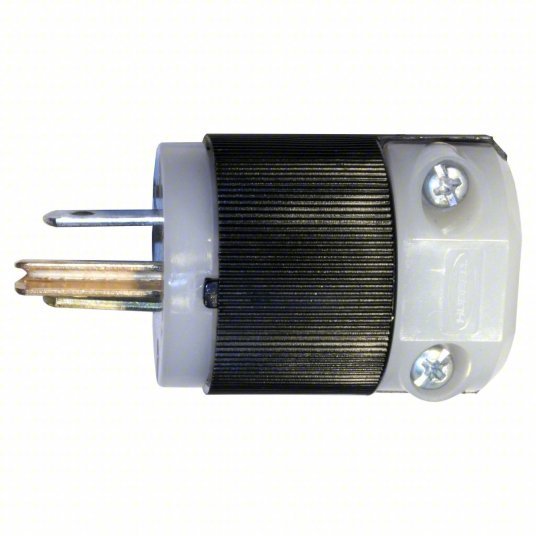

Hubbell HBL8215C Straight Blade Plug 5-15P, 15 A, 125V AC, Black/White, 2 Poles, Screw Terminals

UPC: 783585179209 | Harmonization (Schedule B): 8536.69.4020

SKU KV5A076
Original price $6.90 - Original price $6.90
Original price $6.90
$27.75
$27.75 - $27.75
Current price $27.75
Straight Blade Plug, Connection Orientation Straight, Current Rating 15 A, Grounding Grounded, Horsepower Rating 1/2 hp, Housing Color Black, White, IP Rating IP20, NEMA Plug Configuration 5-15P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Corrosion Resistant, UL 94 Flammability Rating HB, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 0.72 in, For Minimum Cable Diameter 0.23 in
Item Straight Blade Plug
Wiring Style Standard
Grade - Plugs and Receptacles Hospital
Amps - Plugs and Receptacles 15 A
Voltage - Plugs and Receptacles 125V AC
NEMA Plug Configuration - Plugs and Receptacles 5-15P
Number of Wires 3
Phase - Plugs and Receptacles 1
Antimicrobial No
Color Black/White
Number of Poles 2
Phase Single
Special Features Corrosion resistant
Voltage 125VAC
Grade Hospital Grade
HP 0.5
Material Nylon
IP Rating IP20
Color - Plugs and Receptacles Black/White
NEMA Configuration 5-15
Amps 15
Standards CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, UL 498 File E2186
Corrosion Resistant Yes
Number of Blades 3
Horsepower Rating 1/2 hp
Voltage Rating 125V AC
Resistance Properties Corrosion Resistant
Grounding Grounded
Housing Color Black, White
Wire Connection Type Screw Terminals
Insulation Material Nylon
Housing Material Finish Nickel Plated
Housing Material Nylon
Current Rating 15 A
NEMA Plug Configuration 5-15P
Connection Orientation Straight
Power Indicating Lights Without Power Indicating Lights
Polarized Yes
Maximum Operating Temperature 75 Degrees C
UL 94 Flammability Rating HB
Minimum Operating Temperature -40 Degrees C
Operating Temp. Maximum continuous 75°C; minimum -40°C (w/o impact)
Body Style Straight
Flammability UL 94 HB or better
Dielectric Strength Withstands 2000V AC minimum
Connector Type Insulgrip
Weight (Lbs.) 0.15
