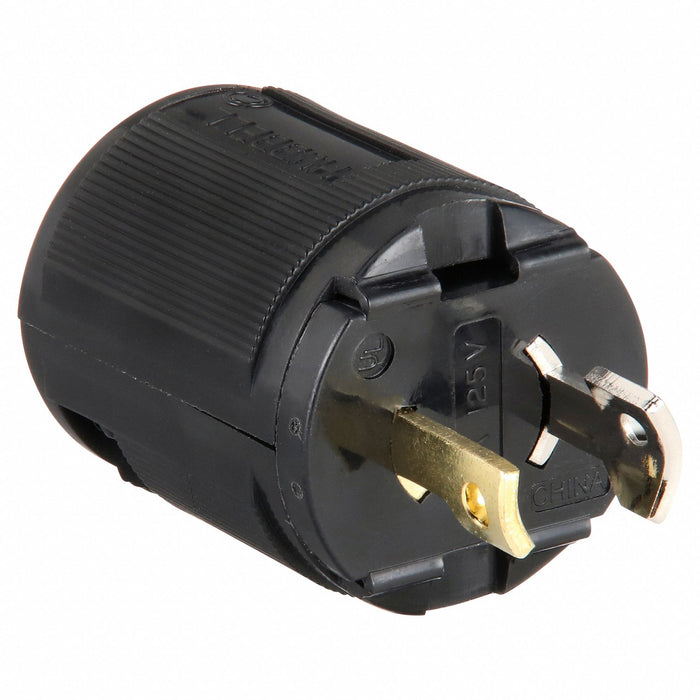

Hubbell HBL7465V Midget Locking Plug

Hubbell HBL7465V Midget Locking Plug, ML1-15P, 15 A, 125V AC, 1-Phase, 2 Pole, Screw Terminals, Black

UPC: 783585237282 | Harmonization / Schedule B : 8536.69.4051

Country of Origin: China | Shipping Weight: 0.01 lbs

$29.63 - $29.63
$29.63
$29.63 - $29.63
$29.63

The Hubbell HBL7465V is a Midget Locking (ML1) Plug rated for 15 A at 125V AC, single-phase, 2-pole, 3-wire grounded. ML1-15P configuration. Screw-terminal connections accept 14 AWG-12 AWG copper wire. Constructed with a flame-retardant black nylon housing, brass blades and grounding contacts. Compact size suitable for portable equipment, retail displays, theatrical lighting and limited-space applications. Mates with HBL7464V ML1-15R connector. Standards: UL 498, CSA C22.2 No. 42, Federal Specification W-C-596.

NEMA Plug Configuration ML1-15P
Current Rating 15 A
Voltage Rating 125V AC
Phase Single
Number of Poles 2
Number of Wires 3
Wire Connection Type Screw Terminals
Connection Orientation Straight
Grounding Grounded
Housing Color Black
Body Material Nylon
Contact Material Brass
Grade Industrial
Standards UL 498, CSA C22.2 No. 42, Federal Specification W-C-596
Series Midget Locking (ML)
Mates With HBL7464V ML1-15R Connector
Country of Origin China
