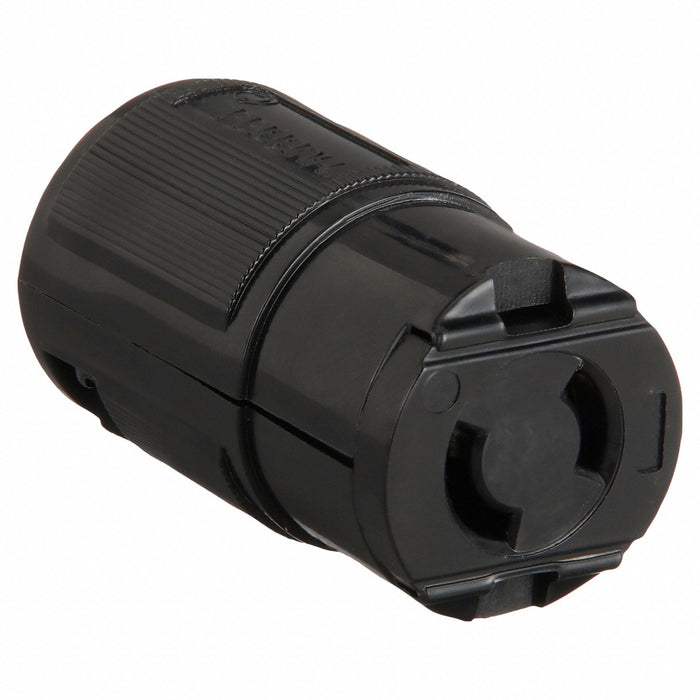

Hubbell HBL7464V Midget Locking Connector

Hubbell HBL7464V Midget Locking Connector, ML1-15R, 15 A, 125V AC, 1-Phase, 2 Pole, Screw Terminals, Black

UPC: 783585237251 | Harmonization / Schedule B : 8536.69.4051

Country of Origin: China | Shipping Weight: 0.01 lbs

$33.24 - $33.24
$33.24
$33.24 - $33.24
$33.24

The Hubbell HBL7464V is a Midget Locking (ML1) Connector rated for 15 A at 125V AC, single-phase, 2-pole, 3-wire grounded. ML1-15R configuration. Screw-terminal connections accept 14 AWG-12 AWG copper wire. Constructed with a flame-retardant black nylon housing, brass blades and grounding contacts. Compact size suitable for portable equipment, retail displays, theatrical lighting and limited-space applications. Standards: UL 498, CSA C22.2 No. 42, Federal Specification W-C-596.

NEMA Receptacle Configuration ML1-15R
Current Rating 15 A
Voltage Rating 125V AC
Phase Single
Number of Poles 2
Number of Wires 3
Wire Connection Type Screw Terminals
Connection Orientation Straight
Grounding Grounded
Housing Color Black
Body Material Nylon
Contact Material Brass
Grade Industrial
Standards UL 498, CSA C22.2 No. 42, Federal Specification W-C-596
Series Midget Locking (ML)
Application Portable equipment, retail displays, theatrical lighting
Country of Origin China
