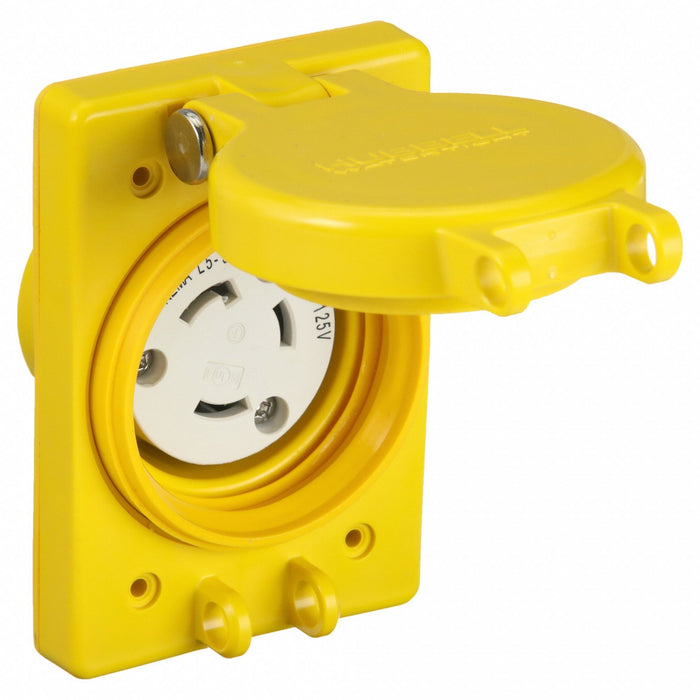

Hubbell HBL69W47 Watertight Locking Receptacle, L5-30R, 30A, 125V AC, Yellow, Single Phase

Hubbell HBL69W47 Watertight Locking Receptacle, L5-30R, 30A, 125V AC, Yellow, Single Phase

UPC: 783585433240 | Harmonization / Schedule B : 8536.69.4020

Country of Origin: United States | Shipping Weight: 0.65 lbs

$229.52 - $229.52
$229.52
$229.52 - $229.52
$229.52

Hubbell Watertight receptacles with lift covers provide an impact resistant UL Type 4X seal combined with corrosion resistant metallic components. These universal covers can house any NEMA listed straight blade receptacles as well as any NEMA listed Twist-Lock® receptacles. The Watertight receptacles can either be mounted to FD/FS boxes (see page C-9) or panel mounted to a flat surface. Combined, this makes a diversified product with the high quality needed in industrial, wet and wash down applications. • Impact resistant PBT lid, cover plate, and receptacle body • Thermoplastic elastomer seal • Stainless steel hardware and corrosion-resistant connection points

NEMA Receptacle Configuration L5-30R
Current Rating 30 A
Voltage Rating 125V AC
Phase Single
Number of Poles 2
Number of Wires 3
Wire Connection Type Screw Terminals
Shrouded No
Housing Color Yellow
Mount Type Flush
Cover Type Flip-Up Cover
NEMA Enclosure Rating 3R, 3RX, 4, 4X, 6, 6P
Standards ANSI, NEMA WD-1 and WD-6
Resistance Properties Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight
Flange Type Flanged
Grade Industrial
Material Nylon
IP Rating IP69K
Mounting Type Flush Mount
Special Features Corrosion resistant
Wiring Style Standard
Market Industrial
Flange Shape Rectangular
Number of Gangs 1
Polarized Yes
Insulation Material Thermoplastic Elastomer
Housing Material Thermoplastic Elastomer
Minimum Operating Temperature -40 Degrees F
Contact Material Nickel-Plated Brass
Maximum Operating Temperature 140 Degrees F
Connection Orientation Straight
AFCI No
Dielectric Strength 2500V AC
Body Material PBT
Retainer Material Clear Polycarbonate
Performance Electrical - Current Interrupting - Rated for current interruption per UL498 Electrical - Dielectric Voltage - 2500V AC Electrical - Max Working Voltage - As marked Electrical - Temperature Rise - 30°C max per UL498 at rated current Environmental - UV resistance - All exposed materials are UV stabilized Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous
Amps 30
• Impact resistant PBT lid, cover plate, and receptacle body • Thermoplastic elastomer seal
Country of Origin United States
