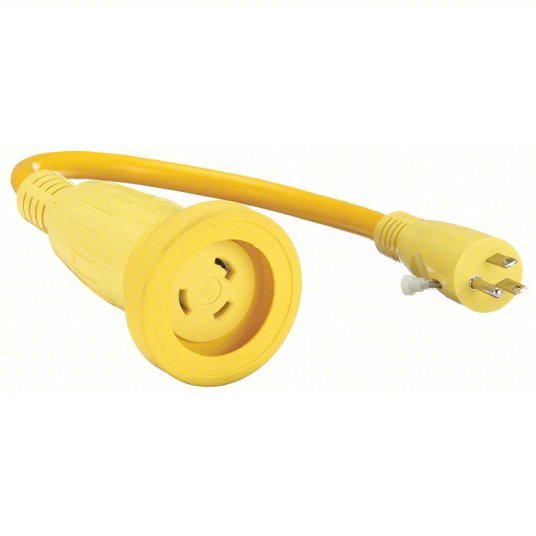

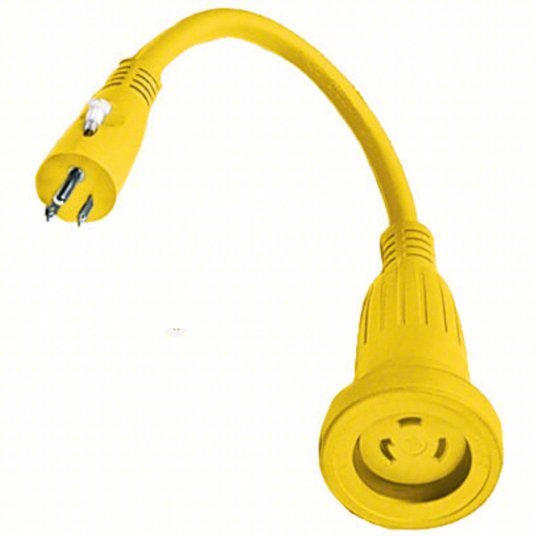

Hubbell HBL61CM22 Locking Cord Adapter NEMA 5-15P, NEMA L5-30R, 10 AWG Wire Size

Name: Hubbell HBL61CM22 Locking Cord Adapter NEMA 5-15P, NEMA L5-30R, 10 AWG Wire Size
Brand: Hubbell Wiring Device Kellems
Price: 311.9 USD
Availability: InStock

UPC: 783585808598 | Harmonization / Schedule B : 8544.42.9090

Country of Origin: Mexico | Shipping Weight: 1.1 lbs

$311.90 - $311.90

$311.90

$311.90 - $311.90

$311.90

Locking Cord Adapter, Number of Outlets 1, Max. Amps 15 A, Voltage 120V AC, Plug Configuration NEMA 5-15P, Connector Type NEMA L5-30R, Temp. Rating -40 Degrees to 167 Degrees F, Wire Size 10 AWG, Cord Length 2 ft, For Use With (Mfr. No. HBL61CM08WLED), (Mfr. No HBL61CM08), Color Yellow, Jacket Material PVC

Connector Type	L5-30
Max. Amps	15 A
Number of Outlets	1
Color	Yellow
Plug Configuration	NEMA 5-15P
Voltage	120V AC
Voltage - Ext. Cords and Outlet Strips	120VAC
Gauge	10 AWG
Jacket Material	PVC
Gauge - Ext. Cords and Outlet Strips	10 AWG
Temp. Range - Ext. Cords and Outlet Strips	-40 Degrees to 167 Degrees F
Voltage Rating	125 VAC
Max. Amps - Ext. Cords and Outlet Strips	30.0
NEMA Plug Configuration - Ext. Cords and Outlet Strips	5-15P
Temp. Range	-40 Degrees to 167 Degrees F
For Use With	(Mfr. No. HBL61CM08WLED), (Mfr. No HBL61CM08)
Temp. Rating	-40 Degrees to 167 Degrees F
Operating Temperature	Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Material	Composite
Receptacle Type	Female- 30A 125V Twist-Lock
Carton Quantity	10
Application	Straight Adapter
Amperage	30 A
Brand	Hubbell Wiring Device-Kellems
Performance	Environmental - Moisture Resistance - IP55 Suitability
Current Rating	30 A
Number Of Pins	Male- 15A 125V Straight Blade
Insulation	Insulated Body
Wattage	3750
Jacket Color	Yellow
Male End Rating	15 or 20A 125V, 2p3w Straight Blade (lock type)
Adapter Style	Straight (Pig Tail)
Product Type	Adapters
Poles and Wires	2 Pole, 3 Wire Grounding
Female End Rating	30A 125V, 2p3w Twist-Lock
