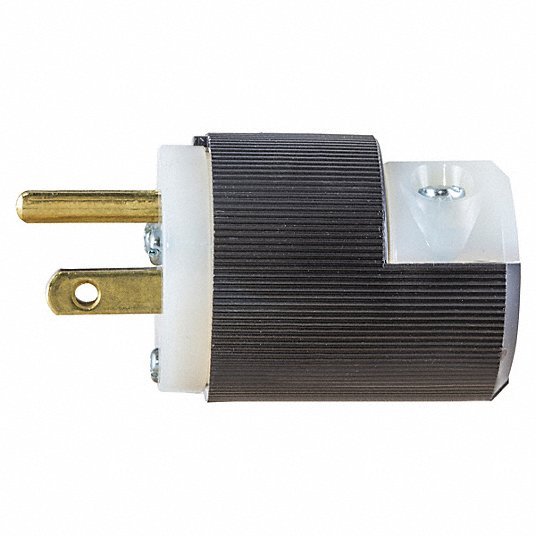

Hubbell HBL5266C Straight Blade Plug, Male, NEMA 5-15P, 15 A, 125V AC, 2 Poles, 3 Blades, Black/White
$27.62
SKU KV4A250
Straight Blade Plug, Connection Orientation Straight, Current Rating 15 A, Grounding Grounded, Horsepower Rating 1/2 hp, Housing Color Black, White, IP Rating IP20, NEMA Plug Configuration 5-15P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, UL 94 Flammability Rating HB, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 0.72 in
| Item | Straight Blade Plug |
| Wiring Style | Standard |
| Grade - Plugs and Receptacles | Industrial |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Plug Configuration - Plugs and Receptacles | 5-15P |
| Number of Wires | 3 |
| Phase - Plugs and Receptacles | 1 |
| Antimicrobial | No |
| Color | Black/White |
| Number of Poles | 2 |
| Amps | 15 |
| HP | 0.5 |
| Voltage | 125VAC |
| NEMA Configuration | 5-15 |
| Standards | CSA Certified C22.2 No. 42 File 280, Federal Specification W-C-596G, NEMA WD-6, UL 498 File E1706 |
| Color - Plugs and Receptacles | Black/White |
| Special Features | Corrosion resistant |
| Phase | Single |
| IP Rating | IP20 |
| Corrosion Resistant | Yes |
| Grade | Industrial |
| Material | Nylon |
| NEMA Rating | WD-6; 5-15P |
| Insulation Material | Nylon |
| Voltage Rating | 125V AC |
| Housing Color | Black, White |
| Market | Commercial, Industrial |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| Current Rating | 15 A |
| Polarized | Yes |
| NEMA Plug Configuration | 5-15P |
| Horsepower Rating | 1/2 hp |
| Number of Blades | 3 |
| Grounding | Grounded |
| Connection Orientation | Straight |
| UL 94 Flammability Rating | HB |
| Housing Material | Polycarbonate |
| Maximum Operating Temperature | 75 Degrees C |
| Wire Connection Type | Screw Terminals |
| Housing Material Finish | Nickel Plated |
| Minimum Operating Temperature | -40 Degrees C |
| Dielectric Strength | Withstands 2000V per UL498 |
| Weight (Lbs.) | 0.35 |
| Environment | Dry |
| Blade Material | Solid Brass |
| Body Style | Straight |
| Temp. Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Ground Contact Blade Material | .040" (1.0) Copper Alloy |
| Blade Holder Material | Nylon-Natural |
| Retainer Material | Polycarbonate-Clear |
| Terminal Screw Material | #8-32 Brass /Ni plated for neutral |
| Operating Temp. | -40°C to 60°C; Maximum continuous 75°C, minimum -40°C (w/o impact). |
| Ground Screw Material | #8-32 Brass, Multiple Drive (Green) |
| Flammability | Rated HB or better UL94 |
| Contact Blades Material | .060" (1.5) Brass |
| Body Material | Impact Modified Nylon |
| Cord Clamp Material | Nylon-Natural |
| Package Quantity | 1 |
