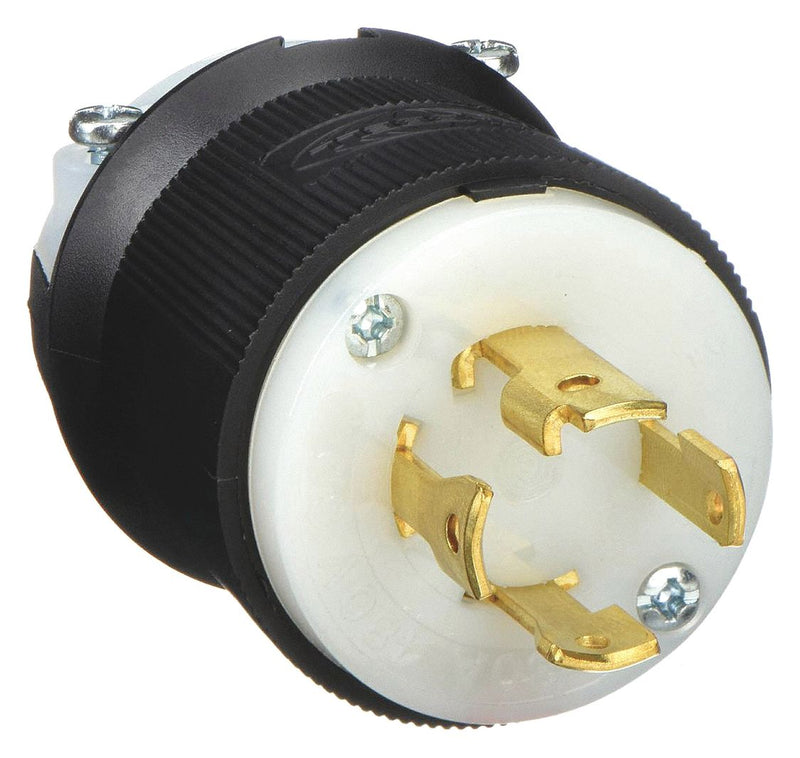

Hubbell HBL2731 Locking Plug, L16-30P, Black/White, 480V AC, 30 A, 3 Pole, 4 Blade

Hubbell HBL2731 Locking Plug, L16-30P, Black/White, 480V AC, 30 A, 3 Pole, 4 Blade

UPC: 783585039312 | Harmonization / Schedule B : 8536.69.4020

Country of Origin: United States | Shipping Weight: 0.2 lbs

$84.04 - $84.04
$84.04
$84.04 - $84.04
$84.04

Locking Plug, Connection Orientation Straight, Current Rating 30 A, Housing Color Black, White, Housing Material Nylon, NEMA Plug Configuration L16-30P, Number of Blades 4, Number of Poles 3, Phase Three, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, Voltage Rating 480V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 2.21 in, For Maximum Cable Diameter 1.15 in, For Minimum Cable Diameter 0.35 in, Grade Industrial, Grounding Grounded

Cord Size 0.350 in to 1.150 in
For Minimum Cable Diameter 0.35 in
For Maximum Cable Diameter 1.15 in
Face Diameter 2.21 in
Maximum Wire Size 8 AWG
Outside Diameter 2.33 in
Body Length 2.33 in
Minimum Wire Size 16 AWG
Length 2.33 in
Wire Rope Length 2.33 in
Overall Length 2.33 in
NEMA Plug Configuration L16-30P
Current Rating 30 A
Voltage Rating 480V AC
Phase Three
Number of Poles 3
Number of Wires 4
Number of Blades 4
Wire Connection Type Screw Terminals
Wiring Style Standard
Connection Orientation Straight
Shrouded No
Grounding Grounded
Housing Color Black, White
Standards CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties Chemical Resistant, Impact Resistant
IP Rating IP20
Material Nylon
Boot Code C
Grade Industrial
Minimum Operating Temperature -40 Degrees C
Market Industrial
Housing Material Nylon
Maximum Operating Temperature 75 Degrees C
For Environment Dry
For Location Indoor
Horsepower Rating 10 hp
Blade Material Brass
Polarized Yes
Flammability HB or better per UL 94 or CSA 22.2 No. 0.6
NEMA Configuration L16-30
Amps 30
Antimicrobial No
UL 94 Flammability Rating HB
Country of Origin United States
