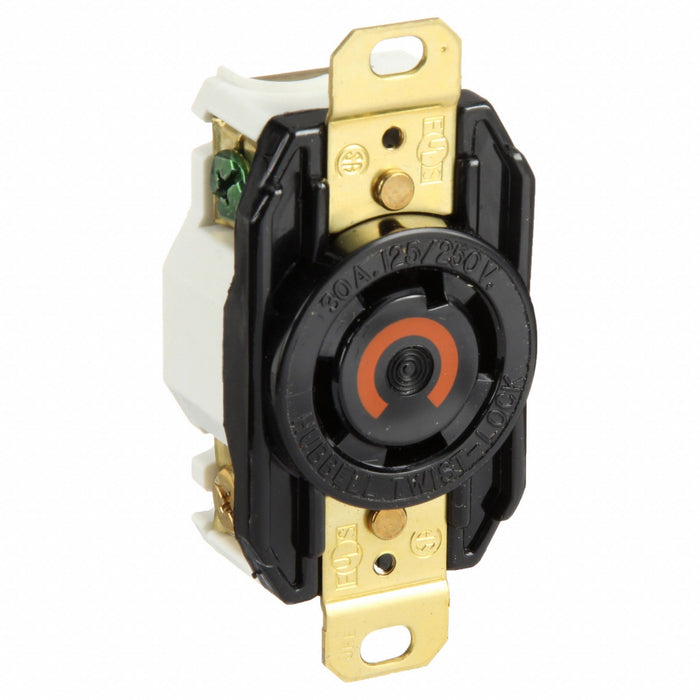

Hubbell HBL2710 Twist-Lock Receptacle, L14-30R, 30A, 125/250V AC, Black, Single Phase, 3-Pole

The HUBBELL 30A Twist-Lock Receptacle L14-30R is a locking receptacle rated for use in industrial applications where a secure electrical connection is needed. It includes a twist-lock mechanism intended to reduce the likelihood of accidental disconnection and supports single-phase, 3-pole, 4-wire configurations at 125/250V AC. The device is constructed with nylon housing and brass contacts. Key Features of the HUBBELL 30A Twist-Lock Receptacle L14-30R: Amperage/Voltage: Rated for 30 A, 125/250V AC operation. NEMA Configuration: L14-30R (3-pole, 4-wire). Mounting Type: Flush mount with included screw mounting hardware. Material Construction: Nylon polyester base and housing; all-brass mounting and grounding system enhances corrosion resistance. Wire Accommodation: Accepts #16 AWG to #8 AWG solid or stranded copper wire via screw terminals; wire restraint recess reduces terminal loosening risk. Dielectric Strength & Flammability: Withstands minimum 2,000V dielectric voltage; UL94 V-2 flammability rating or better. Operating Temperature Range: -40°C to +75°C (without impact), maximum continuous temperature rise of 30°C at full rated current after overload cycles. NEMA Enclosure/IP Rating: NEMA Type 1 enclosure; IP20 suitability for indoor dry locations unless otherwise protected. Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, listed to UL498 standards.
