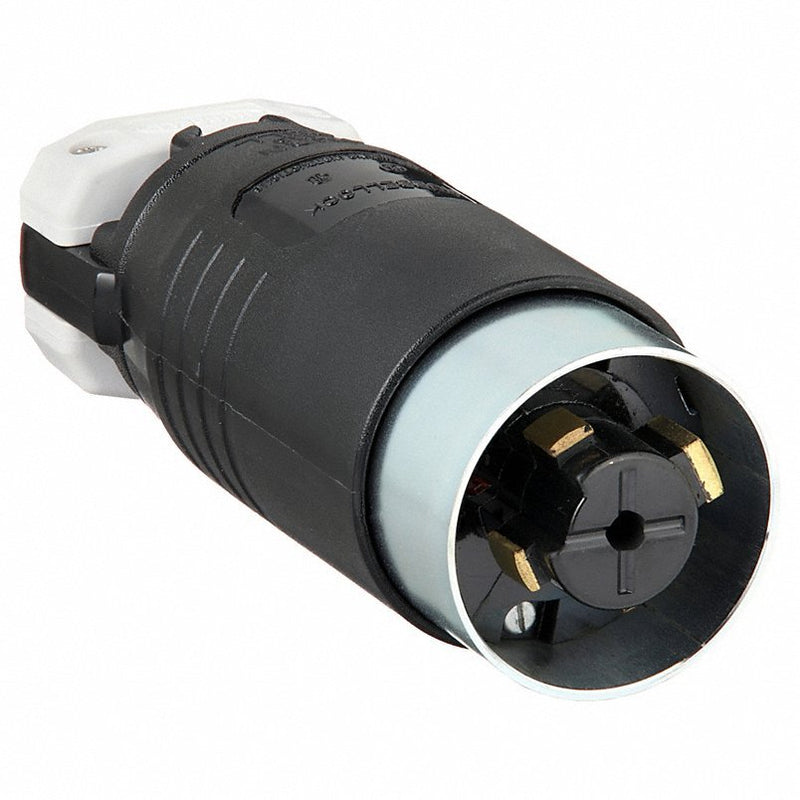

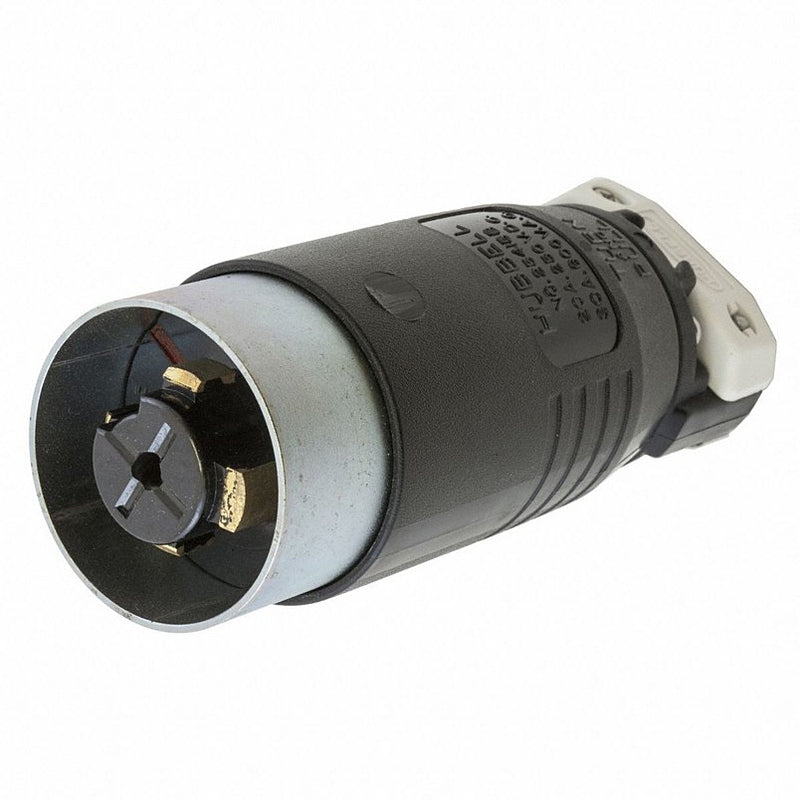

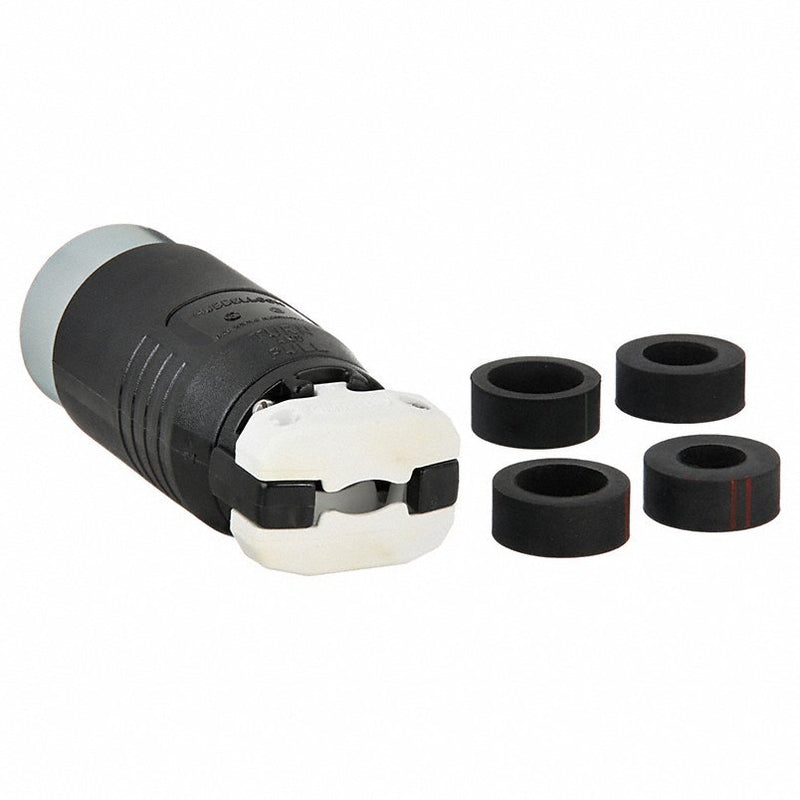

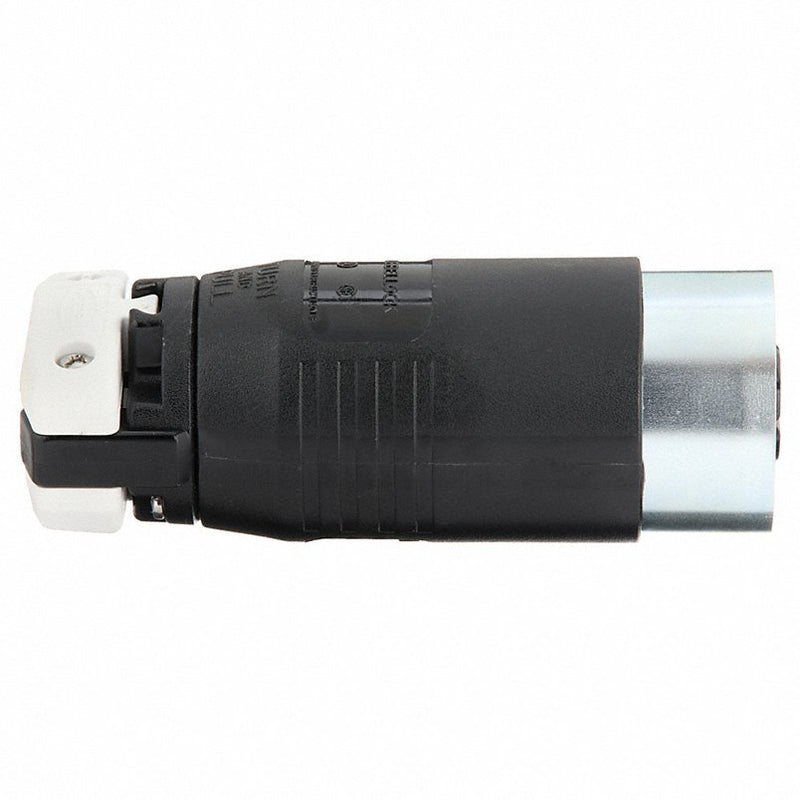

Hubbell HBL25415B 30/20A Locking Plug 4P 5W 600VAC/250VDC BK
$342.10
SKU KV3D059
Locking Plug, Connection Orientation Straight, Current Rating 20/30 A, Housing Color Black, White, Housing Material Nylon, NEMA Plug Configuration Non-NEMA, Number of Blades 5, Number of Poles 4, Phase Three, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, Voltage Rating 250V DC/600V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 1.2 in, For Minimum Cable Diameter 0.7 in, Grade Industrial, Grounding Grounded, IP Rating IP30
Details
| Item - Plugs and Receptacles | Locking Plug |
| Wiring Style | Standard |
| Shrouded / Non-Shrouded | Shrouded |
| Grade - Plugs and Receptacles | Industrial |
| Amps - Plugs and Receptacles | 30/20 |
| NEMA Plug Configuration - Plugs and Receptacles | 30A, Non-NEMA |
| Voltage - Plugs and Receptacles | 600V AC/250V DC |
| Number of Poles | 4 |
| Number of Wires | 5 |
| Phase | Three |
| Voltage | 600VAC/250VDC |
| Amps | 30/20 |
| IP Rating | IP30 |
| Material | Nylon |
| Color - Plugs and Receptacles | Black |
| Grade | Industrial |
| NEMA Configuration | Non-NEMA, 5 Blade |
| Corrosion Resistant | No |
| Color | Black |
| Antimicrobial | No |
| Standards | CSA Certified, UL Listed |
| Item | Locking Plug |
| Current Rating | 20/30 A |
| Connection Orientation | Straight |
| UL 94 Flammability Rating | V-0 |
| Blade Material | Brass |
| Market | Industrial |
| Voltage Rating | 250V DC/600V AC |
| Grounding | Grounded |
| NEMA Plug Configuration | Non-NEMA |
| Shrouded | Yes |
| Polarized | Yes |
| Maximum Operating Temperature | 75 Degrees C |
| Housing Color | Black, White |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| Wire Connection Type | Screw Terminals |
| Number of Blades | 5 |
| Housing Material | Nylon |
| Minimum Operating Temperature | -40 Degrees C |
| Weight (Lbs.) | 1.4 |
| Temp. Rise | Max 30C Temp. Rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Flammability | UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Cable Range | 0.700 - 1.200 in |
| Cord Range | 0.760"-1.200" (19.30-30.4) |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage Withstand - 2,000V minimum Environmental - Flammability - UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors Environmental - Moisture Resistance - IP30 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C,Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #10 AWG - #6 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Industry Standard(s) | Certified to CSA Standard Listed to UL Standard |
| Voltage Rating Description | 250 VDC/600 VAC |
| Item Type | 20A/30A Hubbellock® Plug |
| Dielectric Strength | Withstands 2,000V minimum |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Amperage Rating | 20/30 A |
| Current / Amperage Rating | 20/30 A |
| Type | Plugs |
| Package Quantity | 1 |
