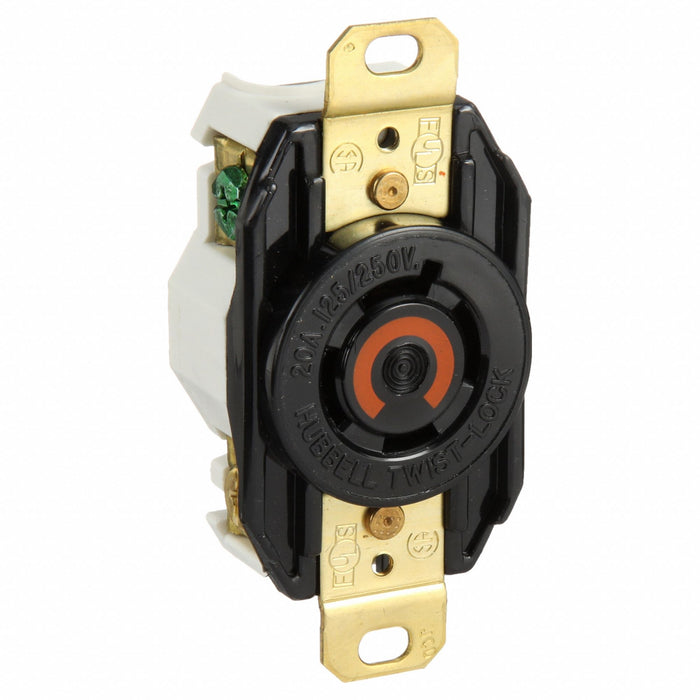

Hubbell HBL2410 Locking Receptacle

Hubbell HBL2410 Locking Receptacle, L14-20R, 20 A, 125/250V AC, 1-Phase, 3 Pole, Flush Mount, Black

UPC: 783585235738 | Harmonization / Schedule B : 8536.69.8000

Country of Origin: United States | Shipping Weight: 0.3 lbs

$66.97 - $66.97
$66.97
$66.97 - $66.97
$66.97

The HUBBELL 20A Twist-Lock Receptacle (L14-20R) is an industrial locking receptacle intended for indoor dry locations. Twist-lock mechanism helps reduce accidental disconnection. 3 poles, 4 wires, rated 125/250V AC at 20 A. Supports back and side wiring with wire restraint recesses; face color coding aids voltage matching. Accepts #16 AWG to #8 AWG solid or stranded copper wire; screw terminals identified per UL 498. Flush mount with included mounting hardware. Nylon polyester base, thermoplastic elastomer housing, all-brass mounting and grounding system. Maximum continuous 75°C (167°F), minimum -40°C without impact. Withstands 2,000V minimum dielectric; V-2 flammability per UL94/CSA. IP20; NEMA Type 1 enclosure. CSA C22.2 No.42, Federal Specification W-C-596, UL 498.

NEMA Receptacle Configuration L14-20R
Current Rating 20 A
Voltage Rating 125/250V AC
Phase Single
Number of Poles 3
Number of Wires 4
Wire Connection Type Screw Terminals
Grounding Grounded
Housing Color Black
Mount Type Flush
IP Rating IP20
NEMA Enclosure Rating 1
Resistance Properties Corrosion Resistant, Moisture Resistant
Standards CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Material Thermoplastic Elastomer
Wiring Style Standard
Grade Industrial
Horsepower Rating 2 hp
Includes Mounting Hardware Yes
Connection Orientation Straight
For Location Indoor
For Environment Dry
Maximum Operating Temperature 167°F
Minimum Operating Temperature -40°F
Lock Type Twist-lock
Base Material Nylon Polyester
Housing Material Nylon
Contact Material Brass
Polarized Yes
Amperage Rating 20 A
Application Heavy Duty Industrial
Number of Gangs 1
Terminal Designations X, Y, Z, White, Green per UL 498
Dielectric Strength Withstands 2,000V minimum
Country of Origin United States
