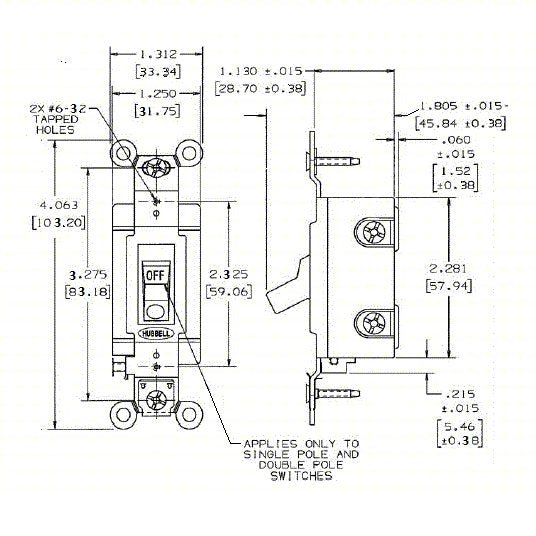

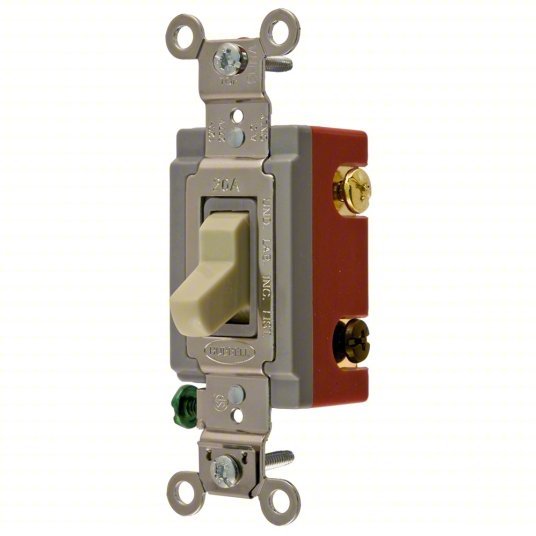

| Switch Type |
4-Way |
| Switch Style |
Toggle |
| Amps AC |
20 A |
| Color |
Ivory |
| Voltage AC |
120 to 277 |
| Locking |
No |
| Switch Function |
Maintained |
| Wiring Method |
Back, Side |
| Application Environment |
Industrial |
| Rated HP |
1 |
| Antimicrobial |
No |
| Standards |
UL Listed |
| Voltage |
120/277V AC |
| Voltage Rating |
120/277V AC |
| Switch Material |
Nylon |
| Minimum Operating Temperature |
-40 Degrees F |
| Number of Switches |
1 |
| Features |
Large Brass Binding Head Screws with Deep Slots, Strip Gauge for Accurate Wiring |
| Horsepower Rating |
1 hp |

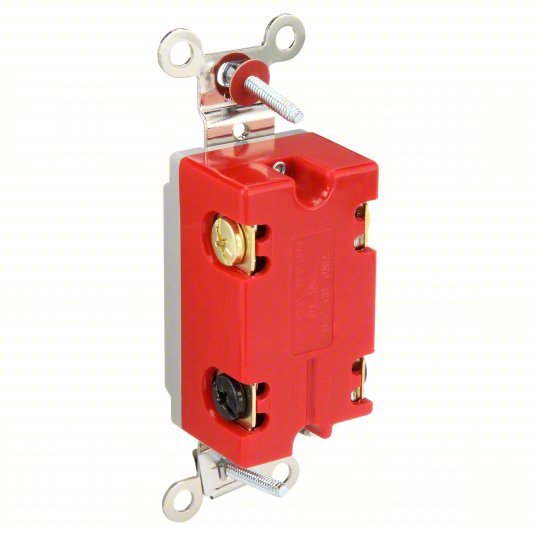

| Wire Connection Type |
Screw Terminals |
| Wire Connection Types |
Screw Terminals |
| For Market |
Industrial Grade |
| Current Rating |
20 A |
| Resistance Properties |
Shatter and Crack Resistant, Impact Resistant |
| Maximum Operating Temperature |
75 Degrees C |
| Market |
Industrial |
| Style |
Four Way |
| Type |
Toggle |
| Max. Working Voltage |
277V AC |
| Dielectric Voltage |
Withstands 1500V AC minimum for 1 minute |
| Wiring Style |
Back and Side Wired |
| Amperage |
20A |
| Switch Grade |
Industrial |
| Max. Continuous Current |
20A |
| Flammability |
UL 94V-2 |
| Listing and Certifications |
Listed to Standard UL 20, CSA Certified, Meets NEMA WD1 |
| Temperature Rise |
30°C maximum at rated current |
| Product Type |
Toggle-switches |
| Toggle Color |
Ivory |
| Operating Temperatures |
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Switch Handle Positions |
2 |
| Terminal Accommodations |
#14 AWG min. - #10 AWG max. solid and stranded copper wire only |
| Operating Temperature |
Max. continuous: 75°C; Min. continuous: -40°C without impact |
| Overload |
Minimum 4.8 times rated current for 100 cycles |
| Action |
DPDT |
| Dielectric Strength |
Withstands 1500V AC minimum for 1 minute |
| Performance |
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only |
| Industry Standard(s) |
UL Listed |
| Series |
Extra Heavy Duty |
| Application |
Back and Side Wired |
| Voltage Rating Description |
120-277 VAC |
| Number Of Poles |
Double Pole |
| Temperature Rise - Max. |
30°C maximum at rated current |
| Amperage Rating |
20 A |
| Current / Amperage Rating |
20 A |
| Connectivity |
Back and Side Wired |
