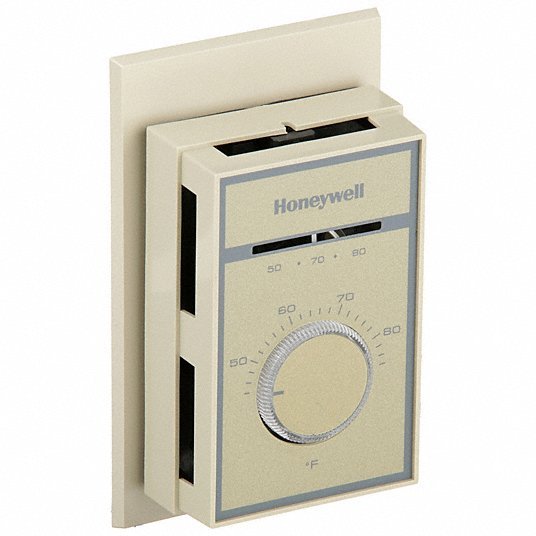

Honeywell T651A3018 Line Volt Mechanical Tstat, 44 Degrees to 86 Degrees F, SPDT
UPC: 085267824347 | Harmonization (Schedule B): 9032.10.0030
SKU KV4NE56
Original price
$239.33
-
Original price
$239.33
Original price
$239.33
$239.33
-
$239.33
Current price
$239.33
Line Volt Mechanical Tstat, Thermostat Switch Type SPDT, Thermostat Control Range 44 Degrees to 86 Degrees F, Thermostat Voltage 120 to 277V AC, Full Load Amps @ 120VAC 15 A, Full Load Amps @ 240VAC 4 A, Thermostat Programmable No, Remote Sensing Capability No, Thermostat Heating/Cooling Heating/Cooling, Remote Sensing Bulb Included No, Switch Action Open/Close on Rise, Number of Switches 1, Differential 2 Degrees F, Height 4 1/2 in, Width 2 15/16 in, Depth 1 1/2 in
Switch Action | Open/Close on Rise |
Voltage | 120 to 277VAC |
Sensor Type | Vapor-Filled Dual-Diaphragm |
Differential | 2 Degrees F |
Display Type | Analog |
Thermostat Control Range | 44 Degrees to 86 Degrees F |
Mounting Location | Standard Vertical or Horizontal Outlet Box |
Switch Type | SPDT |
Color | Beige |
Thermostat Item | Line Voltage Mechanical Thermostat |
Remote Sensing Bulb Included | No |
Full Load Amps @ 120VAC | 15 A |
Includes | Vertical Scaleplate with Thermometer; Horizontal Scaleplate with No Thermometer; Range Stops and Locking Screws; Wall Plate; High Accuracy Dual Diaphragm Sensor |
Pilot Duty Contacts (VA) | 125 VA |
Locked Rotor Amps @ 240V | 24 A |
Remote Sensing Capability | No |
Mounting Type | Vertical or Horizontal |
Number of Switches | 1 |
Standards | UL File No. E47434, Guide No. XAPX., CSA Certified, File No. LR1322 |
Thermostat Switch Type | SPDT |
Item | Line Volt Mechanical Tstat |
Contact Rating Resistive @ 120V | 22 A |
Thermostat Programmable | No |
Thermostat Voltage | 120 to 277V AC |
Thermostat Heating/Cooling | Heating/Cooling |
Locked Rotor Amps @ 120V | 48 A |
Control Range | 44 Degrees to 86 Degrees F |
Contact Rating Resistive @ 240V | 22 A |
Full Load Amps @ 240VAC | 4 A |
Voltage Range | 120 to 277VAC |
Display | Analog |
Type | Heating/Cooling |
Full Load Amps @ 120V AC | 9.8 A |
Number of Poles | 1 |
Number of Heating Stages | 1 |
Electrical Connection Type | Hardwired |
Pilot Duty Rating | 125 VA |
Contact Rating | 120 to 277V AC |
Housing Type | Standard Housing |
Frequency | 50 Hz, 60 Hz |
Temperature Scale | Fahrenheit |
Changeover Type | Automatic |
System Settings | Auto |
Full Load Amps @ 240V AC | 4.9 A |
Resistive Amps @ 208V AC | 22 A |
Differential Type | Fixed |
Enclosure Color | Beige |
Housing Material | Plastic |
Temperature Control Range | 44 Degrees to 86 Degrees F |
Includes Positive Off | No |
Compatible System Type | Electric Heating, Fan Coil Units |
Fan Settings | No Fan Setting |
Minimum Control Temperature | 44 Degrees F |
Housing Color | Beige |
Temperature Differential | 2 Degrees F |
Mounting Direction | Horizontal; Vertical |
Number of Cooling Stages | 1 |
Switch Type/Action | SPDT, Open/Close on Rise |
Maximum Control Temperature | 86 Degrees F |
Stages | 1H/1C |
Package Quantity | 1 |
