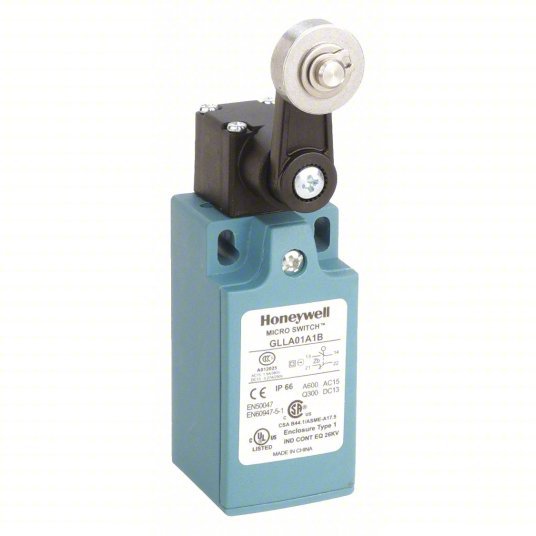

Honeywell GLLA01A1B General Purpose Limit Switch 1NC/1NO, 10A @ 300V, 10A @ 250V, CCW/CW

UPC: 695977938724 | Harmonization (Schedule B): 8536.50.9055

SKU KV12U916
Original price $48.99 - Original price $48.99
Original price
$48.99
$48.99 - $48.99
Current price $48.99
General Purpose Limit Switch, Actuator Style - Limit Switch Roller Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 10A @ 300V, DC Contact Rating - Limit Switch 10A @ 250V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 1.83 in, Body Height - Limit Switch 2.44 in, Body Width - Limit Switch 1.2 in, Body Depth - Limit Switch 1.22 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13
Basic Actuator Style - Limit Switch Rotary
Actuator Style - Limit Switch Roller Lever, Rotary
Contact Form- Switches 1NC/1NO
Actuator Location - Limit Switch Side
AC Contact Rating - Limit Switch 10A @ 300V
DC Contact Rating - Limit Switch 10A @ 250V
Body Style - Limit Switch Miniature
Mounting - Limit Switch Surface
IP Rating 65
Body Material plastic
Actuator Style Rotary Lever Arm
Limit Switch Style General Purpose Limit Switch
Boot Sealed Actuator - Limit Switch No
Actuator Location (Limit Switch) Side
Arm Material Metal
Electrical Connection Screw Terminals
DC Contact Rating 10A @ 250V
Mounting Hole Pattern - Limit Switch 2 Hole Horizontal
Boot Sealed Actuator (Limit Switch) No
Number of Poles 1
Stem Thread - Limit Switch No Stem
Mounting Hole - Limit Switch (2) 0.16 in dia
Operating Force 1.06 in-lb
Contact Form - Limit Switch 1NC/1NO
Contact Form 1NC/1NO, SPDT
Actuator Style (Limit Switch) Rotary, Roller Lever
NEMA Rating 1, 12, 13
Wiring Entry 1/2 in NPT
Actuator Location Side
Movement CCW, CW
Operating Temp. Range 14 Degrees to 176 Degrees F
Voltage Rating 300VAC/250VDC
Travel Differential Travel 18 Degrees , Maximum Pretravel 30 Degrees , Minimum Over Travel 40 Degrees
Standards CCC, CE, cULus
Mounting Hole Spacing - Limit Switch 0.87 in
Basic Actuator Style (Limit Switch) Rotary
Amps 10
Series GLL/GLS
AC Contact Rating 10A @ 300V
Body Style (Limit Switch) Miniature
Roller Material Steel
