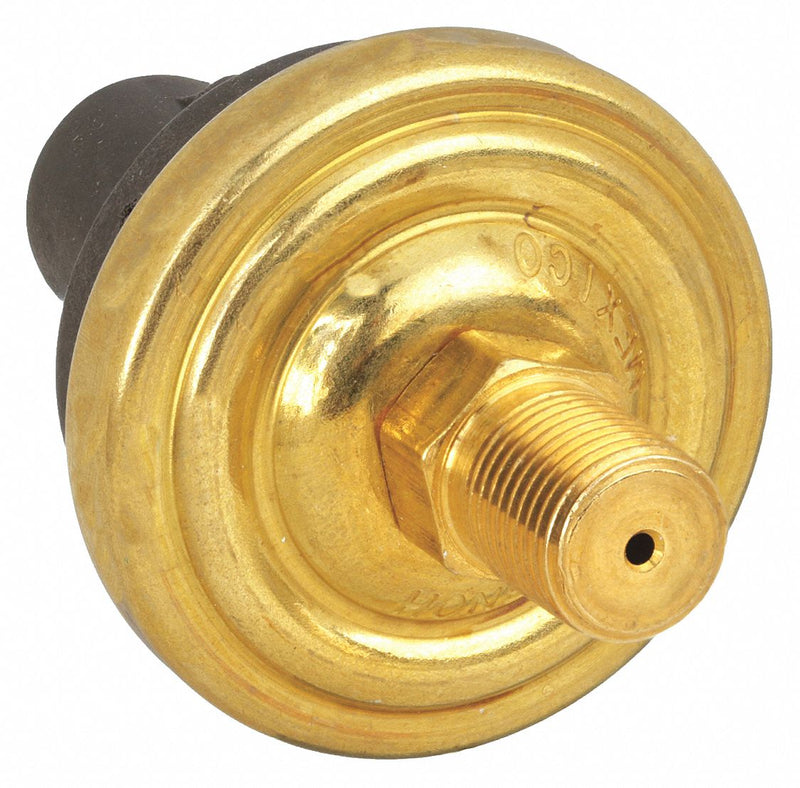

Honeywell 76054-B00000600-01 5000 Series pressure switch

Honeywell 76054-B00000600-01 Pressure Switch, 5000 Series, 0.5 psi to 150 psi, 1/8-27 in MNPT, SPST-NO

UPC: | Harmonization / Schedule B : 8536.50.9065

Country of Origin: Mexico | Shipping Weight: 0.15 lbs

$131.03 - $131.03
$131.03
$131.03 - $131.03
$131.03

Pressure Switch, Differential 51 to 90 psi, Range 51 to 90 psi, Port Type 1/8-27 in MNPT, Contact Form 1NO, NEMA Rating Not Rated, Actuation Type Diaphragm, Action Standard, Series 5000, Factory On/Off Setting 60/90 psi, AC Contact Rating 0.5 A @ 240 V, 1 A @ 120 V, DC Contact Rating 15 A @ 6 V, 4 A @ 24 V, 8 A @ 12 V

Item Pressure Switch
Overall Height 2.3 in
Overall Width 1.47 in
Action Standard
Contact Form SPST-NO
Pressure Connection Type 1/8-27" MNPT
Range 51 to 90 psi
Factory On Setting 60 psi
Factory Off Setting 90 psi
Series 5000
Pressure Switch Differential 51 to 90 psi
AC Contact Rating 0.5A @ 240V, 1A @ 120V
DC Contact Rating 15A @ 6V, 4A @ 24V, 8A @ 12V
Pressure Switch Electrical Contact Form SPST-NO
Actuation Type Diaphragm
Pressure Switch Factory On/Off Setting 60/90 psi
Pressure Switch Port Type 1/8-27 in MNPT
Pressure Switch Range 51 to 90 psi
IP Rating IP54
Differential Pressure - Minimum 51 psi
Pressure - Minimum 0.5 psi
Deadband Adjustability Adjustable
Differential Pressure - Maximum 90 psi
Pressure - Maximum 150 psi
Proof Pressure 500 psi
CAD Available Yes
Operating Temperature - Minimum -40 Degrees F
Operating Temperature - Maximum 250 Degrees F
NEMA Enclosure Rating Not Rated
Country of Origin Mexico
