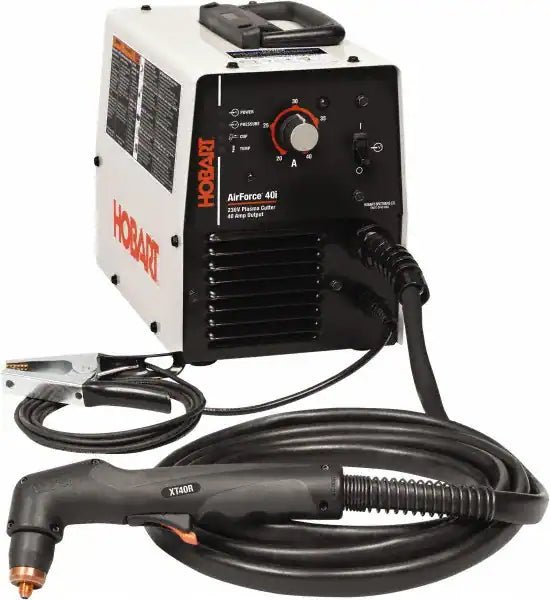

Hobart 500576 Plasma Cutter: AirForce 40i, 40 A, 12 ft Handheld
UPC: 715959674812 | Harmonization (Schedule B): 8456.90.3100
SKU KV96179841
Original price
$2,973.43
-
Original price
$2,973.43
Original price
$2,973.43
$2,973.43
-
$2,973.43
Current price
$2,973.43
Plasma Cutter, Cutting Configuration Plasma Cutting, For Material Type Mild Steel, For Maximum Material Thickness 5/8 in, For Minimum Material Thickness 1/8 in, Input Frequency 60 Hz, Input Voltage 110 V AC, 115 V AC, 120 V AC, 220 V AC, 230 V AC, 240 V AC, Max. Input Current 20 A @ 120V DC (Single-Phase), Open Circuit Voltage 400 V DC, Phase Single-Phase, Plasma Cutter Model 500576, Maximum Output Current 40 A, Plasma Cutting Minimum Output Current 14 A
| Item | Plasma Cutter |
| Rated Output | 1/2 A |
| Input Voltage | 120/240V |
| Cutting Capacity (In.) | 7/8 in |
| Series | AirForce 40i |
| Input (Amps) | 17.7/25.0/27.6A |
| Design | Portable |
| PSI | 90-120 |
| Application | Body Shops, Fabrication, Light Construction, Maintenance, Prototyping |
| OCV | 400V DC |
| Includes | (2) Tips, 12 ft Hand-Held Torch, 12 ft Power Cord, 12 ft Work Cable with Clamp, Adapter, Electrode, Shield Deflector |
| Duty Cycle | 60 % |
| Color | White |
| For Maximum Material Thickness | 5/8 in |
| Weight | 21 lb |
| For Minimum Material Thickness | 1/8 in |
| Plasma Cutting Minimum Output Current | 14 A |
| Cutting Configuration | Plasma Cutting |
| Input Frequency | 60 Hz |
| Maximum Pressure - Air Compressor | 90 psi |
| Plasma Torch | 12 ft Handheld |
| Maximum Output Current | 40 A |
| Plug Type | 5-15P, 6-50P, L6-30P |
| Standards | CSA |
| Max. Input Current | 20 A @ 120V DC (Single-Phase) |
| Plasma Cutter Model | 500576 |
| Rated Output at Duty Cycle | 20 A @ 60%, 27 A @ 35% |
| Plasma Torch Type | Handheld |
| Plasma Cutter Type | Plasma Cutter |
| Max. Amperage Range | Less than 50 A |
| Welding Processes | Plasma Cutting |
| Open Circuit Voltage | 400 V DC |
| Plasma Cutting Output @ Duty Cycle | 20 A @ 88V DC, 60% (120 V), 27 A @ 91V DC, 35% (120 V), 40 A @ 140V DC, 60% (240 V) |
| Phase | Single-Phase |
| For Material Type | Mild Steel |
| Required Air Flow | 6 cfm |
| Input Voltage (Nominal) | 120V |
| Process | Plasma Cutting |
| Package Quantity | 1 |
