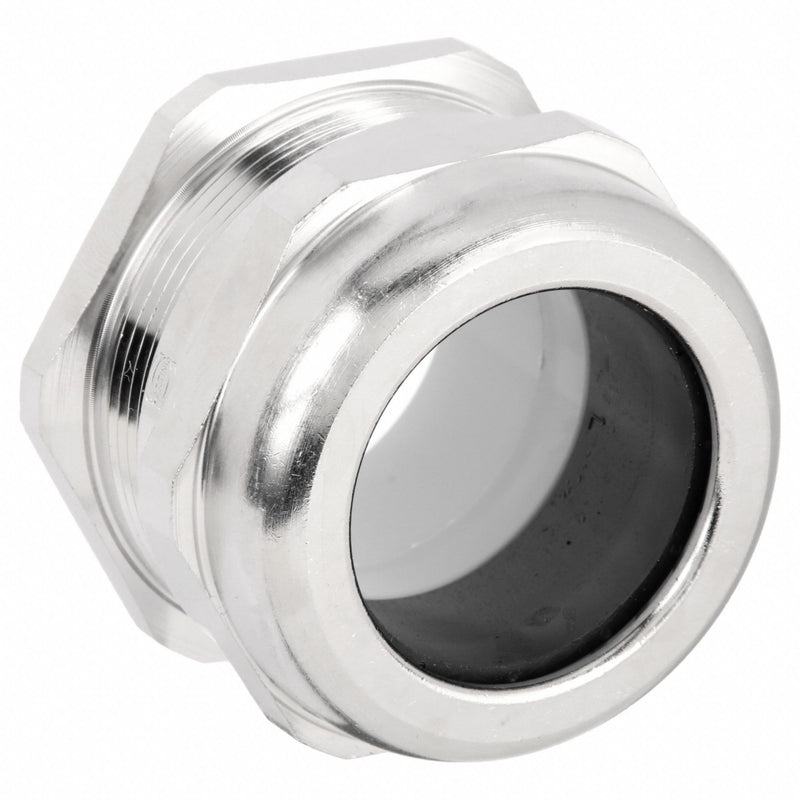

Harting 19000005081 Cord Connector, Brass, M20, 5 mm to 12 mm, 24 mm Lg - Box to End of Connector, Silver PK10

Harting 19000005081 Cord Connector, Brass, M20, 5 mm to 12 mm, 24 mm Lg - Box to End of Connector, Silver PK10

UPC: | Harmonization / Schedule B : 3917.40.0090

Country of Origin: United States | Shipping Weight: 0.5 lbs

$224.35 - $224.35
$224.35
$224.35 - $224.35
$224.35

HAEL 19000005081 CORD GRIPS 5-14MM

Cord Dia. Range 5 mm to 12 mm
Length - Box to End of Connector 24 mm
Size M20
Compatible Conduit Trade Size Not Available
Thread Size M20
Overall Length 30 mm
Width across corners 24.4 mm
Wrench size 22
Wire Rope Length 30 mm
Length 30 mm
Standards DNV GL, ELV Compliant, REACH ANNEX XIV Substances, REACH Annex XVII Substances, REACH SVHC Substances, RoHS Compliant, UL/CSA
Hazardous Location Rating Not Rated
Includes O-Ring
Series Han CGM-M
Box Connection M20
Maximum Operating Temperature 100 Degrees C
Thread Gender Male
For Maximum Cable OD 12 mm
Grommet Material Polyamide
Sealing Ring Material NBR
IP Rating IP68, IP69
Grommet Color Code No Code
Connection Orientation Straight
Body Material Brass
Minimum Operating Temperature -40 Degrees C
For Minimum Cable OD 5 mm
Liquid Tight Yes
Body Color Silver
Tightening torque ā‰¤10 Nm (depending on the cable and the seal insert used)
UL / CSA UL 514B QCRV.E479780 || CSA-C22.2 No. 18.3 QCRV7.E479780
Type of accessory Cable gland
Material (seal) NBR
Clamping range 5 ... 12 mm
Degree of protection acc. to IEC 60529 IP68 || IP69 / IPX9K acc. to ISO 20653
Series of hoods/housings Han
Surface (accessories) Nickel plated
Material (cable glands) Brass
Material (clamping ring) Polyamide (PA)
Approvals DNV GL
Limiting temperature -40 ... +100 Ā°C
Country of Origin United States
