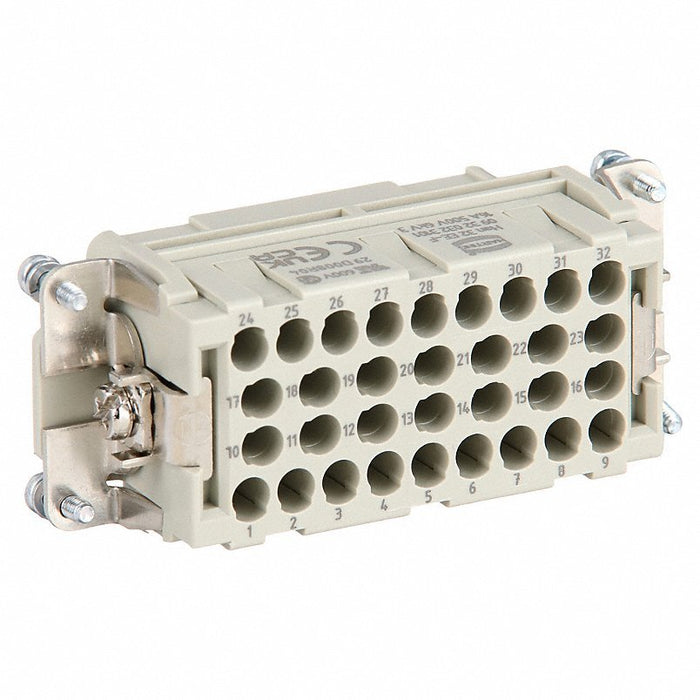

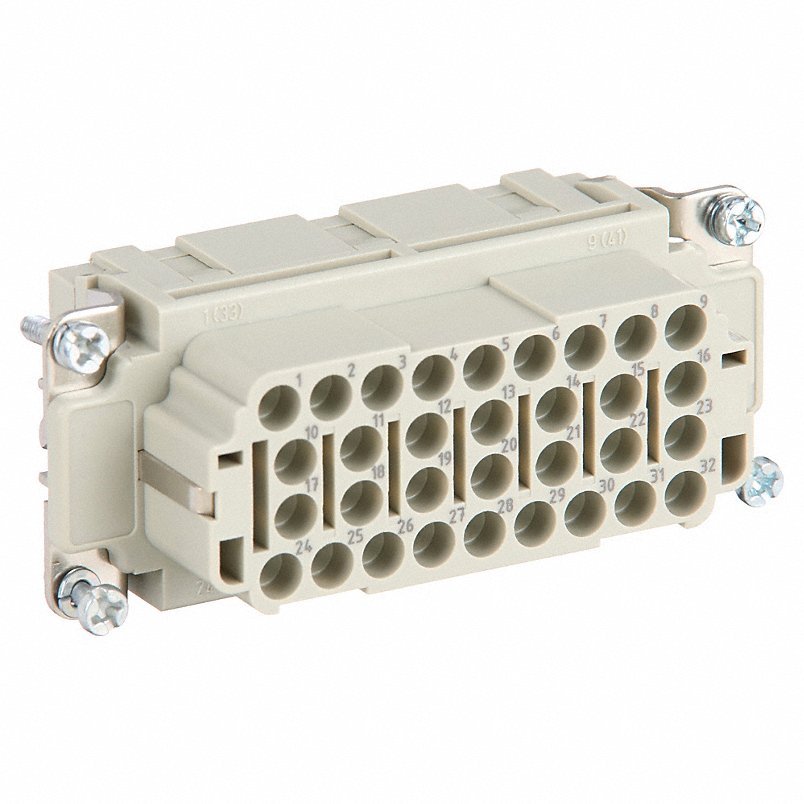

Harting 09320323101 Rectangular Connector Insert, 16 A
UPC: | Harmonization (Schedule B):
SKU KV793XD5
Original price
$42.23
-
Original price
$42.23
Original price
$42.23
$42.23
-
$42.23
Current price
$42.23
Crimp termination inserts for industrial connectors attach contacts using crimping tools. They make cold welds between conductors and inserts that resist corrosion.
| Color | Pebble Gray |
| Series | Han |
| Max. Voltage | 500V |
| Application | Industrial Connectors |
| Material | Polycarbonate |
| Item | Industrial Rectangular Connector Insert |
| Connector Gender | Female |
| Insert Material | Polycarbonate |
| Maximum Operating Temperature | 125 Degrees C |
| Number of Poles | 32 |
| Includes Poles | No |
| Voltage Rating | 500V, 600V (UL/CSA) |
| Minimum Mating Cycles | 500 |
| Insert Color | Gray |
| Current Rating | 16 A |
| Temperature Range | -40 Degrees C to 125 Degrees C |
| Minimum Insulation Resistance | 1.00 x 10^10 ohm |
| Connection Type | Crimp |
| Minimum Operating Temperature | -40 Degrees C |
| Terminal Type | Crimp |
| Green Environmental Attribute | Pollution Degree 3 |
| Standards | DNV GL; EN 60664-1; IEC 61984; UL 1977 ECBT2.E235076; UL 2237 PVVA2.E318390; CSA-C22.2 No. 182.3 PVVA8.E318390 |
| Sub-Category | Inserts |
| Connector Type | Female |
| Max. Temp. | 125°C |
| Number of Contacts | 32 |
| Flammability Rating | UL 94 V-0 |
| Package Quantity | 1 |
