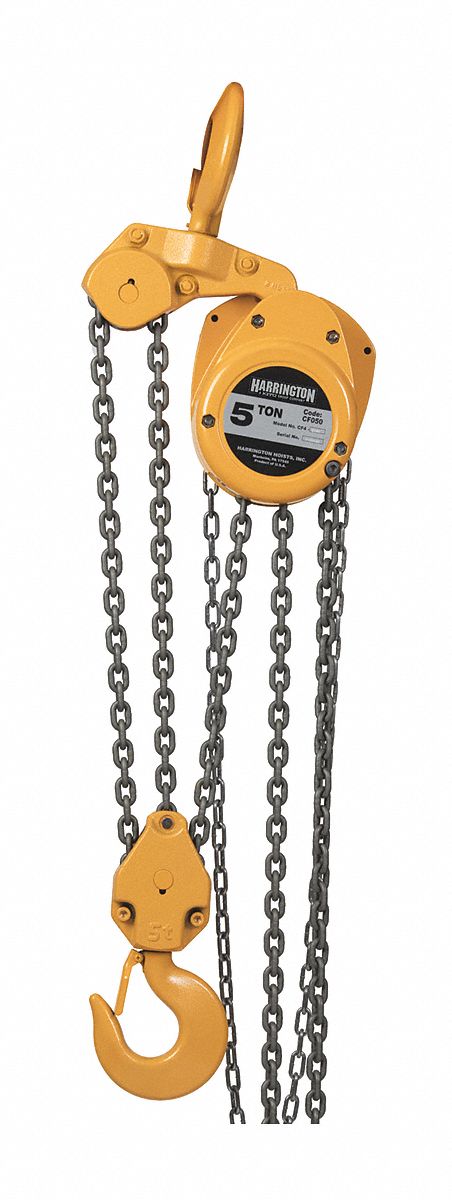

Harrington CF050-10 Manual Chain Hoist, Hook Mounted - No Trolley, 10,000 lb Lifting Capacity, 10 ft Lift Lg

Harrington CF050-10 Manual Chain Hoist, Hook Mounted - No Trolley, 10,000 lb Lifting Capacity, 10 ft Lift Lg

UPC: | Harmonization / Schedule B : 8425.19.0000

Country of Origin: United States | Shipping Weight: 85.0 lbs

$1,593.28 - $1,593.28
$1,593.28
$1,593.28 - $1,593.28
$1,593.28

Manual Chain Hoist, Chain Length 11 ft, Headroom 24 13/32 in, Includes Brake Brake Included, Lifting Hook Type Hook with Safety Latch, Maximum Lifting Capacity 10,000 lb, Maximum Lifting Length 10 ft, Mount Type Hook Mounted - No Trolley, Body Depth 6 in, Body Material Die-Cast Aluminum, Body Width 13 1/2 in, Brake Type Weston Style, Chain Grade Grade 100, Chain Material Manganese Alloy, Color Yellow

Housing Length 24 3/8 in
Housing Width 13 1/2 in
Housing Depth 6 in
Manufacturers Warranty Length 2 yr
Body Depth 6 in
Chain Length 11 ft
Minimum Retracted Length 24 13/32 in
Lifting Hook Opening Width 1 13/16 in
Body Width 13 1/2 in
Mfr. Warranty Length 2 yr
Maximum Lifting Length 10 ft
Load Capacity 10,000 lb
Hoist Lift 10 ft
Hoist Mount Hook Mounted - No Trolley
Hoist Overload Protection No
Pull to Lift Rated Load 92 lb
Min. Between Hooks 24 1/2 in
Hook Opening 1 13/16 in
Trolley Configuration Hook Mounted - No Trolley
Standards ANSI/ASME B30.16, ANSI/ASME HST-2M
Brake Weston Style Brake
Includes Heat Treated Alloy Steel Hooks
Features Heat-Treated Main Pinion Shaft, Lightweight Die-Cast Aluminum Housing, Reliable Weston-Style Load Brake, Smooth Running Pre-Lubricated Bearings
Color Yellow
Chain Finish Nickel Plated
Includes Clutch Clutch Not Included
Number of Reeves 3
Resistance Properties Abrasion Resistant, Moisture Resistant, Wear Resistant
Body Material Die-Cast Aluminum
Mount Type Hook Mounted - No Trolley
Lifting Hook Material Carbon Steel
Brake Type Weston Style
Includes Brake Brake Included
Operating Position Vertical
Lifting Hook Type Hook with Safety Latch
Chain Grade Grade 100
Overload Protection Included No
Power Source Manual
Number of Load Chains 1
Maximum Lifting Capacity 10,000 lb
Headroom 24 13/32 in
Chain Material Manganese Alloy
Included Components Safety Latch Hooks
Power Source - TS Only Manual
Power Source - old Manual
Country of Origin United States
