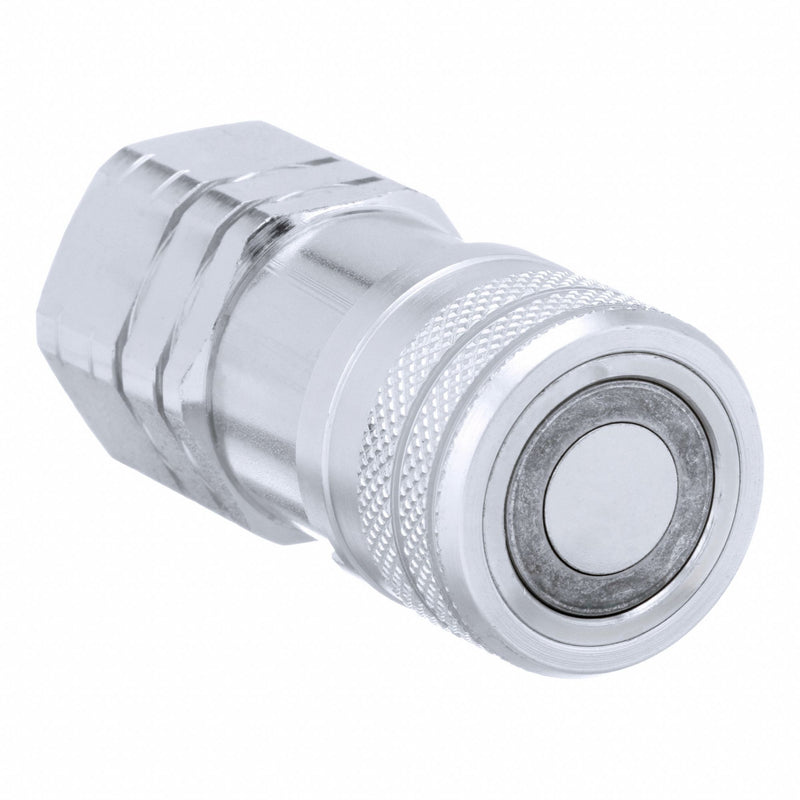

Hansen 12FFS50 Hydraulic Quick Connect Hose Coupling, Socket x Female NPT Threaded, Clear Chromate Steel

Hansen 12FFS50 Hydraulic Quick Connect Hose Coupling, Socket x Female NPT Threaded, Clear Chromate Steel

UPC: | Harmonization / Schedule B : 7307.22.5000

Country of Origin: United States | Shipping Weight: 1.05 lbs

$204.29 - $204.29
$204.29
$204.29 - $204.29
$204.29

Hydraulic Quick Connect Hose Coupling, Socket, FF Series, Steel, Coupling Size 1/2 in, Female, Max. Working Pressure @ 70 F 5,075 psi, Max. Flow Rate 55 lpm

Thread Size 1/2"-14
Coupler Thread Size 1/2"-14
Coupler Body Size 1/2"
Overall Length 3 1/4 in
Coupling Size 1/2 in
Max. Outside Dia. 1 9/16 in
Wire Rope Length 3 1/4 in
Body Material Steel
Seal Material Buna-N
Coupling Locking Type Push-to-Connect
Max. Pressure 5075 psi
Connection Type Threaded
Shut Off Flat Face
For Use With 12FFP75UN, 12FFP87UN, Mfr. No. 12FFP50
Sleeve Material Zinc Plated Steel
Series FF
Coupler Finish Clear Chromate
Quick Coupler Type Hydraulic Coupler Body
Coupler Flow Rate 12.0 gpm
Bearing Material Stainless Steel
Coupler Connection Type FNPT
Valve Design Tubular
Coupler Interchange Type HTMA
Parker Interchange FEM-501-8FP; FEM-501-8FP-NL
Standards ISO 16028
Locking Mechanism Standard Sleeve Lock
Seal Type Buna N
Operating Temp. Range -4 Degrees to 212 Degrees F
Coupler Body Material Zinc Plated Steel
Hansen Interchange 12FFS50
Includes Bearing Yes
Snap-Tite Interchange 74C8-8RP
Max. Flow Rate 55 lpm
Hose Fitting Gender Female
Max. Working Pressure @ 70 F 5,075 psi
Pull Ring Material PTFE
Finish/Coating Clear Chromate
Valve Type Two-Way
Includes Valve Yes
Includes Shut Off Yes
Coupling Component Socket
Fitting Type FNPT
Maximum Vacuum 27.4 in Hg
Compatible Manufacturer Part Number 12FFP75UN, 12FFP87UN, 12FFP50
Compatible with Manufacturer Model Number 12FFP75UN, 12FFP87UN, 12FFP50
Country of Origin United States
