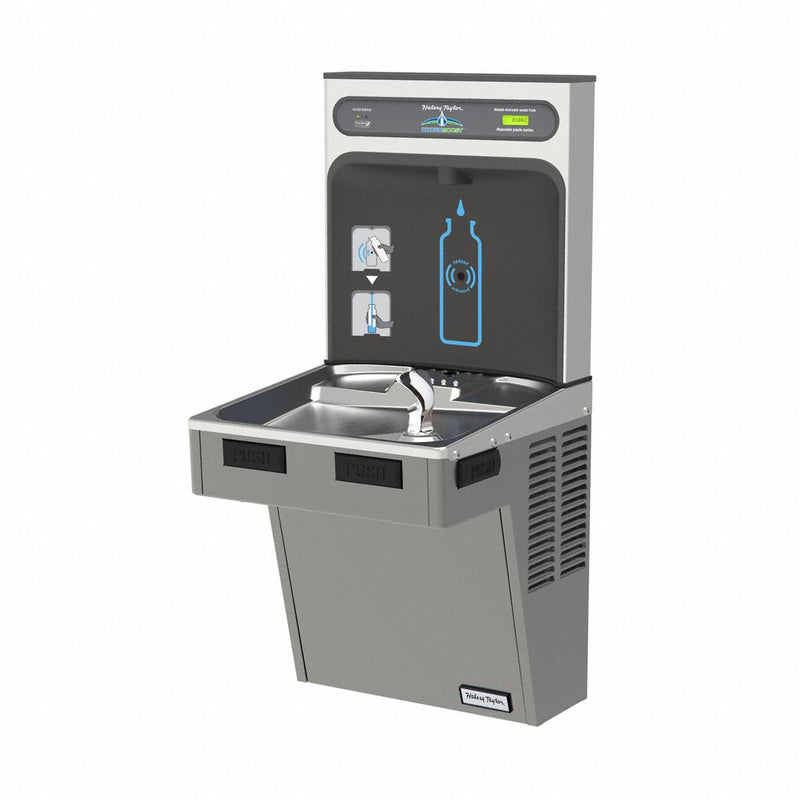

Halsey Taylor HTHB-HAC8PV-WF Drinking Fountain with Bottle Filler, Wall Mount, 8 gph @ 50°F, Steel, Silver, ADA, Filtered

Halsey Taylor HTHB-HAC8PV-WF Drinking Fountain with Bottle Filler, Wall Mount, 8 gph @ 50°F, Steel, Silver, ADA, Filtered

UPC: 094902042800 | Harmonization / Schedule B : 8418.69.0120

Country of Origin: United States | Shipping Weight: 84 lbs

$2,443.34 - $2,443.34
$2,443.34
$2,443.34 - $2,443.34
$2,443.34

Drinking Fountain with Bottle Filler, Station Type Bottle Filling Dispenser, Single Fountain, Fountain Actuation Front Pushbar/Side Pushbar, Bottle Dispenser Actuation Sensor, Includes Water Filter Water Filter Included, ADA Compliant ADA Compliant, Cooling Capacity 8 gph @ 50 Degrees F, Housing Color Silver, Housing Finish Platinum Vinyl, Overall Height 39 3/4 in, Overall Depth 18 1/2 in, Overall Width 17 7/8 in, Mounting Location Wall Mount

Indoor / Outdoor Indoor
Mounting Type On-Wall
Color Silver
Voltage 115 V AC
Drain Connection 1 1/4 in
Number of Levels 1
Cold Water Capacity 8 gph
Water Temp. 50 Degrees F
Inlet 3/8 in OD
Dispenser Design Wall
Refrigerated / Non-Refrigerated Refrigerated
Full Load Amps 4 A
Standards ADA and ICC A117.1, ASME A112.19.3/CSA B45.4, Buy American Act, CAN/CSA C22.2 No. 120, GreenSpec, NSF/ANSI 372, NSF/ANSI 42, NSF/ANSI 53, NSF/ANSI 61, UL 399
Vandal Resistant No
Refrigerant R134A
Compressor HP 1/5 hp
Regulator Maintains Constant Stream Height at Line Pressures of 20 to 105 psi
Includes Filter
ADA Compliant Yes
Dispenser Operation Electronic Sensor (Bottle), Front and Side Pushbar (Fountain)
Operation Push Bar Fountain, Touchless Bottle Filler
Features Green Counter, Laminar Flow, Mechanically Activated, Real Drain, Visual Filter Monitor
Power Source Electric Corded
Cooling Capacity 8 gph @ 50 Degrees F
Refrigerant Type R134A
Power Consumption 370 W
Includes Water Filter Yes
Number of Bubblers 1
Basin Material Stainless Steel
Full Load Current 6 A
Temperature Adjustment Factory Set but Adjustable
Minimum Supply Line Pressure 40 psi
Compressor Horsepower 1/5 hp
Bi-Level Field Adjustable No
Filter Status Indicator Yes
Station Type Bottle Filling Dispenser, Single Fountain
Bottle Dispenser Actuation Sensor
Maximum Constant Stream Pressure 105 psi
Bubbler Finish Chrome Plated
Includes Pet Bowl No
Housing Finish Platinum Vinyl
Operating Voltage 115V AC
Refrigeration Refrigerated
Fountain Actuation Front Pushbar/Side Pushbar
Includes Back Panel No
Maximum Cold Water Temperature 50 Degrees F
Antimicrobial Yes
Housing Color Silver
Environment Indoor
Minimum Constant Stream Pressure 20 psi
Number of Mounting Holes 6
Plug Type Three Prong
Country of Origin United States
