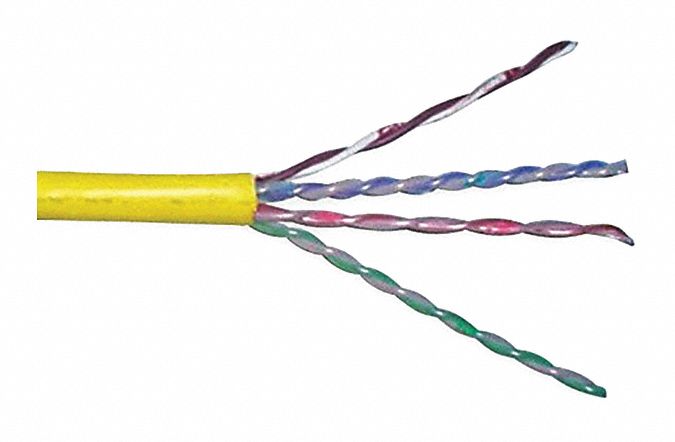

Genspeed 7133902 Category Cable, 1, 000 ft Cable Lg, 23 AWG, Riser, Yellow, PVC, Enhanced, 7133902, 6, Solid

Genspeed 7133902 Category Cable, 1, 000 ft Cable Lg, 23 AWG, Riser, Yellow, PVC, Enhanced, 7133902, 6, Solid

UPC: 079407339020 | Harmonization / Schedule B : 8544.49.1000

Country of Origin: United States | Shipping Weight: 27.35 lbs

$617.08 - $617.08
$617.08
$617.08 - $617.08
$617.08

Category Cable, Cable Length 1,000 ft, Conductor Gauge 23 AWG, Fire Rating Riser, Jacket Color Yellow, Jacket Material PVC, Outside Diameter 1/4 in, Performance Category 6, Shielded Unshielded, Number of Conductors 8, Number of Pairs 4, NEC Article and Type 800 CMR, Standards ANSI/TIA 568-C.2, ANSI/TIA 862, ICEA S-102-700, ICEA S-116-732, ISO/IEC 11801 Ed. 2.0 (Class E), NEC/CEC Type CMR (UL 1666), UL 444, Package Type Pulling Pack, Solid/Stranded Solid, Bend Radius 1 in

Standards ANSI/TIA 568-C.2, ANSI/TIA 862, ICEA S-102-700, ICEA S-116-732, ISO/IEC 11801 Ed. 2.0 (Class E), NEC/CEC Type CMR (UL 1666), UL 444
Performance Category 6
Operating Temp. Range -20 Degrees to 9 Degrees C
Green Environmental Attribute RoHS 2011/65/EU Compliant
Jacket Material PVC
Package Type - Data Cable Pulling Pack
Pulling Force 32 lb
Category Type 6
Item - Data Cable Category Cable
Plenum Rated No
Fire Rating - Data Cable Riser
Shielded / Unshielded Unshielded
Jacket Color Yellow
Category - Data Cable 6
Jacket Material (Wire and Cable) PVC
Solid / Stranded Solid
Shielded Unshielded
NEC Article and Type 800 CMR
Jacket Material - Wire and Cable PVC
Frequency 350 MHz
Number of Conductor Pairs 4
Installation Temp. Range 0 Degrees to 60 Degrees C
Total Number of Conductors - Data Cable 8 (4 Pair)
Package Type Pulling Pack
Fire Rating Riser
Maximum Frequency 350 MHz
Number of Conductors 8
Minimum Operating Temperature -4 Degrees F
Conductor Gauge 23 AWG
Solid/Stranded Solid
Number of Pairs 4
Maximum Operating Temperature 167 Degrees F
Country of Origin United States
