Gates AX32 Cogged V-Belt, AX32, 34 in Outside Lg, 1/2 in Top Wd, 5/16 in Thick, Polyester

Gates AX32 Cogged V-Belt, AX32, 34 in Outside Lg, 1/2 in Top Wd, 5/16 in Thick, Polyester

UPC: | Harmonization / Schedule B : 8483.90.9500

Country of Origin: United States | Shipping Weight: 0.1 lbs

$20.53 - $20.53
$20.53
$20.53 - $20.53
$20.53

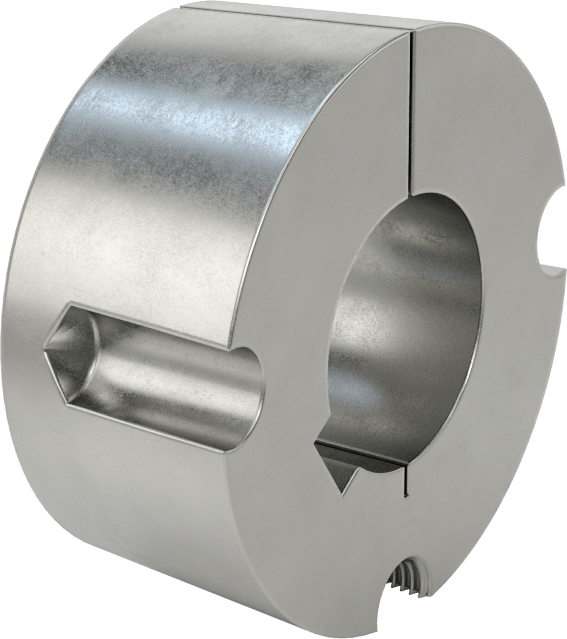

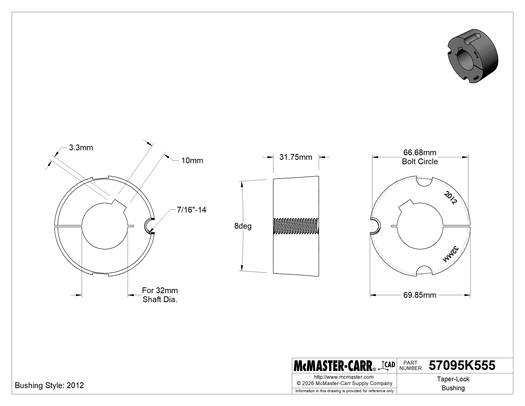

Mount these hubless bushings flush into your sprocket or pulley for a slim profile with no protruding screws. They are for use with taper-lock sprockets of the same bushing trade number. As you tighten the included set screws, the bushing grips the shaft and pulls it into your sprocket or pulley.

Material Steel
Bushing Trade Number 2012
For Shaft Diameter 32 mm
Overall Width 32 mm
Width 10 mm
Depth 3.3 mm
Taper 8°
Fastener Tightening Torque 280 in·lbf
Includes Set Screws
Bushing Type Taper Lock
For Shaft Type Keyed
ID 32 mm
Shaft Mount Type Clamp On
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN) EAR99
REACH Compliance REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 848390.9500
U.S.–Mexico–Canada Agreement (USMCA) Qualifying Yes
