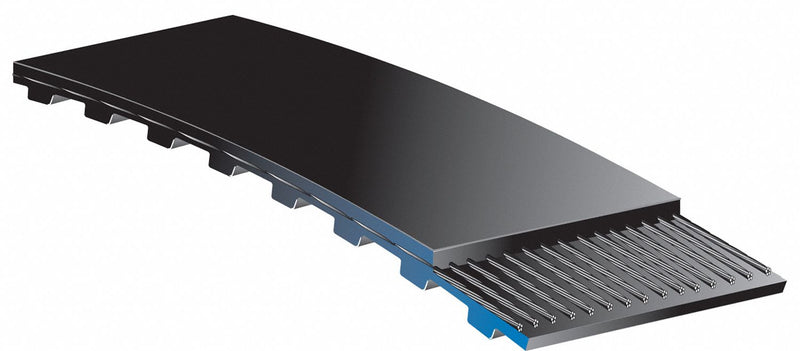

Gates 240L050 PowerGrip Timing Belt L Section 64 Teeth

Gates 240L050 Timing Belt, One Side, PowerGrip, 0.375 in Pitch, 1/2 in Top Wd, 64 Teeth, Neoprene

UPC: 072053564242 | Harmonization / Schedule B : 4010.39.5000

Country of Origin: United States | Shipping Weight: 0.06 lbs

$31.66 - $31.66
$31.66
$31.66 - $31.66
$31.66

L section trapezoidal timing belts have a medium 0.375 in. pitch, where the "L" designation indicates "light" belts. They have reinforcing fiberglass cords that resist stretching over time, ensuring dimensional stability. These timing belts should be paired with a compatible L section pulley and are used in light drive applications commonly found in outdoor equipment and sorting machines.

Belt Series PowerGrip®
Industry Number 240L050
Tooth Location One Side
Tooth Profile Trapezoidal
Timing Belt Section L
Pitch 0.375 in
Top Width 1/2 in
Number of Teeth 64
Pitch Length 24 in
Length Type Closed Loop
Belt Material Neoprene
Reinforcing Cord Material Fiberglass
Color Black
Minimum Operating Temperature -22 °F
Maximum Operating Temperature 212 °F
Application General Industry
