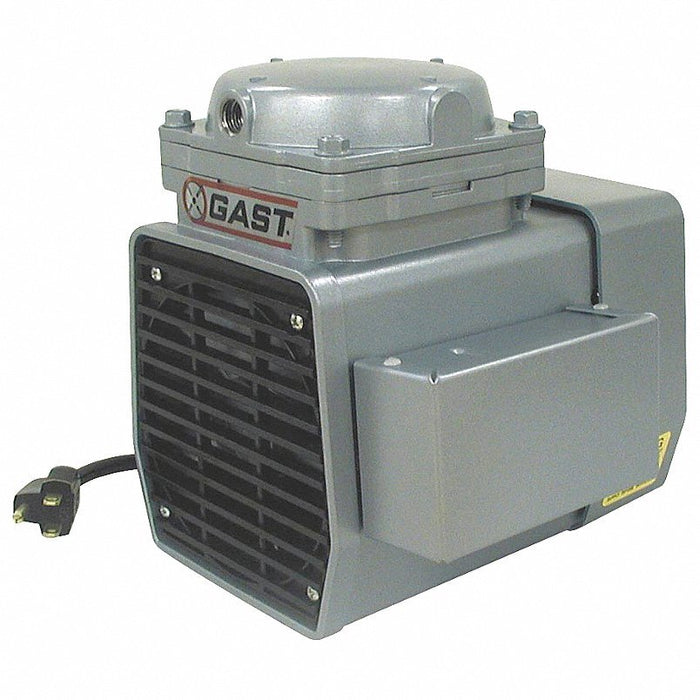

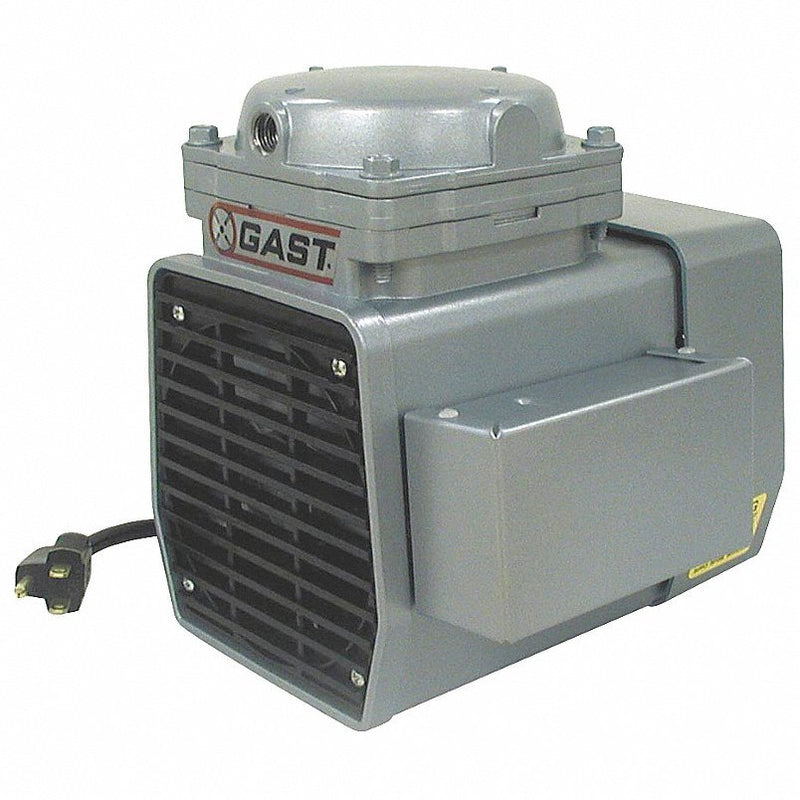

Gast DOA-P707-FB Compressor/Vacuum Pump, 1/3 HP, 50/60 Hz
UPC: 695977809376 | Harmonization (Schedule B): 8414.80.1605
SKU KV4Z024
Original price
$641.99
-
Original price
$641.99
Original price
$641.99
$641.99
-
$641.99
Current price
$641.99
Compressor/Vacuum Pump, Output Power 1/3 hp, Voltage 110/115V AC, Maximum Vacuum 25.5 in Hg, Maximum Continuous Pressure 60 psi, Maximum Intermittent Pressure 60 psi, Maximum Flow Rate 0.9 cfm @ 30 psi, 1.9 cfm @ 0 psi, Inlet Size 1/4 in, Inlet Connection Type NPT, Outlet Size 1/4 in, Outlet Connection Type NPT, Compressor Type Diaphragm, Current Rating 3.3 A, 4.8 A
| Item | Compressor/Vacuum Pump |
| Compressor Type | Diaphragm |
| HP | 1/3 hp |
| Voltage | 110/115V AC |
| Full Load Amps | 4.8/3.3 |
| Max. Vacuum | 25.5 in Hg |
| Max. PSI Cont./Int. | 60/60 |
| Free Air CFM @ 0 PSI | 1.9 |
| Hz | 50/60 |
| Free Air CFM @ 20 Vacuum | 0.3 |
| Free Air CFM @ 0 Vacuum | 1.9 |
| Free Air CFM @ 30 PSI | 0.9 |
| Pump Type | Diaphragm |
| Inlet Connection Type | NPT |
| Maximum Vacuum | 25.5 in Hg |
| Maximum Flow Rate @ Pressure | 0.9 cfm @ 30 psi |
| Max. Pressure Cont/Int | 60 psi / 60 psi |
| Outlet Connection Type | NPT |
| Flow Rate @ 0 psi | 1.9 cfm |
| Maximum Continuous Pressure | 60 psi |
| Output Power | 1/3 hp |
| Frequency | 50 Hz, 60 Hz |
| Maximum Intermittent Pressure | 60 psi |
| Maximum Flow Rate | 0.9 cfm @ 30 psi, 1.9 cfm @ 0 psi |
| Current Rating | 3.3 A, 4.8 A |
| Flow Rate @ 30 psi | 0.9 cfm |
| Inlet Connection Type | NPT |
| Outlet Connection Type | NPT |
| Package Quantity | 1 |
