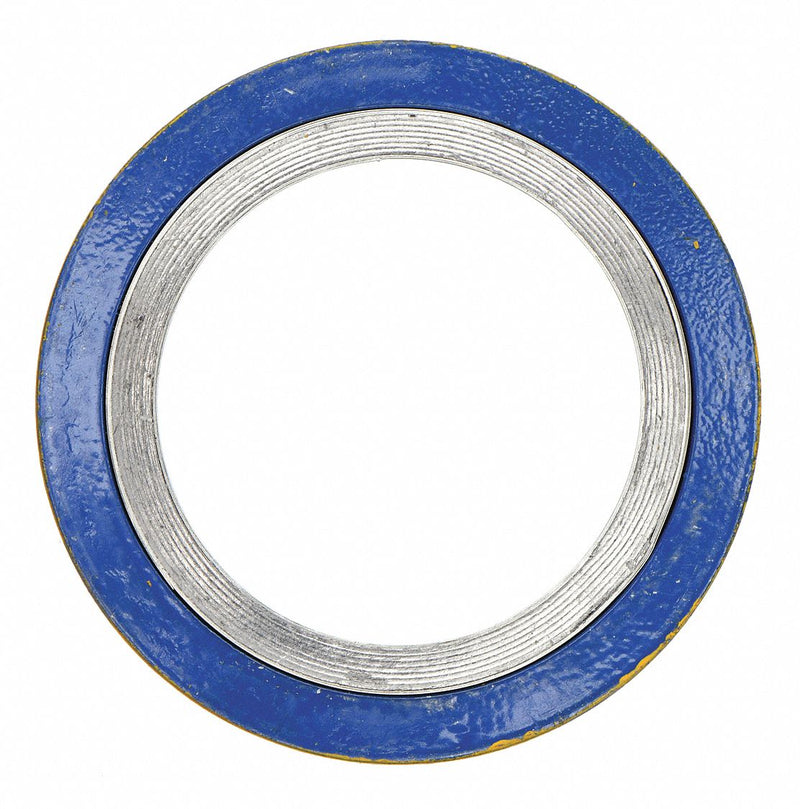

Garlock C000502501 Spiral Wound Flange Gasket, Graphite Filler, 304 Stainless Steel Winding, For 2 1/2 in Pipe

Garlock C000502501 Spiral Wound Flange Gasket, Graphite Filler, 304 Stainless Steel Winding, For 2 1/2 in Pipe

UPC: | Harmonization / Schedule B : 8484.20.0000

Country of Origin: India | Shipping Weight: 0.31 lbs

$9.57 - $9.57
$9.57
$9.57 - $9.57
$9.57

Spiral Wound Flange Gasket, For Flange ANSI Class 150, For Pipe Size 2 1/2 in, Inside Diameter 3 1/4 in, Outside Diameter 4 7/8 in, Thickness 3/16 in, Rim Stripe Color Gray, Outside Rim Color Yellow, Filler Material Graphite, Outer Ring Material Carbon Steel, Minimum Operating Temperature -320 Degrees F, Maximum Operating Temperature 850 Degrees F, Spiral Winding Material Stainless Steel, Spiral Winding Stainless Steel Grade 304, Inner Ring Material None

Pipe Size 2 1/2 in
Outside Dia. 4 7/8 in
Inside Dia. 3 1/4 in
Thickness 3/16 in
Spiral Winding Outside Diameter 3 15/16 in
For Pipe Size 2 1/2 in
Inside Diameter 3 1/4 in
Material of Construction 304SS and Flexible Graphite
Flange Class Class 150
Color Yellow With Gray Band
Product Type Spiral Wound Metal Gasket
Metal Detectable Yes
Winding 3.88 in OD
Continuous Max. Temp. (F) 850 Degrees F
Temp. Range (F) -320 To 850
Standards ASME B16.20, ASME/ANSI Pressure Class-150 LB
Type ANSI class 150 lb flange
FDA Approved No
For Flange ANSI Class 150
Spiral Winding Stainless Steel Grade 304
Outside Rim Color Yellow
Inner Ring Material None
Spiral Winding Material Stainless Steel
Outer Ring Material Carbon Steel
Filler Material Graphite
Rim Stripe Color Gray
System of Measurement Inch
Minimum Operating Temperature -320 Degrees F
Maximum Operating Temperature 850 Degrees F
Country of Origin India
