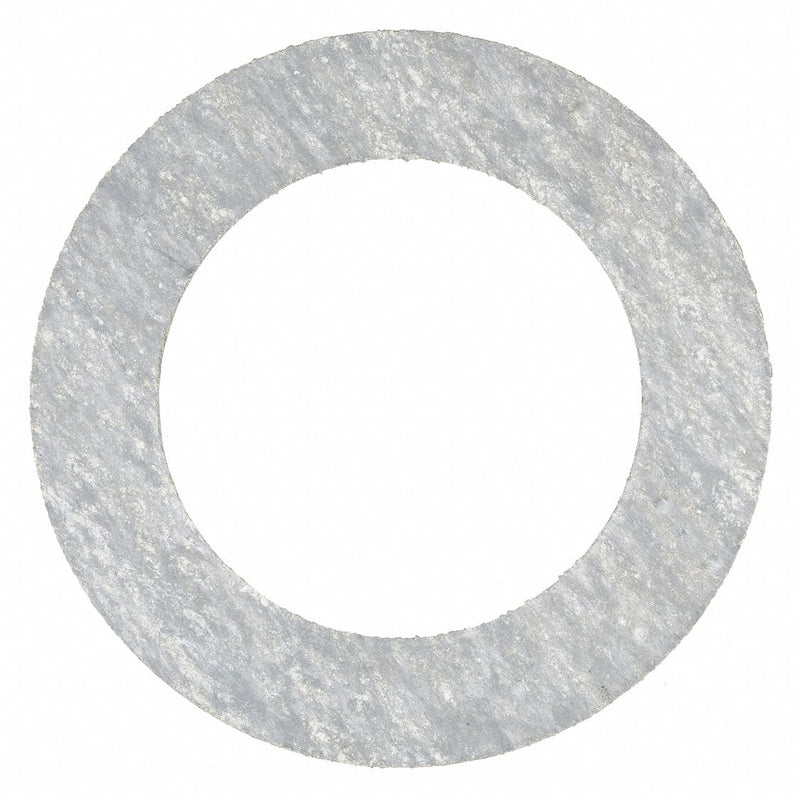

Garlock 37555-0103 Ring Flange Gasket, Class 150, Inorganic Fiber, Buna-N Binder, For 3 in Pipe, 1/16 in Thick

Garlock 37555-0103 Ring Flange Gasket, Class 150, Inorganic Fiber, Buna-N Binder, For 3 in Pipe, 1/16 in Thick

UPC: | Harmonization / Schedule B : 6815.99.4170

Country of Origin: Mexico | Shipping Weight: 0.06 lbs

$4.06 - $4.06
$4.06
$4.06 - $4.06
$4.06

Ring Flange Gasket, Gasket Material Inorganic Fiber, Insert Material None, For Pipe Size 3 in, For Flange ANSI Class 150, Binder Material Buna-N, Color Gray, Inside Diameter 3 1/2 in, Minimum Operating Temperature -100 Degrees F, Maximum Operating Temperature 800 Degrees F, Outside Diameter 5 3/8 in, Thickness 1/16 in, Product Type Ring Gasket, Metal Detectable Gasket No, Hardness Not Rated, Includes Mounting Hardware No, X-Ray Detectable No

Pipe Size 3 in
Outside Dia. 5 3/8 in
Inside Dia. 3 1/2 in
Thickness 1/16 in
Inside Diameter 3 1/2 in
For Pipe Size 3 in
MFR # 37555-0103
Zoro # G0484662
UPC # -
Country of Origin Mexico
Material of Construction Inorganic Fiber with Nitrile Binder
Max. Pressure (PSI) 1,200 psi
Flange Class Class 150
Color Gray
Product Type Ring Gasket
Metal Detectable No
Temp. Range (F) -100 to 550
Type Ring Gasket
Continuous Max. Temp. (F) 550 Degrees F
Standards ASME B16.21, ASME/ANSI Pressure Class-150 LB
For Fluid Type Aliphatic Hydrocarbons, Gasoline, Oil, Refrigerants, Steam, Water
Metal Detectable Gasket No
For Flange ANSI Class 150
FDA Approved No
Binder Material Buna-N
Reinforced No
Insert Material None
X-Ray Detectable No
Resistance Properties Chemical-Resistant
Minimum Operating Temperature -100 Degrees F
Maximum Operating Temperature 800 Degrees F
Hardness Not Rated
System of Measurement Inch
Gasket Type Ring Gasket
Gasket Material Inorganic Fiber
Country of Origin Mexico (subject to change)
