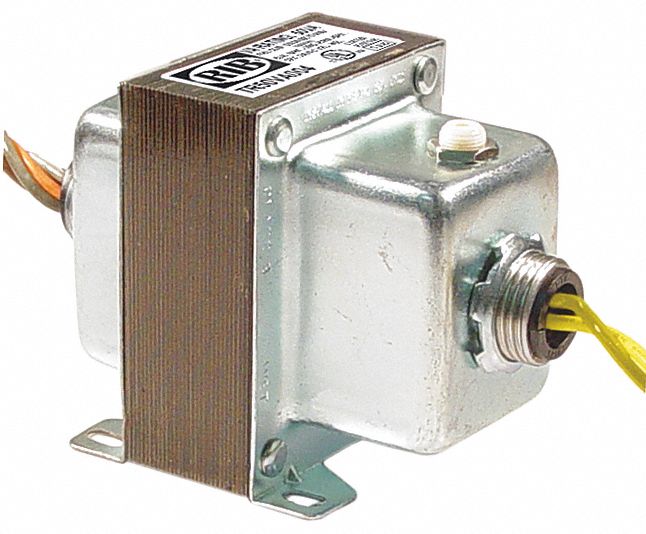

Functional Devices RIB TR50VA004 Class 2 Transformer

Functional Devices RIB TR50VA004 Class 2 Transformer, 50 VA, 120/240/277/480V AC to 24V AC

UPC: | Harmonization / Schedule B : 8504.31.4065

Country of Origin: Vietnam | Shipping Weight: 2.90 lbs

$68.60 - $68.60
$68.60
$68.60 - $68.60
$68.60

Functional Devices RIB TR50VA004 Class 2 control transformer. 50 VA rating. Input 120/240/277/480V AC; output 24V AC. Single phase, 50/60 Hz. Open enclosure with dual 1/2 in hub + foot mounting. Pigtail primary connection, 8 in lead secondary. Includes built-in circuit breaker protective device. UL Listed (Class 2 UL1585, E197146), CE, RoHS. Operating temperature -30 to 140 F.

Input Voltage 120/240/277/480V AC
Output Voltage 24V AC
Power Rating 50 VA
Phase 1
Mounting Dual 1/2 in Hub; Foot
Frequency 50/60 Hz
Enclosure Style Open
NEMA Enclosure Rating Not Rated
Primary Connection Pigtails
Secondary Connection 8 in Leads
Includes Circuit Breaker
Protective Device Circuit Breaker
Standards CE, RoHS, UL Listed (Class 2 UL1585, E197146)
Operating Temperature -30 to 140 Degrees F
Country of Origin Vietnam
