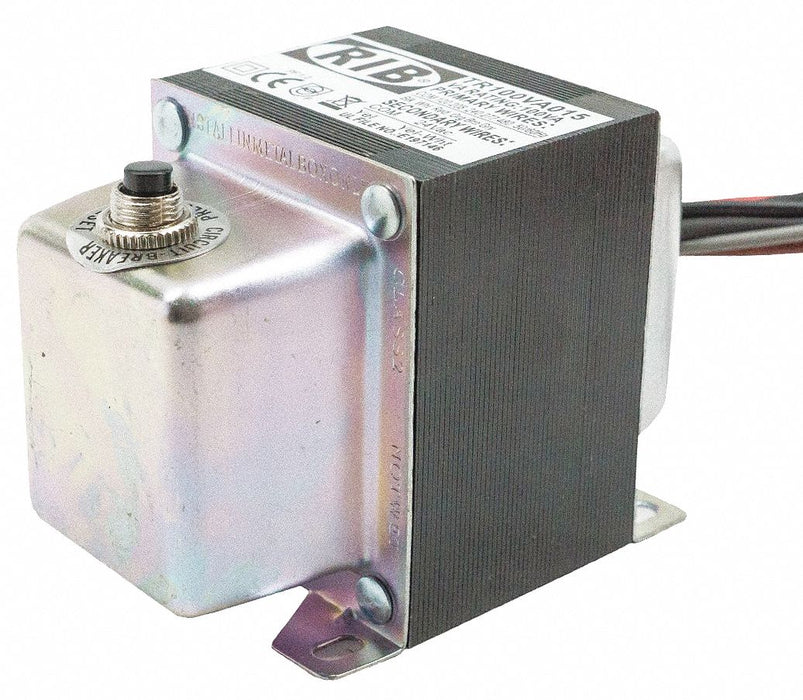

Functional Devices / RIB TR100VA015 Class 2 Transformer, 100 VA, 24V AC, 120/208/240/277/480V AC, Circuit Breaker

Functional Devices / RIB TR100VA015 Class 2 Transformer, 100 VA, 24V AC, 120/208/240/277/480V AC, Circuit Breaker

UPC: | Harmonization / Schedule B : 8504.31.4085

Country of Origin: Vietnam | Shipping Weight: 3 lbs

$83.50 - $83.50
$83.50
$83.50 - $83.50
$83.50

Class 2 Transformer, Input Voltage - Transformer 120V AC, 208V AC, 240V AC, 277V AC, 480V AC, Output Voltage - Transformer 24V AC, VA Rating - Transformer 100 VA, Protective Device Circuit Breaker, Enclosure Style - Transformer Open, Mounting - Transformer 1/2 in Hub, Foot, Phase - Electrical 1, Hz - Electrical 50 Hz, 60 Hz, Primary Connection 8 in Leads, Secondary Connection 8 in Leads, Temp. Rise Not Rated, Enclosure Finish No Finish

Input Voltage - Transformer 120/208/240/277/480V AC
Output Voltage 24V AC
Power Rating 100 VA
Phase Single
Mounting - Transformer 1/2 in Hub; Foot
Hz - Electrical 50/60 Hz
Temperature Rise Not Rated
Enclosure Type Enclosed
Secondary Connection 8 in Leads
Enclosure Style - Transformer Open
Standards CE, RoHS, UL Listed
Protective Device Circuit Breaker
Primary Connection 8 in Leads
Enclosure Finish No Finish
Primary Voltage 120 VAC
Application Power Controller, Powering Sensors, Driving Relays, Driving Digitals I/O Circuits, Voltage Reduction, Magnetic Switches
Approvals Class 2 UL1585 listed US/Canada, E197146
Termination Leads
Connection - Primary Wire Lead
Operating Temperature - Minimum -30 Degrees F
Connection - Secondary Wire Lead
Operating Temperature - Maximum 140 Degrees F
Country of Origin Viet Nam
