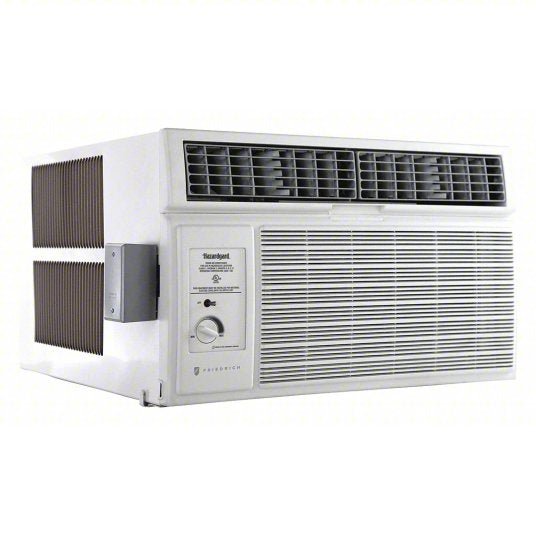

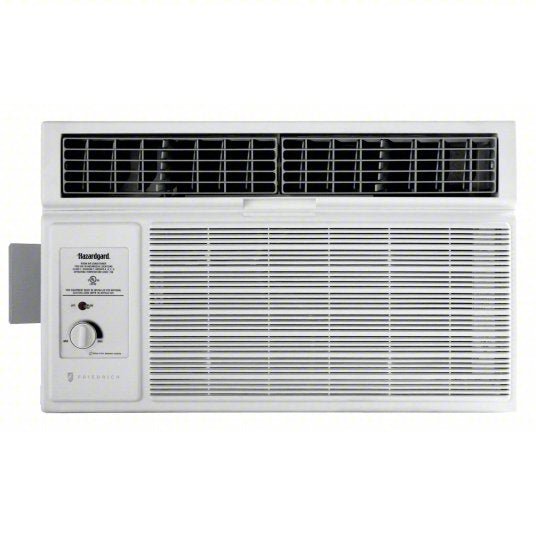

Friedrich SH20M30B Hazardous Location Air Conditioner 21,000/21,000 BtuH, 700 to 1000 sq ft, Cooling Only

UPC: 724587431834 | Harmonization / Schedule B : 8415.10.3060

Country of Origin: | Shipping Weight:

Original price $6,071.06 - Original price $6,071.06
Original price
$6,071.06
$6,071.06 - $6,071.06
Current price $6,071.06
Hazardous Location Air Conditioner, Duty Rating Commercial Grade, Average Coverage Area 700 to 1000 sq ft, Cooling Only, Cooling Capacity 21,000/21,000 BtuH, Cooling Only, 9.6/9.7 EER, 8.5/9.4 A Amps, 1965/1970 W Watts, Voltage 208/230V AC, 60 Hz Hz, NEMA Plug Configuration - HVAC Hardwired, Control Type Mechanical, Dehumidification Rate 5.5 lb/hr, Programming Capability Not Programmable, Remote Control Functions No Remote Control Included, Smart Connectivity No Connectivity
Voltage 208/230V AC
BtuH Cooling 19,500
Includes Filter for Protection Against Fungal and Bacterial Growth, Seacoast Protection, Sleeve and Chassis, Washable
Watts 1965/1970 W
EER 9.6/9.7
Voltage - Air Conditioners and Heat Pumps 208/230VAC
Hz 60 Hz
BtuH 19,000/19,000
Remarks Fan Runs Continuous When Unit is Switched On, Thermostat Cycles Compressor, Hot Gas Bypass Low Ambient Control to Permit Operation Without Freezing At Outdoor Ambient Temperature As Low As 45 F, Hermetically Sealed Refrigeration System, Run Capacitor Withstands Voltage Overloads Up to 440 Volts, Utilizes Direct-Wired, 15-Amp Circuit With Time-Delay Fuse That Will Tolerate Surge Current Without Tripping The Breaker
Dehumidification 5.5 pph
Color Gray
Sleeve Yes
Amps 8.5/9.4 A
Air Flow Direction 8 Way
High CFM 375
Fan Speeds Cooling 1
Fan-Only Speeds 1
Standards ANSI/UL 484 Room A/C, UL Listed For Use in Class I, Division 2, Groups A, B, C and D, ISA 12.12.101, NFPA 70
Control Type Mechanical
Max. Wall Thickness 6 in
Item - Air Conditioners and Heat Pumps Hazardous Location Air Conditioner
Chassis Type Medium
Refrigerant Type R-410A
Heating Method Cooling Only
Dehumidification Rate 5.5 lb/hr
Mounting Sleeve Included Yes
Smart Connectivity No Connectivity
Programming Capability Not Programmable
Operation Mode - HVAC Cooling Only
Cooling Capacity 21,000/21,000 BtuH
Seacoast Corrosion Protection Rear Coil
NEMA Plug Configuration - HVAC Hardwired
Number of Speeds 1
Duty Rating Commercial Grade
Remote Control Functions No Remote Control Included
