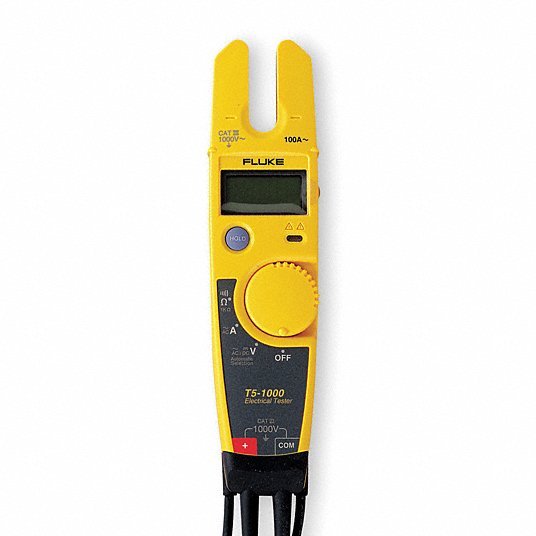

Fluke-T5-1000 NIST Clamp Meter, LCD, 100 A, 0.5 in (13 mm) Jaw Capacity, CAT III 1000V, CAT IV 600V Safety Rating
UPC: 095969056571 | Harmonization (Schedule B): 9030.31
Original price
$379.10
-
Original price
$379.10
Original price
$379.10
$379.10
-
$379.10
Current price
$379.10
| /
Digital Clamp Meter, Audible Continuity Yes, Safety Rating CAT III 1000V, CAT IV 600V, AC Response Calculation Average, Maximum AC Current Measurement 100 A, Maximum AC Voltage Measurement 1,000 V, Maximum DC Current Measurement Not Applicable, Maximum DC Voltage Measurement 1,000 V, Current Leakage Testing No, Parameters Measured AC Current, AC Voltage, DC Voltage, Intrinsically Safe No, Dustproof Yes, Waterproof Yes, Data Logging Yes, Thermal Imaging No, Removable Screen No
| Item |
Digital Clamp Meter |
| Digital/Analog |
Digital |
| Max. AC Amps |
100 |
| Clamp Meter Jaw Style |
Split |
| Max. DC Volts |
1,000 V |
| Max. Ohms |
1,000 |
| Jaw Capacity |
0.5 in (13 mm) |
| Safety Rating |
CAT III 1000V, CAT IV 600V |
| Display |
LCD |
| Max. AC Volts |
1,000 V |
| Calibration Frequency |
45 to 66 Hz |
| Calibration Certificate |
NIST |
| Battery Type |
AA |
| AC Current Accuracy |
+/-2.0% + 5 Digits |
| AC Response |
Average |
| Operating Temp. |
14 Degrees to 122 Degrees F |
| Counts |
1,000 |
| Data Hold |
Yes |
| Includes |
Batteries, Instructions |
| Auto Ranging |
Yes |
| Audible Continuity |
Yes |
| Auto Power Off |
Yes |
| Frequency Measurement Resolution |
45 Hz |
| Basic DC Voltage Accuracy |
1% +/- 1 count |
| Basic DC Current Accuracy |
Not Applicable |
| AC Response Calculation |
Average |
| Features_Table |
Dustproof; Waterproof; Data Logging |
| Intrinsically Safe |
No |
| Maximum AC Current Measurement |
100 A |
| Maximum Operating Temperature |
122 Degrees F |
| Frequency Measurement Accuracy |
Not Applicable |
| Display Type |
LCD |
| Maximum DC Current Measurement |
Not Applicable |
| Removable Screen |
No |
| Capacitance Measurement Accuracy |
Not Applicable |
| Maximum AC Voltage Measurement |
1,000 V |
| Batteries Included |
Yes |
| Instrument Counts |
1,000 |
| Waterproof |
Yes |
| Maximum Resistance Measurement |
1,000 ohm |
| Thermal Imaging |
No |
| Dustproof |
Yes |
| Safety Rating_Background |
Fluke-T5-1000 NIST ; CAT IV 600V |
| Features Filter_Background |
Fluke-T5-1000 NIST Yes |
| Jaw Style |
Open-Jaw |
| Data Logging_BROAD |
Data Logging |
| Current Leakage Testing |
No |
| Instrument Safety Rating |
CAT III 1000V; CAT IV 600V |
| Waterproof_BROAD |
Waterproof |
| Maximum Storage Temperature |
140 Degrees F |
| Basic AC Current Accuracy |
3% +/- 3 counts |
| Minimum Operating Temperature |
14 Degrees F |
| Bluetooth Compatible |
No |
| Battery Access |
Yes |
| Resistance Measurement Accuracy |
Not Applicable |
| Calibration Certificate Included |
Yes |
| Maximum DC Voltage Measurement |
1,000 V |
| Basic AC Voltage Accuracy |
1.5% +/- 2 counts |
| Parameters Measured |
AC Current, AC Voltage, DC Voltage |
| Dustproof_BROAD |
Dustproof |
| Features |
Data Logging, Dustproof, Waterproof |
| Package Quantity |
1 |
