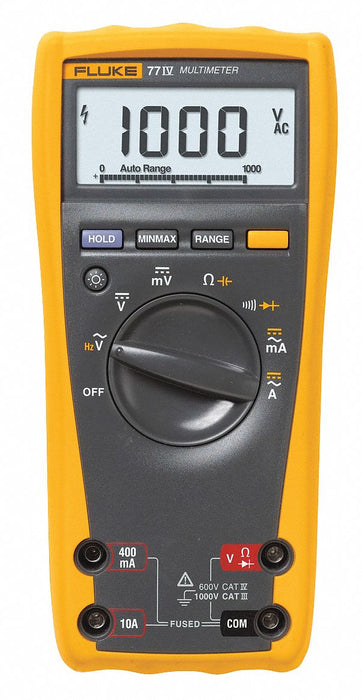

Fluke FLUKE-77-4/CWG Digital Multimeter, Avg, CAT IV 600V, 1, 000 V Max AC Volt Measurement, 6, 000 Instrument Counts

Fluke FLUKE-77-4/CWG Digital Multimeter, Avg, CAT IV 600V, 1, 000 V Max AC Volt Measurement, 6, 000 Instrument Counts

UPC: | Harmonization / Schedule B : 9030.32.0000

Country of Origin: United States | Shipping Weight: 1.58 lbs

$698.47 - $698.47
$698.47
$698.47 - $698.47
$698.47
AC Response Calculation Average
Audible Continuity Yes
Auto Power Off Yes
Auto Ranging Yes
Bar Graph Included Yes
Basic AC Current Accuracy 2.5% + 2
Basic AC Voltage Accuracy ±(2.0% + 2)
Basic DC Current Accuracy 1.5% + 2
Basic DC Voltage Accuracy ±0.30% + 1 Digit
Batteries Included Yes
Battery Access Yes
Battery Chemistry Alkaline
Battery Size 9V
Battery Voltage 9 V
Calibration Certificate Included Traceable without Data
Capacitance Measurement Accuracy ±(1.2% + 2)
Capacitance Measurement Resolution 1 nF
Current Leakage Testing No
Current Units A; mA
Data Hold Yes
Data Logging Yes
Diode Test Yes
Display Type Backlit LCD
Duty Cycle No Duty Cycle Test Included
Frequency Measurement Accuracy ±(0.1% + 1)
Frequency Measurement Resolution 0.01 Hz
Fuse Access Yes
Includes Battery; Test Leads
Instrument Counts 6,000
Instrument Safety Rating CAT IV 600V
Intrinsically Safe No
IP Rating Not Rated
Manufacturers Warranty Length Limited Lifetime
Minimum AC Current Measurement 0 A
Maximum AC Current Measurement 10 A
Minimum AC Voltage Measurement 0 V
Maximum AC Voltage Measurement 1,000 V
Minimum Capacitance Measurement 1 nF
Maximum Capacitance Measurement 9,999 uF
Minimum DC Current Measurement 0 A
Maximum DC Current Measurement 10 A
Minimum DC Voltage Measurement 0 V
Maximum DC Voltage Measurement 1,000 V
Minimum Frequency Measurement 0.01 Hz
Maximum Frequency Measurement 100 kHz
Minimum Operating Temperature 14 °F
Maximum Operating Temperature 122 °F
Maximum Resistance Measurement 50 megaohm
Minimum Storage Temperature -40 °F
Maximum Storage Temperature 140 °F
Min-Max-Avg Button Included Yes
Minimum/Maximum Memory Min/Max
Multimeter Style Full Size
Overall Height 1.69 in
Overall Width 3.54 in
Overall Depth 7.28 in
Pulse Width No
Removable Screen No
Resistance Measurement Accuracy ±0.5%
Software Included No
Special Features Battery Door; Ergonomic Overmolded Housing with Integrated Probe Holders
Standards ANSI/ISA S82.02.01; CSA C22.2-1010.1; UL; VDE
Testing Functions AC Current; AC Voltage; Capacitance; DC Current; DC Voltage; Frequency; Resistance
Thermal Imaging No
Weight 420 g
Includes Auto Sensing No Auto Sensing Included
Country of Origin USA
