| Item |

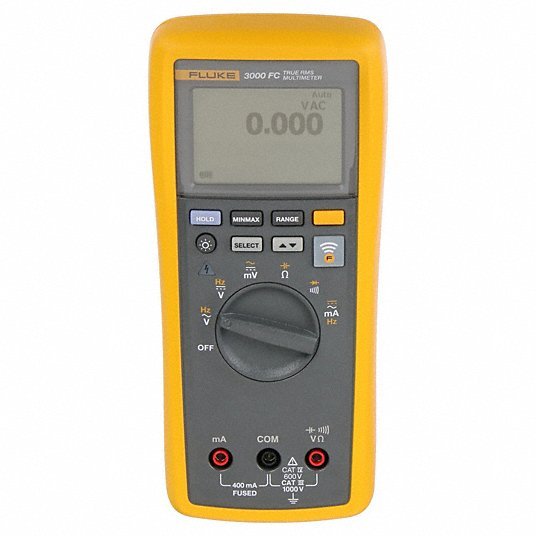

Digital Multimeter |
| Multimeter Style |
Full Size - General Features |
| Instrument Counts |
6000 |
| Basic DC Accuracy |
+/-0.09% of Reading +2 Digits |
| Instrument Safety Rating |
CAT III 1000V, CAT IV 600V |
| Max. AC Volts |
1,000 |
| Max. DC Volts |
1,000 |
| Max. AC Amps |
10 |
| Max. DC Amps |
10 |
| Audible Continuity |
Yes |
| Max. Ohms |
50 megohm |
| Temp. Range |
14 Degrees to 122 Degrees F |
| Display |
LCD |
| Interface |
Wireless |
| Standards |
CSA |
| Calibration Certificate Included |
No |
| AC Response |
45 Hz to 1 kHz |
| Peak Hold |
No |
| Min./Max. Memory |
yes |
| Duty Cycle |
No |
| Data Hold |
Yes |
| Auto Power Off |
Yes |
| Diode Test |
Yes |
| Series |
FLUKE (R) Fluke-3000FC |
| Auto Ranging |
Yes |
| Battery Type |
AA |
| Bar Graph |
Yes |
| Includes |

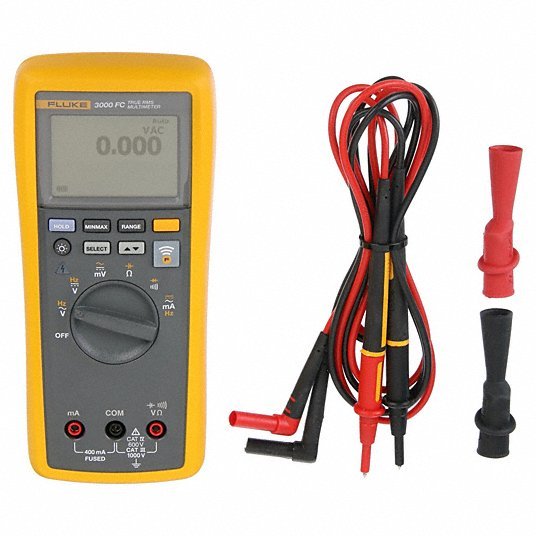

Alligator Clips, Batteries, Information Pack, Manual CD, Printed QSG, Test Leads |
| Instrument Frequency Counter Range |
1 Hz to 100 kHz |
| Data Logging |
Yes |
| Special Features |
Wireless Communication |
| Capacitance Range |
2 nF to 9999 uF |
| Intrinsically Safe |
No |
| Minimum DC Current Measurement |
0 A |
| Maximum Operating Temperature |
122 Degrees F |
| AC Voltage Measurement Resolution |
0.1 V |
| Minimum Operating Temperature |
-40 Degrees F |
| Capacitance Measurement Accuracy |
1.50 % |
| Maximum AC Voltage Measurement |
1,000 V |
| IP Rating |
IP54 |
| Minimum DC Voltage Measurement |
0 V |
| Basic AC Current Accuracy |
1.5% + 3 |
| Dustproof |
No |
| Removable Screen |
No |
| Multimeter Features |
Bluetooth-Compatible, Data Logging |
| Maximum Frequency Measurement |
100 kHz |
| Basic DC Current Accuracy |
0.5% + 3 |
| Minimum Frequency Measurement |
1 Hz |
| Thermal Imaging |
No |
| DC Current Measurement Resolution |
0.01 mA |
| Maximum DC Voltage Measurement |
1,000 V |
| Minimum Capacitance Measurement |
2 nF |
| Bluetooth Compatible |
Yes |
| Frequency Measurement Accuracy |
0.1% + 1 |
| Resistance Measurement Resolution |
Not Applicable |
| Maximum Capacitance Measurement |
9,999 uF |
| Waterproof |
No |
| Weight |
12 oz |
| Current Leakage Testing |
No |
| Display Type |
LCD |
| Basic AC Voltage Accuracy |
45 Hz to 500 Hz:1.0% + 3500 Hz to 1 kHz:2.0% + 3 |
| Bar Graph Included |
Yes |
| Parameters Measured |
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature (K) |
| Maximum Storage Temperature |
140 Degrees F |
| Minimum Temperature Measurement |
14 Degrees F |
| Software Included |
No |
| AC Current Measurement Resolution |
0.01 mA |
| Battery Chemistry |
Alkaline |
| Minimum Storage Temperature |
-40 Degrees F |
| Maximum Temperature Measurement |
122 Degrees F |
| Maximum AC Current Measurement |
400 mA |
| Maximum Resistance Measurement |
50 megaohm |
| Batteries Included |
Yes |
| Maximum DC Current Measurement |
400 mA |
| Basic DC Voltage Accuracy |
+/-0.09% + 2 Digits |
| Minimum/Maximum Memory |
Yes |
| Minimum AC Voltage Measurement |
0 V |
| Temperature Measurement Accuracy |
Not Applicable |
| Capacitance Measurement Resolution |
Not Applicable |
| Frequency Measurement Resolution |
0.01 Hz |
| Computer Interface Connection Type |
Wireless |
| Style |
Full Size |
| Battery Access |
Yes |
| AC Response Calculation |
TRMS |
| Minimum AC Current Measurement |
0 A |
| Resistance Measurement Accuracy |
+/-1.5% |
| DC Voltage Measurement Resolution |
Not Applicable |
| Package Quantity |
1 |
