| Item |

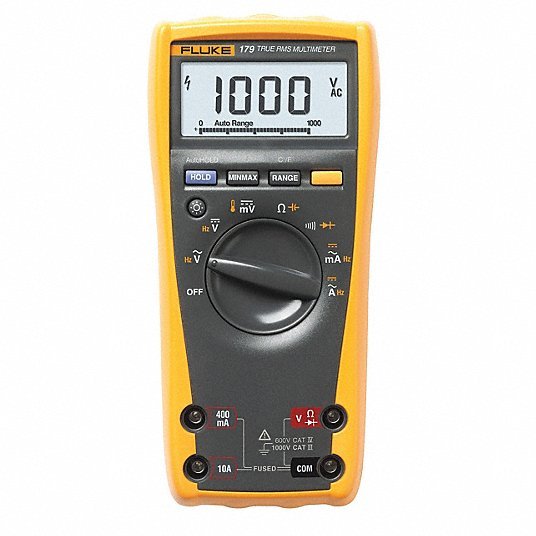

Digital Multimeter |
| Multimeter Style |
Full Size - General Features |
| Instrument Counts |
6000 |
| Basic DC Accuracy |
+/-0.09% of Reading +2 Digits |
| Instrument Safety Rating |
CAT III 1000V, CAT IV 600V |
| Max. AC Volts |
1,000 |
| Max. DC Volts |
1,000 |
| Max. AC Amps |
10 |
| Max. DC Amps |
10 |
| Audible Continuity |
Yes |
| Max. Ohms |
50 megohm |
| Display |
Backlit LCD |
| Standards |
CSA, EN 61010-1, TUV, UL, VDE Pending |
| Series |
FLUKE (R) Fluke-179 |
| Calibration Certificate Included |
Yes |
| NIST Certification By |
Techni-Tool |
| Instrument Frequency Counter Range |
0.01 Hz to 100 kHz |
| AC Response |
TRMS |
| Capacitance Range |
1 nF to 9999 uF |
| Auto Power Off |
Yes |
| Bar Graph |
Yes |
| Auto Ranging |
Yes |
| Battery Type |
9V Alkaline |
| Includes |
Battery, Mfr. No. 80BK Temperature Probe, Test Leads, Users Manual |
| Special Features |
Closed Case Calibration Through Front Panel, Ergonomic Case with Integrated Protective Holster |
| Temp. Range |
-40 Degrees to 752 Degrees F |
| Diode Test |
Yes |
| Data Hold |
Yes |
| Duty Cycle |
No |
| Min./Max. Memory |
Yes |
| Data Logging |
Yes |
| Intrinsically Safe |
No |
| Minimum Frequency Measurement |
0.01 Hz |
| Maximum DC Current Measurement |
10 A |
| Multimeter Features_Filter_BACKGROUND |
Data Logging FLK-179/CWG |
| Minimum DC Current Measurement |
0 A |
| Waterproof |
No |
| Resistance Measurement Accuracy |
+/-0.9% |
| Frequency Measurement Resolution |
0.01 Hz |
| AC Response Calculation |
TRMS |
| Maximum Frequency Measurement |
100 kHz |
| Minimum Capacitance Measurement |
1 nF |
| Bluetooth Compatible_ADDITIONAL FEATURES |
Data Logging |
| Bluetooth Compatible |
No |
| Thermal Imaging_ADDITIONAL FEATURES |
Data Logging |
| Current Leakage Testing |
No |
| AC Current Measurement Resolution |
Not Applicable |
| Removable Screen |
No |
| Minimum DC Voltage Measurement |
0 V |
| DC Current Measurement Resolution |
Not Applicable |
| Style |
Full Size |
| Maximum Operating Temperature |
122 Degrees F |
| Resistance Measurement Resolution |
Not Applicable |
| Thermal Imaging |
No |
| Temperature Measurement Accuracy |
+/-(1.0% + 10) |
| Minimum AC Current Measurement |
0 A |
| Maximum Capacitance Measurement |
9,999 uF |
| Maximum AC Voltage Measurement |
1,000 V |
| Safety Rating_BACKGROUND |
FLK-179/CWG CAT IV 600V |
| Basic DC Voltage Accuracy |
+/-0.09% + 2 Digits |
| Maximum AC Current Measurement |
10 A |
| Minimum AC Voltage Measurement |
0 V |
| Basic AC Current Accuracy |
+/-(1.5% + 3) |
| Battery Chemistry |
Alkaline |
| MERCH HOLD - DMM Features |
No No No No No No No |
| Capacitance Measurement Accuracy |
+/-(1.2% + 2) |
| Minimum/Maximum Memory |
Yes |
| Bar Graph Included |
Yes |
| Software Included |
No |
| Basic AC Voltage Accuracy |
+/-(1.0% + 3) |
| Battery Voltage |
9V |
| Maximum Resistance Measurement |
50 megaohm |
| Min-Max-Avg Button Included |
Yes |
| Multimeter Features |
Data Logging |
| Batteries Included |
Yes |
| Minimum Operating Temperature |
14 Degrees F |
| Parameters Measured |
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature (K) |
| DC Voltage Measurement Resolution |
Not Applicable |
| Frequency Measurement Accuracy |
+/-(0.1% + 1) |
| Basic DC Current Accuracy |
+/-(1.0% + 3) |
| Maximum Temperature Measurement |
752 Degrees F |
| Capacitance Measurement Resolution |
1 nF |
| Battery Access |
Yes |
| Display Type |
Backlit LCD |
| Weight |
420 g |
| MERCH HOLD ACCURACY |
+/-0.09% + 2 Digits +/-(1.0% + 3) +/-(1.0% + 3) +/-(1.5% + 3) +/-(1.2% + 2) +/-(0.1% + 1) +/-(1.0% + 10) +/-0.9% |
| Maximum Storage Temperature |
140 Degrees F |
| Safety Rating_SUBHEAD |
CAT III 1000V; CAT IV 600V |
| AC Voltage Measurement Resolution |
Not Applicable |
| Dustproof |
No |
| Dustproof Waterproof_ADDITIONAL FEATURES |
Data Logging |
| Minimum Storage Temperature |
-22 Degrees F |
| Intrinsically Safe - ADDITIONAL FEATURES |
Data Logging |
| Minimum Temperature Measurement |
-40 Degrees F |
| Computer Interface Connection Type |
None |
| FEATURES HOLD_MERCH |
Backlit LCD Yes Yes |
| NIST Certification By Manufacturer |
Techni-Tool |
| Maximum DC Voltage Measurement |
1,000 V |
| Multimeter Features_COMBINED |
Data Logging |
| Fuse Access |
Yes |
| Data Logging - New_BROAD |
Data Logging |
| Package Quantity |
1 |
