| Digital/Analog |
Digital |
| Max. AC Amps |
99.9 mA |
| Clamp Meter Jaw Style |
Clamp On |
| Max. DC Volts |
30 V |
| Jaw Capacity |
0.2 in (5 mm) |
| Temp. Range |
14 Degrees to 122 Degrees F |
| Display |
Dual Backlit |
| Jaw Opening |
0.2 in |
| Max. DC Amps |
99.9 mA |
| Max. AC Volts |
30 V |
| Auto Ranging |
Yes |
| AC Current Accuracy |
+/-2.0% + 5 Digits |
| Battery Type |
AA |
| Operating Temp. |
14 Degrees to 122 Degrees F |
| Data Hold |
Yes |
| AC Response |
TRMS |

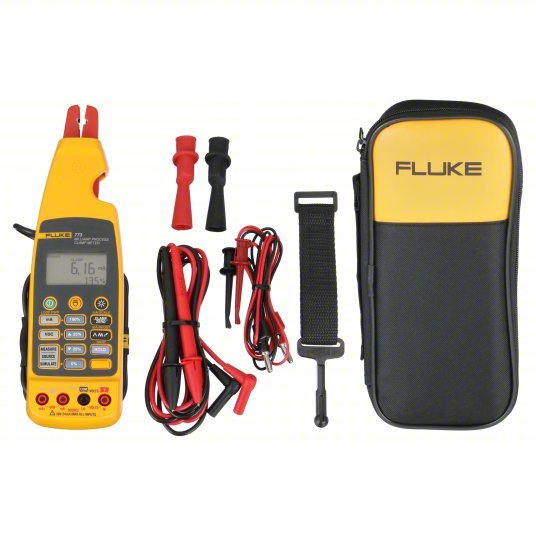

| Includes |
Detachable Clip, Hanging Tool with Hook, Instruction Manual, Loop Strap, Mini Hook Test Leads, Test Leads |
| Special Features |
Non-Contact DC mA |
| Counts |
2,400, 99.9 |
| Standards |
CE, CSA, EN61326-1 |
| Data Logging |
Yes |
| Thermometer Type |
Type K Thermocouple |
| Non-Contact Voltage Detector |
Yes |
| Audible Continuity |
No |
| Calibration Certificate Included |
No |
| Battery Access |
Yes |
| Batteries Included |
Yes |
| Maximum DC Voltage Measurement |
30 V |
| Basic DC Current Accuracy |
0.2 % + 5 counts (0 to 24.00 mA)1 % + 5 counts (21.0 mA to 100.0 mA) |
| Maximum AC Current Measurement |
100 mA |
| Waterproof |
No |
| Removable Screen |
No |
| Parameters Measured |
AC Current, DC Current, DC Voltage, Temperature (K) |
| Thermal Imaging |
No |
| Current Leakage Testing |
No |
| Display Type |
Dual Backlit |
| Instrument Counts |
2,400 |
| Dustproof |
No |
| Battery Chemistry |
Alkaline |
| Maximum DC Current Measurement |
100 mA |
| IP Rating |
IP40 |
| Jaw Style |
Clamp-Jaw |
| Intrinsically Safe |
No |
| AC Response Calculation |
TRMS |
| Minimum Operating Temperature |
14 Degrees F |
| Basic AC Current Accuracy |
0.2 % + 5 counts (0 to 24.00 mA)1 % + 5 counts (21.0 mA to 100.0 mA) |
| Bluetooth Compatible |
No |
| DC Voltage Measurement Resolution |
0 V |
| Maximum Storage Temperature |
140 Degrees F |
| Basic DC Voltage Accuracy |
0.2 % + 2 counts |
| Maximum Operating Temperature |
122 Degrees F |
