| Includes |

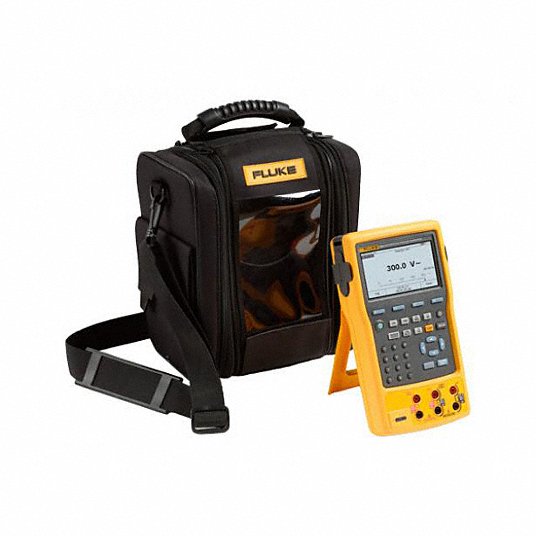

(2) AC280 Hook Clips, (3) Extended Tooth Alligator Clips, (3) TP220 Test Probes, 754HHC HART Communications Cable, Battery Charger, Carrying Case, USB Cable |
| Display |
Graphical |
| Standards |
ASNI/ISA S82.01-1994, CAN/CSA C22.2 No 1010.1-92, EN 610-1:1993, UL3111 |
| Interface |
USB |
| Loop Supply Voltage |
26 V |
| RTD Type |
Cu10 (427), Ni120 (672), Pt100 (385), Pt100 (3916), Pt100 (3926), Pt1000 (385), Pt200 (385), Pt500 (385) |
| Powered By |
Rechargable Battery Pack |
| Current Measurement Range |
0 to 110mA DC |
| RTD Temperature Range |
-200 Degrees to 800 Degrees C |
| Frequency Measurement Range |
0 to 50 kHz |
| Max. Loop Current |
24 mA |
| Thermocouple Temperature Range |
-250 Degrees to 2500 Degrees C |
| Frequency Source Range |
0.01 to 50 kHz |
| Calibration Certificate |
NIST |
| Source Current |
0 to 22mA DC |
| Intrinsically Safe |
No |
| Insulation Category |
Cat II 300V |
| Measurement Functions |
Current, Frequency, Resistance, TC and RTD, Voltage (AC and DC) |
| External Pressure Range |
Dependent On Pressure Module |
| Thermocouple Type |
B, BP, C, E, J, K, L, N, R, S, T, U, XK |
| Resistance Source |
0 to 10 kilohm |
| Basic DC Accuracy |
+/- 0.05% + 0.05V |
| Voltage Measurement Range |
0 to 300V AC/V DC |
| Resistance Measurements |
0 to 10 kilohm |
| Pressure Modules |
29 Ranges |
| Source Voltage |
0 to 15V DC |
| Shop By |
Hot Buys |
| Loop Current - Maximum |
25 mA |
| Communication Protocol |
HART |
| IP Rating |
IP52 |
| Source Current - Maximum |
22 mA |
| Resistance Measurement - Minimum |
1 kiloohm |
| Thermocouple Temperature - Maximum |
1,472 Degrees F |
| Current Measurement - Maximum |
110 mA |
| Frequency Measurement - Minimum |
11.01 kHz |
| Source Voltage - Minimum |
1 V |
| Frequency Measurement - Maximum |
50 kHz |
| Resistance Measurement - Maximum |
10 kiloohm |
| Thermocouple Temperature - Minimum |
482 Degrees F |
| Source Resistance - Minimum |
1 kiloohm |
| Source Voltage - Maximum |
15 V |
| Current Measurement - Minimum |
30 mA |
| Battery Chemistry |
Lithium Ion |
| Voltage Measurement - Minimum |
3 V AC/DC |
| RTD Temperature - Maximum |
1,472 Degrees F |
| Parameters Measured |
AC Current, AC Voltage, DC Current, DC Voltage, Frequency, Resistance, RTD, TC |
| Includes Batteries |
Batteries Included |
| Source Frequency - Maximum |
50 kHz |
| Source Resistance - Maximum |
10 kiloohm |
| Source Frequency - Minimum |
22 kHz |
| Digital Display Screen Type |
LCD |
| Intrinsic Safety |
Not Specified Intrinsically Safe |
| Voltage Measurement - Maximum |
300 V AC/DC |
| RTD Temperature - Minimum |
-328 Degrees F |
| Source Current - Minimum |
0 mA |
| Calibration Certificate Type |
NIST |
