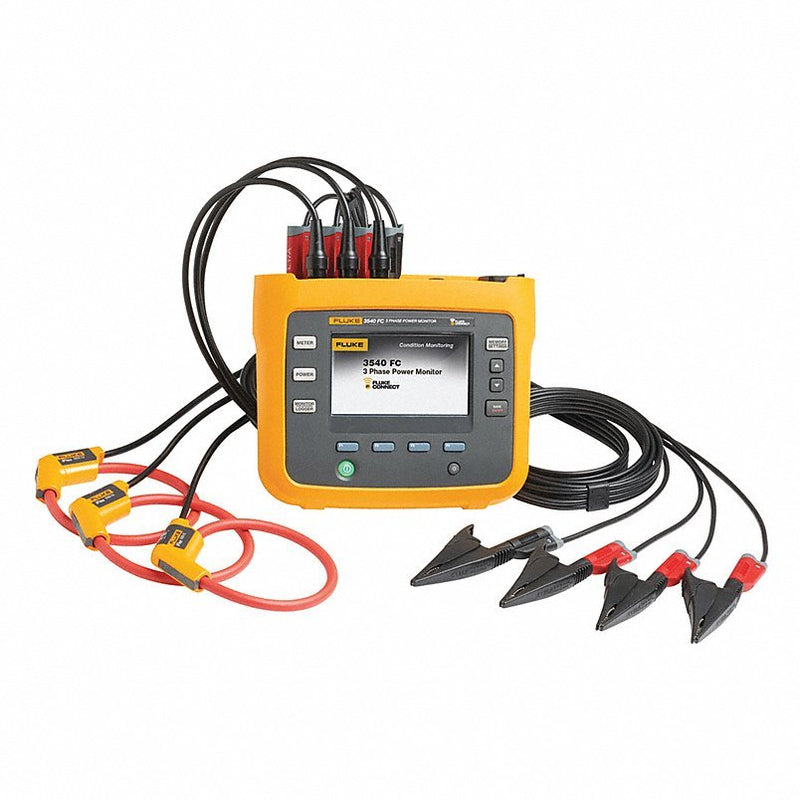

FLUKE 3540 FC KIT Power/Condition Monitor: CAT II 1000V/CAT III 600V/CAT IV 300V, For Single/Split/Three Phase

FLUKE 3540 FC KIT Power/Condition Monitor: CAT II 1000V/CAT III 600V/CAT IV 300V, For Single/Split/Three Phase

UPC: 095969863025 | Harmonization / Schedule B : 9030.39.0100

Country of Origin: Romania | Shipping Weight: 7.8 lbs

$6,204.01 - $6,204.01
$6,204.01
$6,204.01 - $6,204.01
$6,204.01
Power/Condition Monitor, Calibration Certificate None, Current Channels 3, For Phase Single; Split; Three, Includes (2) Test Lead Sets, (3) Current Clamps, (4) Alligator Clips, Cable Assembly, Cable Marker Set, Line Cord, Magnetic Hanger Kit, Software, Voltage Test Lead, Wireless Nano Adapter, Maximum AC Current Measured 1,000 A, Peak Capture Yes, Power Factor -1 to 1, Voltage Channels 4, Calibration Frequency 42.5 to 69 Hz, Communication Protocol USB-A, Wi-Fi, Crest Factor Less Than 4
Item Power/Condition Monitor
Sampling Rate 10.24kHz
Phase 3
Includes (2) Test Lead Sets, (3) Current Clamps, (4) Alligator Clips, Cable Assembly, Cable Marker Set, Line Cord, Magnetic Hanger Kit, Software, USB Memory Stick, Voltage Test Lead, Wireless Nano Adapter
Max. Watts 1.56GW
Kit Current Capability 1500A
Display Color LCD Touch Screen
Storage 2 GB
AC Response 7 kHz
Max. DC Amps No Range
Crest Factor Less Than 4
Max. VA 1000TVA
Current Accuracy +/-0.1%
Calibration Frequency 42.5 to 69 Hz
Data Logging Yes
Peak Capture Yes
Voltage Channels 4
Max. AC Voltage 1,000
Safety Rating CAT III 1000V, CAT IV 600V, IEC 61010-1, IEC 61010-2-031
Display Resolution 480 x 272
Max. AC Amps 1,000 A
Harmonic Capture Range 1.5 to 49.5th
Voltage Accuracy +/-10%
Power Factor -1 to 1
Calibration Certificate None
Current Channels 3
Communication Protocol USB-A, Wi-Fi
Channels (Voltage/Current) 4/3
Maximum AC Current Measured 1,000 A
For Phase Single; Split; Three
IP Rating IP50
Package Quantity 1
