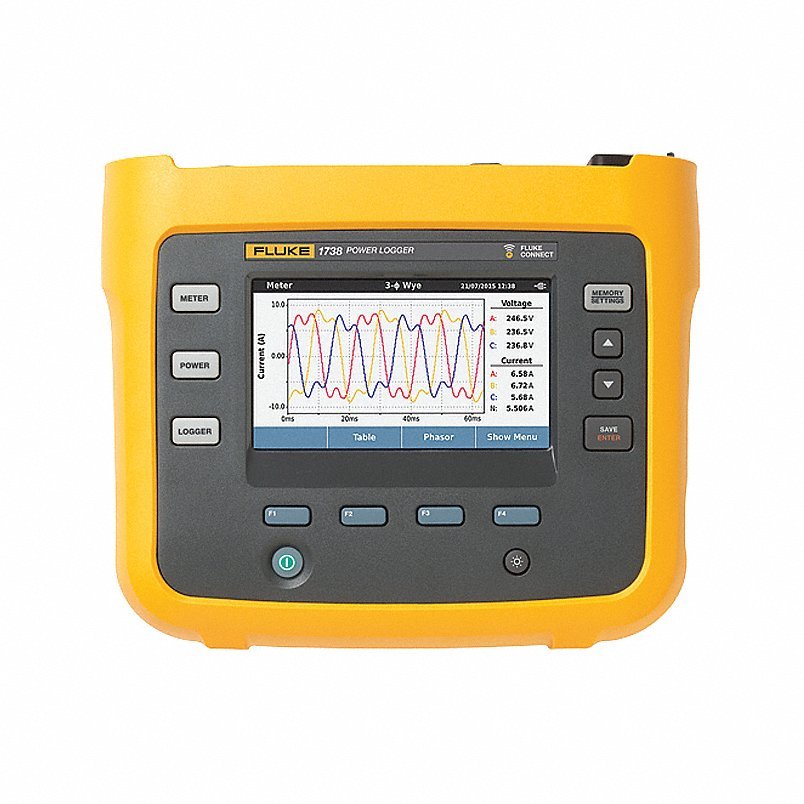

FLUKE-1738/EUS/WWG Power Logger Kit: CAT III 1000V/CAT IV 600V, 6,000 A Max AC Current Measured, 4 Volt Channels

FLUKE-1738/EUS/WWG Power Logger Kit: CAT III 1000V/CAT IV 600V, 6,000 A Max AC Current Measured, 4 Volt Channels

UPC: 095969810784 | Harmonization / Schedule B : 9030.39.0100

Country of Origin: | Shipping Weight:

$9,235.74 - $9,235.74
$9,235.74
$9,235.74 - $9,235.74
$9,235.74
Power Logger Kit, Calibration Certificate NIST, Current Channels 4, For Phase Single; Split; Three, Includes (3) Line Cords, (4) 1500 A Flexible Current Probes, (4) Alligator Clips, Color Coding Set, Fluke 1738, Magnetic Hanging Strap, Soft Case, Voltage Test Leads, Maximum AC Current Measured 6,000 A, Peak Capture No, Power Factor -1 to 1, Voltage Channels 4, Calibration Frequency 42.5 to 69 Hz, Communication Protocol Bluetooth, USB-A, USB-Mini, Wi-Fi, Crest Factor Less Than 3
Item Power Logger Kit
Sampling Rate 10.24kHz
Phase 3
Includes (3) Line Cords, (4) 1500A Flexible Current Probes, (4) Alligator Clips, Color Coding Set, Fluke 1738, Soft Case, USB Flash Drive Containing Fluke Energy Analyze Plus Software, Voltage Test Leads
Max. Watts 1000TW
Kit Current Capability 1500A
Display Color LCD Touch Screen
Voltage Channels 4
Harmonic Capture Range 0th
Min. Transient Duration 20uS
Voltage Accuracy +/-0.2%
Max. VA 1000TVA
Display Resolution 480 x 272
Data Logging Yes
Storage 2 GB
AC Response 5 kHz
Current Accuracy +/-1%
Power Factor -1 to 1
Peak Capture No
Max. AC Voltage 1,000
Max. AC Amps 6,000 A
Calibration Frequency 42.5 to 69 Hz
Safety Rating CAT III 1000V, CAT IV 600V
Calibration Certificate NIST
Crest Factor Less Than 3
Current Channels 4
Features Included Event Waveform Capture
Channels (Voltage/Current) 4/4
Current Probes Included i17XX-flex1500 Current Probes
Communication Protocol Bluetooth, USB-A, USB-Mini, Wi-Fi
Maximum AC Current Measured 6,000 A
For Phase Single; Split; Three
IP Rating IP50
Package Quantity 1
