| Max. AC Volts |
1,000 |
| Max. DC Volts |
1,000 |
| Max. AC Amps |
400 mA |
| Max. DC Amps |
400 mA |
| Resistance Range |
0 to 50 megohm |
| Interface |
Bluetooth |
| Auto Power Off |
Yes |
| Display |
Digital LCD with Backlit |
| Calibration Certificate |
None |
| Includes |
Alligator Clip, Hard Case, K-Type Thermocouple, Remote Probe, Test Leads |
| Insulation Resistance Range |
0.01 megaohm to 2 gigohm |
| Temp. Range |
-40 Degrees to 998 Degrees F |
| Power Source |
Battery |
| Features |

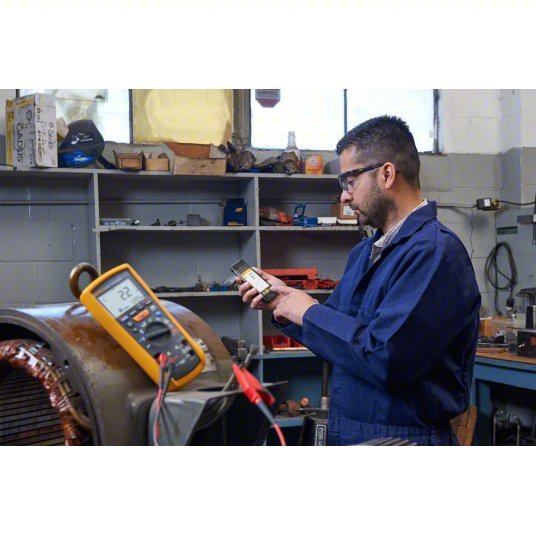

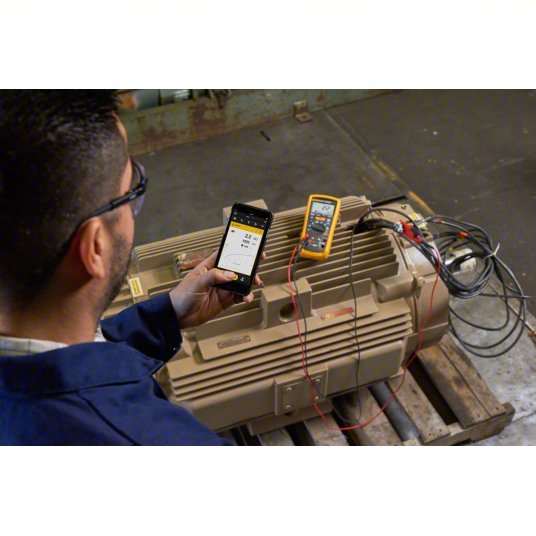

Insulation Resistance Test Results Wirelessly with Your Smartphone |
| Data Logging |
6000 |
| Auto Ranging |
Yes |
| Output Test Voltage |
50/100/250/500/1000V DC |
| Live Circuit Detection |
Greater Than 30V |
| Capacitance Range |
1000 nF to 9999 uF |
| Diode Test |
Yes |
| Safety Rating |
CAT III 1000V, CAT IV 600V |
| Standards |
IEC 61326-1, IEC 61326-2-2 CISPR 11 |

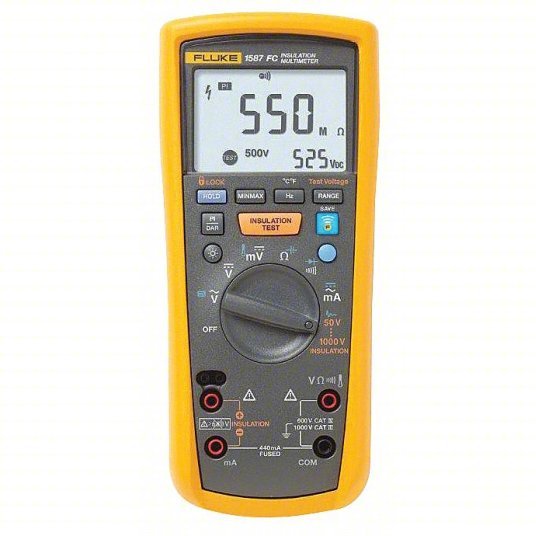

| Meter Type |
Insulation Multimeter |
| Product Type |
Tester Only |
| Display Type |
Digital |
| Parameters Measured |
Insulation Resistance |
| Communication Protocol |
Bluetooth |
| CAT Safety Rating |
CAT III 1000V, CAT IV 600V |
| Megohmmeter Features |
Bluetooth-Compatible |
| Number of Digits |
5 |
| Number of Records Stored |
6,000 |
| Operating Voltage |
1,000V |
| Bluetooth Compatible |
Yes |
| Includes Batteries |
Yes |
| IP Rating |
IP40 |
| Capacitance Auto Discharge |
Yes |
| Maximum Operating Temperature |
998 Degrees F |
| PI/DAR Testing |
Yes |
| Dustproof |
No |
| Leakage Current Range |
1.0 mA |
| Minimum AC Current Measured |
0.1 mA |
| Testing Functions |
Insulation |
| Minimum AC Voltage Measured |
600 mV |
| Maximum AC Current Measured |
400 mA |
| Data Logger |
Yes |
| Input Impedance |
10 megaohm |
| Battery Chemistry |
Alkaline |
| Maximum Insulation Resistance |
2 gigohm |
| Greater Than 30V Warning |
Yes |
| Number of Batteries Required |
4 |
| Pass/Fail Selection Limits |
No |
| Insulation Resistance Resolution |
0.01 megaohm to 2 gigaohm |
| Timed Ramp Voltage Test |
Yes |
| USB Data Download Included |
No |
| Test Voltage |
1,000V DC, 100V DC, 250V DC, 500V DC, 50V DC |

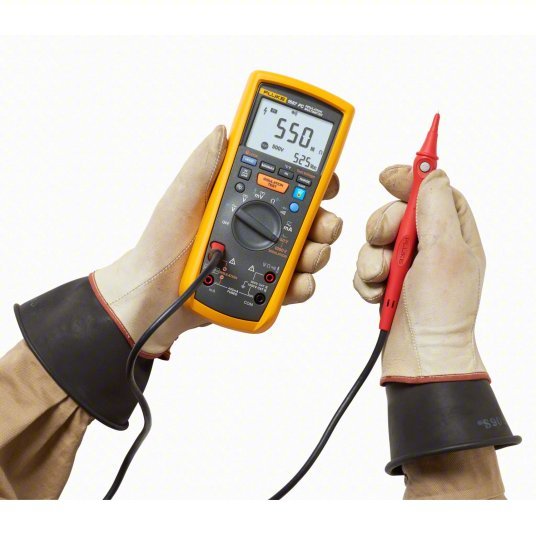

| Remote Test Probe Included |
Yes |
| Backlit Digital Display |
Yes |
| Minimum Insulation Resistance |
0.01 megaohm |
| Test Current |
400 mA |
| Insulation Limit Alarm |
No |
| Minimum Capacitance Measured |
1,000 nF |
| Minimum DC Voltage Measured |
6 V |
| Maximum Capacitance Measured |
9,999 nF |
| Maximum DC Voltage Measured |
1,000 V |
| Minimum Operating Temperature |
-40 Degrees F |
| Maximum DC Current Measured |
400 mA |
| Waterproof |
No |
| Maximum AC Voltage Measured |
1,000 V |
| Resistance Accuracy |
+/-3.00% +5 digits |
| Display Screen Type |
LCD |
| Live Circuit Voltage |
Greater Than30V |
