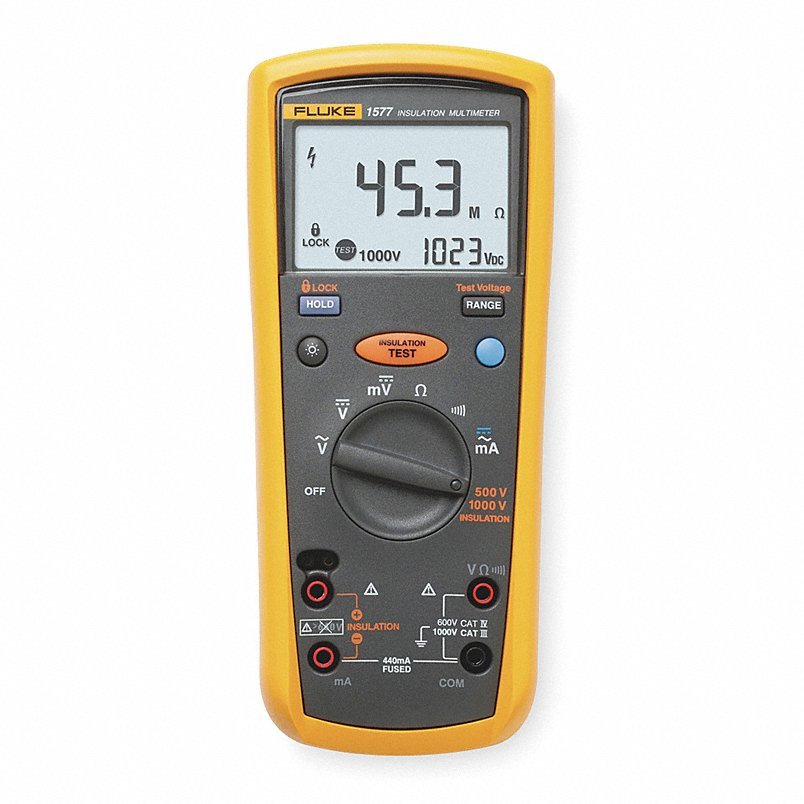

FLUKE-1577 Insulation Tester 0.1 megaohm to 600 megaohm, CAT III 1000V/CAT IV 600V, Battery, Digital

UPC: 095969319799 | Harmonization (Schedule B): 9030.31.0000

Original price $1,052.99 - Original price $1,052.99
Original price
$1,052.99 - $1,052.99
Current price $1,052.99

Insulation Tester, Backlit Digital Display Yes, Bluetooth Compatible No, CAT Safety Rating CAT III 1000V, CAT IV 600V, Calibration Certificate None, Capacitance Auto Discharge Yes, Display Type Digital, Dustproof No, Greater Than 30V Warning Yes, Includes Alligator Clip, Hard Case, Remote Probe, Test Leads, Insulation Limit Alarm No, Maximum Insulation Resistance 600 megaohm, Minimum Insulation Resistance 0.1 megaohm, PI/DAR Testing No, Parameters Measured Insulation Resistance

Item Insulation Tester
Output Test Voltage 500/1000V DC
Insulation Resistance Range 0.1 megohm to 600 megohm
Live Circuit Detection 1000V AC/V DC
Resistance Range 0 to 50 megohm
Display Multiline LCD
Power Source Battery
Max. DC Volts 1,000
Includes Remote Probe, Test Leads, Alligator Clips, Hard Case, 4 AA Batteries, and Instructions
Max. DC Amps 400 mA
Auto Ranging Yes
Max. AC Amps 400 mA
Safety Rating CAT III 1000V, CAT IV 600V
Auto Power Off Yes
Max. AC Volts 600
Meter Type Insulation Tester
Backlit Digital Display Yes
Insulation Resistance Resolution 0.1 to 600 megaohm
Operating Voltage 1,000V
Display Type Digital
Timed Ramp Voltage Test Yes
PI/DAR Testing No
Minimum AC Voltage Measured 0.1 mV
Standards IEC 61010-1, IEC 61010-2-033
Test Voltage 1,000V DC, 500V DC
Parameters Measured Resistance
Safety Rating_Subhead CAT III 1000V; CAT IV 600V
Number of Batteries Required 4
Maximum Operating Temperature 131 Degrees F
Minimum AC Current Measured 0.01 mA
Power Source_Org Design Only Battery Operated
Maximum AC Voltage Measured 1,000 V
Waterproof No
Live Circuit Voltage Greater Than30V
Maximum Insulation Resistance 600 megaohm
Greater Than 30V Warning Yes
Minimum Operating Temperature -4 Degrees F
Product Type Tester Only
Pass/Fail Selection Limits No
Maximum AC Current Measured 400 mA
Capacitance Auto Discharge Yes
IP Rating IP40
Display Screen Type LCD
Resistance Accuracy +/-1.20% +2 digits
Dustproof No
Number of Digits 2
Minimum Insulation Resistance 0.1 megaohm
Maximum DC Voltage Measured 1,000 V
CAT Safety Rating CAT III 1000V, CAT IV 600V
Testing Functions Insulation
Battery Chemistry Alkaline
Remote Test Probe Included No
USB Data Download Included No
Test Current 1 mA
Maximum DC Current Measured 400 mA

Includes Batteries Yes
Megohmmeter Features Standard
Insulation Limit Alarm No
Bluetooth Compatible No
Maximum Operating Temperature 131 Degrees F
Package Quantity 1
