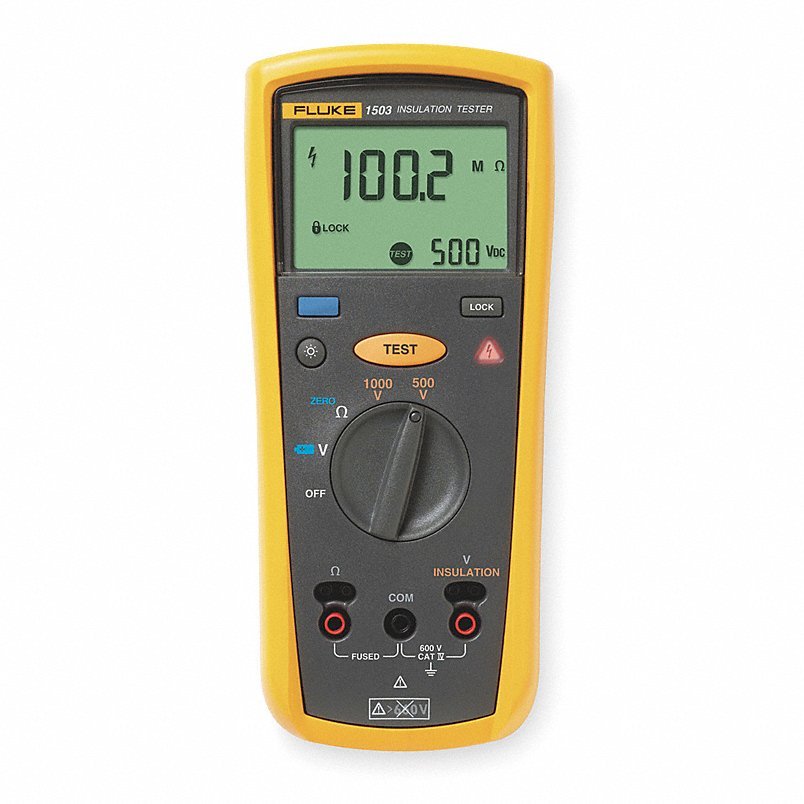

FLUKE 1503 Insulation Resistance Tester 0.01 kiloohm to 20 kiloohm, CAT IV 600V

by Fluke
$821.90
SKU KV1BE68
Megohmmeter, Backlit Digital Display Yes, Bluetooth Compatible No, CAT Safety Rating CAT IV 600V, Calibration Certificate None, Capacitance Auto Discharge Yes, Display Type Digital, Dustproof No, Greater Than 30V Warning Yes, Includes Clips PN 1958654 (Red) and PN 1958646 (Black), Holster and Remote Probe, TL224 Test Lead, TP74 Test Probes, Insulation Limit Alarm No, Maximum Insulation Resistance 20 kiloohm, Minimum Insulation Resistance 0.01 kiloohm, PI/DAR Testing No
Item Megohmmeter
Output Test Voltage 500/1000V DC
Insulation Resistance Range 0.1 to 2000 megohm
Accuracy +/-2% + 3 Digits
Live Circuit Detection Greater Than 30V
Resistance Range 0 to 20 kilohm
Display Multiline LCD
Features Save Battery Power with Auto Power Off, Read Measurements Easily with Large, Backlit Display, CAT IV 600 V Overvoltage Category Rating for Added User Protection, Remote Probe, Test Leads, Probes and Alligator Clips Included with Each Tester, Accepts Optional Fluke TPAK Magnetic Hanging SysteM Ohms to Free Your Hands for Other Work, 4 AA Alkaline Batteries (NEDA 15 A or IEC LR6) for At Least 1000 Insulation Tests
Power Source Battery
Earth Ground Resistance Range 0.01 to 20 kilohm
Includes Remote Probe, Test Leads, Test Probes, Alligator Clips, Meter Boot, Batteries and Instructions
Auto Power Off Yes
Safety Rating Cat IV 600V
Product Type Tester Only
Minimum Operating Temperature -4 Degrees F
Safety Rating_Subhead CAT IV 600V
Minimum Insulation Resistance 0.01 kiloohm
Waterproof No
Resistance Accuracy +/-1.50% +3 digits
Dustproof No
Includes Batteries Yes
Capacitance Auto Discharge Yes
Pass/Fail Selection Limits No
Maximum DC Voltage Measured 600 V
Display Type Digital
Maximum Insulation Resistance 20 kiloohm
Test Current 1 mA
Test Voltage 1,000V DC, 500V DC
Timed Ramp Voltage Test No
Input Impedance 3 megaohm
Insulation Resistance Resolution 01 ohm to 20 kilohm
Minimum DC Voltage Measured 0.1 V
PI/DAR Testing No
IP Rating IP40
Operating Voltage 600V AC/DC
Power Source_Org Design Only Battery Operated
Insulation Limit Alarm No
Maximum AC Voltage Measured 600 V
USB Data Download Included No
UPC 095969319812
Megohmmeter Features Standard
Remote Test Probe Included Yes
Testing Functions Insulation
Number of Batteries Required 4
Greater Than 30V Warning Yes
Battery Chemistry Alkaline
Parameters Measured Resistance
CAT Safety Rating CAT IV 600V
Display Screen Type LCD
Standards ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 NO. 61010-1-04, IEC/EN 61010-1
Bluetooth Compatible No
Live Circuit Voltage Greater Than30V
Number of Digits 3
Maximum Operating Temperature 131 Degrees F
Backlit Digital Display Yes
Maximum Operating Temperature 131 Degrees F
Package Quantity 1
